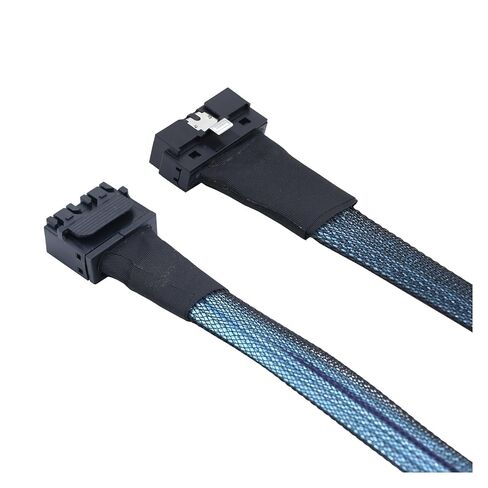

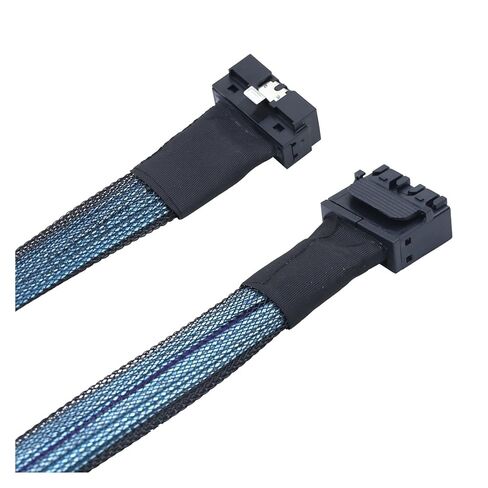

PCI-E Ultraport Slimline S-AS 4.0 LP Low profile SFF-8654 8i 74pin to 8I 2 in 1 S-AS HD SFF-8643 36Pin Server internal connection Cable
Cable Length: 0.5M
Wire Size: 30AWG, Tinned Copper, OD: 0. 9*2.3,MM
Lock to Mating Part: With Latch
Plating: Au 15u' min over Ni 100u' min
Color: Cable , Over Black
Flammability: Cable Horizontal flame, PCB 94V-0, PBT 94V-0
Applications
Data/Communications
1. (Redundant Array of Independent Disks)
2. Workstations
3. Rack-mount server
4. Servers
5. Storage rack
Features and Benefits
1. Transmission rate 12Gbps.
2. Meet S-AS 4.0 specification.
Mechanical Performance
Mating Force and Unmating Force
Condition: EIA 364-13. Insert and extract at a speed of
25mm/minute.
Mating Force: 55 N maximum for S-AS.
Unmating Force: 49 N maximum for S-AS.
Electrical Performance
1. Current Rating
0.5Amperes maximum per pin when mated.
2. Voltage Rating
32VAC per when mated or unmated.
3. Resistance
32mohm max. initial, 15mohm maximum after stress test.
4. Dielectric Withstanding Voltage
500 VAC for 1 minute no breakdown.
5. Insulation Resistance
1000 Mohm minimum.
Signal Integrity
1. Mated Connector Impedance: 85 Ω±15%
2. Cable Absolute Impedance: 85 Ω±10%
3. Cable Pair Matching:±5 Ω
4. Common Impedance: 25 to 40 ohms
5. Insertion loss: -6dB maximum up to 4.5Ghz;
6. Crosstalk: -26 dBup to 6Ghz;
Product Compliance
The Product photo
Workshop photo
Model Number : 8654 8i LP-8643 8I
TY>pe : / S-AS / InfiniBand Cables
