1. The predetermined baud rate of the relay is 9600bps, and the Baud rate can be selected by means of bridges 2400 4800 19200bps.
2. With open, close, jog, autobloqueo, interblock, delay, interblock between the two channels, 7 work modes.
3. 12 Optically isolated entry ports (NPN is active at low level) and the entry/output ratio can be configured as associated (default) and not associated through commands.
4. The maximum load is 10 A/250 V CA, 10 A/125 V CA, 10 A/30 V CC, 10 A/28 V CC, 10 A/12 V CC.
5. Strict quality control and quality guarantee, high safety factor, can be used calmly.

Specs:
Article type: relay module
Operating voltage: 24 V CC
Operating current: 14 ma waiting
1 relay conducts 44ma
2 relays drive 69ma
3 relay drives 95ma
4 relays drive 121m
5 relays drive 149ma
6 relays drive 175ma
7 relays drive 199ma
8 relays light 226, etc.
Ports: 12 opically isolated entry ports (NPN is active at low level). The input/output ratio can be configured to be associated (default) and not associated with instructions.
7 Work modes: open, close, jog, autobloqueo, interblock, delay, interlock between two channels
The predetermined value of baud rate: 9600bps, can select the 2400 4800 BPS BAUDOS rate through the line.

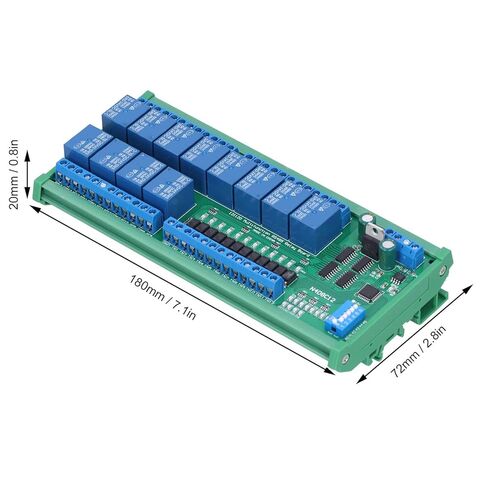

Size: approx. 180 x 72 x 20 mm/7.1 x 2.8 x 0.8 inches (circuit plate);
Weight: approx. 190 g/6.7 oz (circuit plate);
Weight: approx. 318 g / 11.2 OZ (box with rail)
Maximum load: 10A/250VAC, 10A/125VAC, 10A/30VDC, 10A/28VDC, 10A/12VDC

Package Included:
1 relay module.
