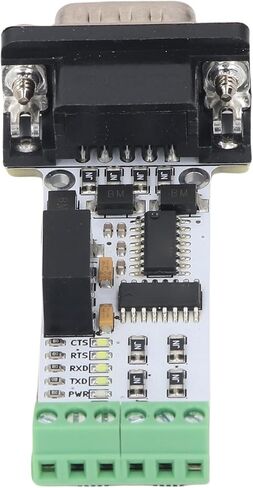

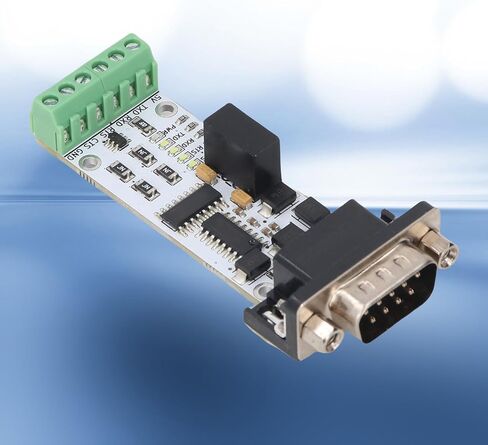

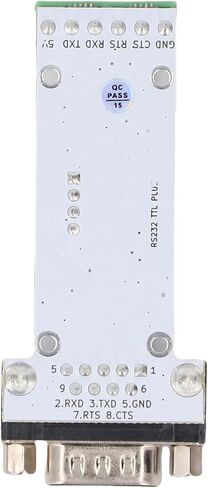

ciciglow TTL Serial Port Converter Module with Overcurrent ESD Guard, Stable Performance with Original SP3232, DB9 Male Interface, Magnetic Isolation Circuits

KWD 6
Brand
ciciglow
Category
Internal Cards
Weight
33 g
– 1 +

Special Features

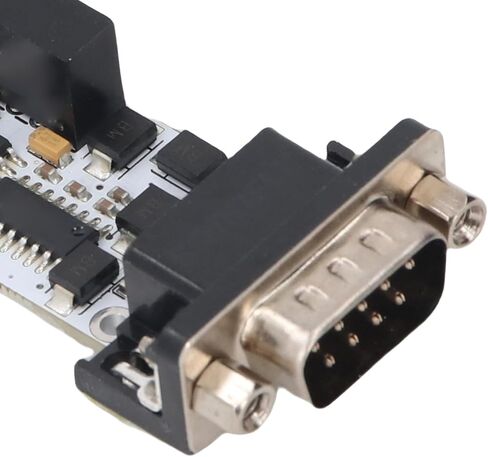

  • Reliable Performance: Stable performance with original SP3232. Features DB9 male interface and 3.5mm screw terminal, smooth insertion and removal, sturdy and reliable.
  • Isolation Features: To ensure safe operating, the TTL side requires power with independent power and magnetic isolation circuits, providing enhanced safety and stability for sensitive electronic communications.
  • Overcurrent Guard: The TTL terminal includes TTL RXD, TXD, RTS, and CTS pins, with overcurrent guard, enhancing its anti shock capability and ensuring reliable operating even in challenging conditions.
  • Safety Features: The for RS232 side includes RXD, TXD, RTS, and CTS pins, with overcurrent and electrostatic discharge guard, ensuring device safety and reliable performance in various environments.
  • Durability: This for RS232 to TTL converter module offers superior durability and long lasting performance, ensuring it withstands the demands of various environments and applications.

Description

Specification:
Item Type: Serial Port Converter Module
Material: PCB
Baud Rate Support Range: ≤150K bps
PWR Light: Green, Power Indicator Light
TXD Light: White, TTL Data Transmission Indicator Light, Data : for RS232-> TTL
RXD Light: White, TTL Data Reception Indicator Light, Data : TTL-> for RS232
RTS Light: White, Send Request Indicator Light, Used to Indicate that the Device is Ready to Receive Data
CTS Light: White, Send Allow Indicator Light, Used to Determine if Data Can be Sent to the Other Party
Supply Voltage: 5V
TTL Output Signal : 5V (same as supply voltage)
Input Signal : 5V (compatible with 3.3V signal input)

PackageList:
1 x Serial Port Converter Module
1 x

Note:
The electrostatic guard circuit will discharge static electricity to the outer metal part of the RS232 connector. For better guard, it is recommended to ground it for use.
