Interconnect Cables

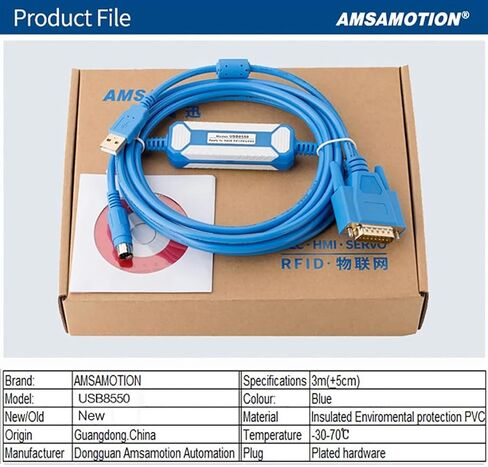

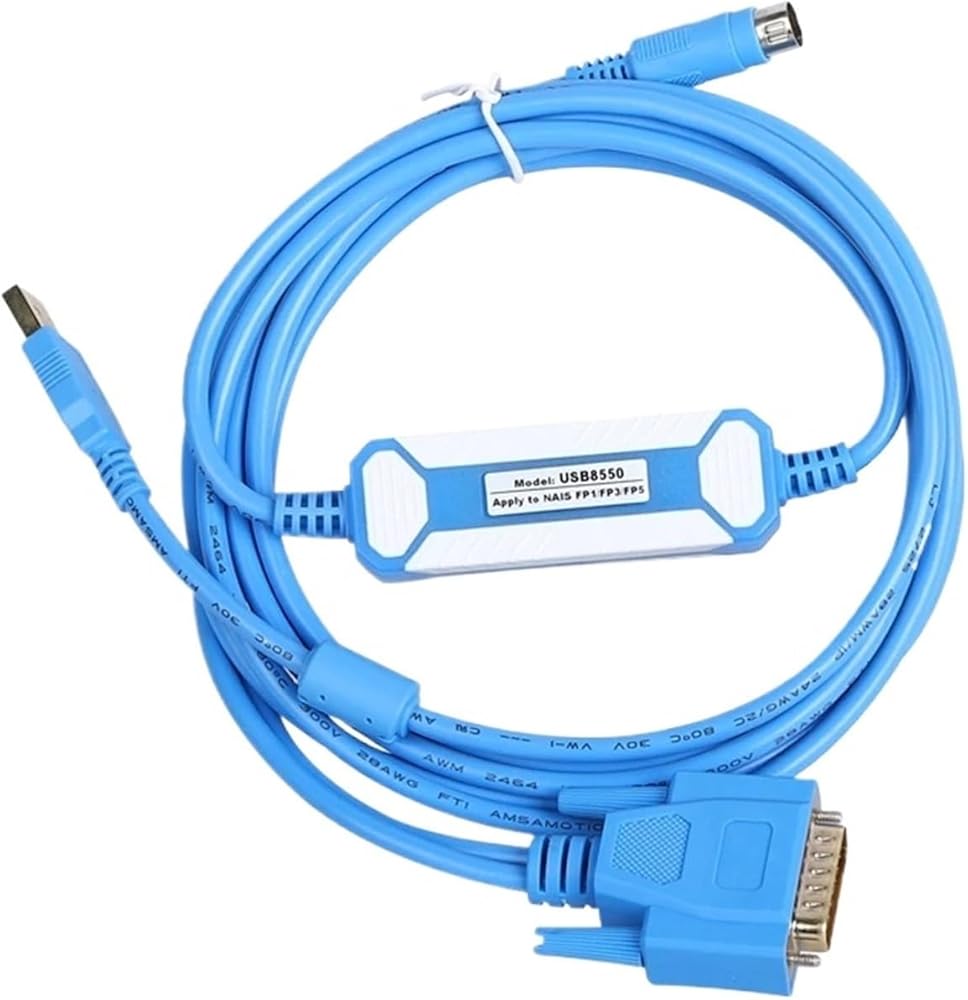

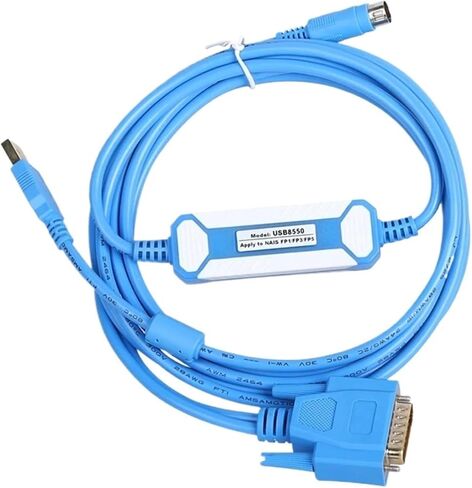

Model: USB8550
Suitable for FP1 and FP3/FP5 series . For FP1, AFP1523 adapter cable is needed to connect USB8550 and FP1. For FP3/FP5, AFP5523 adapter cable is needed to connect USB8550 and FP3/FP5. The maximum communication distance is 2 kilometers.
Features and technical indicators:
Supported operating system: Windows2000/Windows XP
Fully compatible with USB V1.1 and USB CDC V1.1 specifications
USB bus power supply, current consumption is about 50mA
Baud rate: 300bps - 1Mbps standard baud rate automatically adapts
Each PC only supports one USB programming cable
Working temperature: -20 - +75
Gold-plated connection with low resistance, reduce the abrasion, and anti-oxidation protection, make the connection more better, cable crust applied insulated PVC meet POHS standard
Dust and water adapter.The adapter makes the communication more stable, Internal led light,Online monitoring and debugging, 2.5m cable length solve long distance connection issue

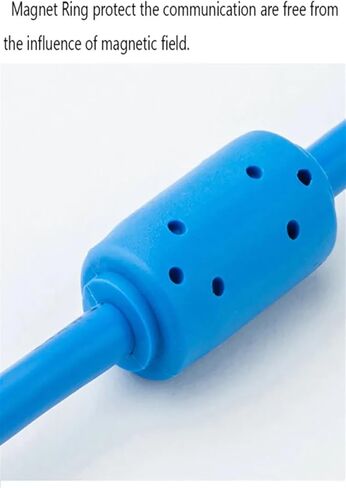

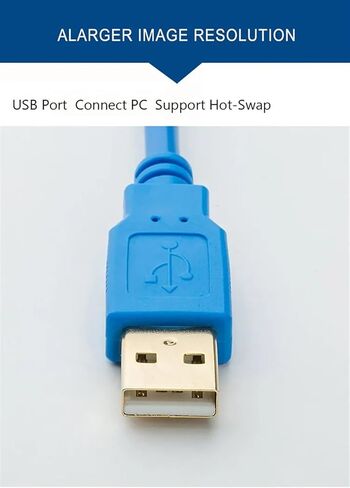

USB side with a high-intensity magnetic ring can protect the communication free from the influence of magnetic field, USB support -swap, anti-oxidation protection, more
The cable using environmentally friendly PVC pure copper process,fast transfer rate, good electrical and thermal conductivity, high strength, low resistivity, good ductility and low energy consumption and the wire is soft, can reduce the signal loss ,it doesn't affect the communication quality even in winter.
