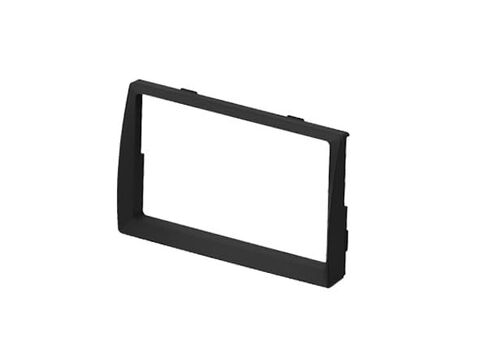

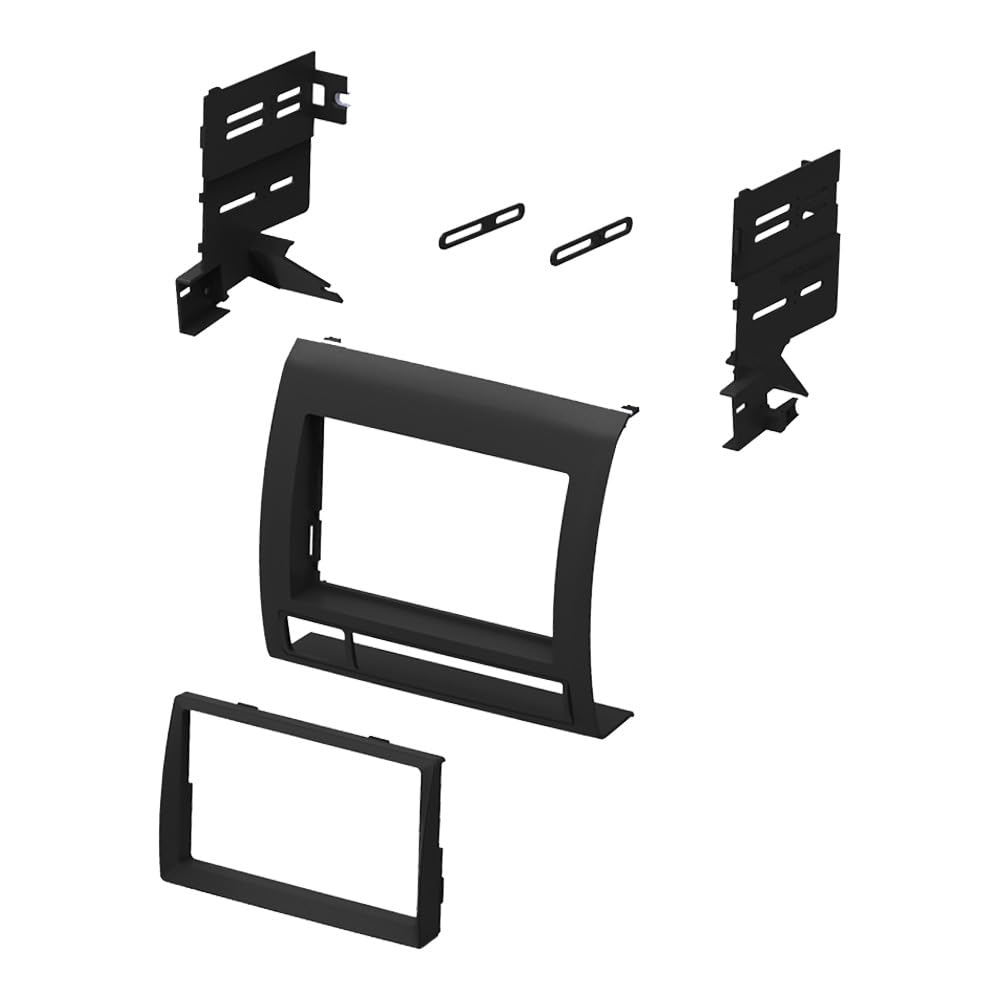

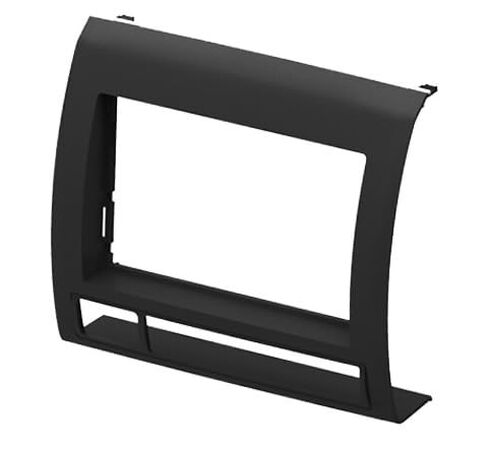

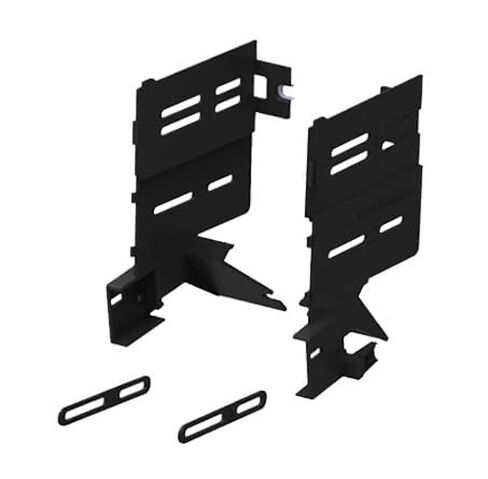

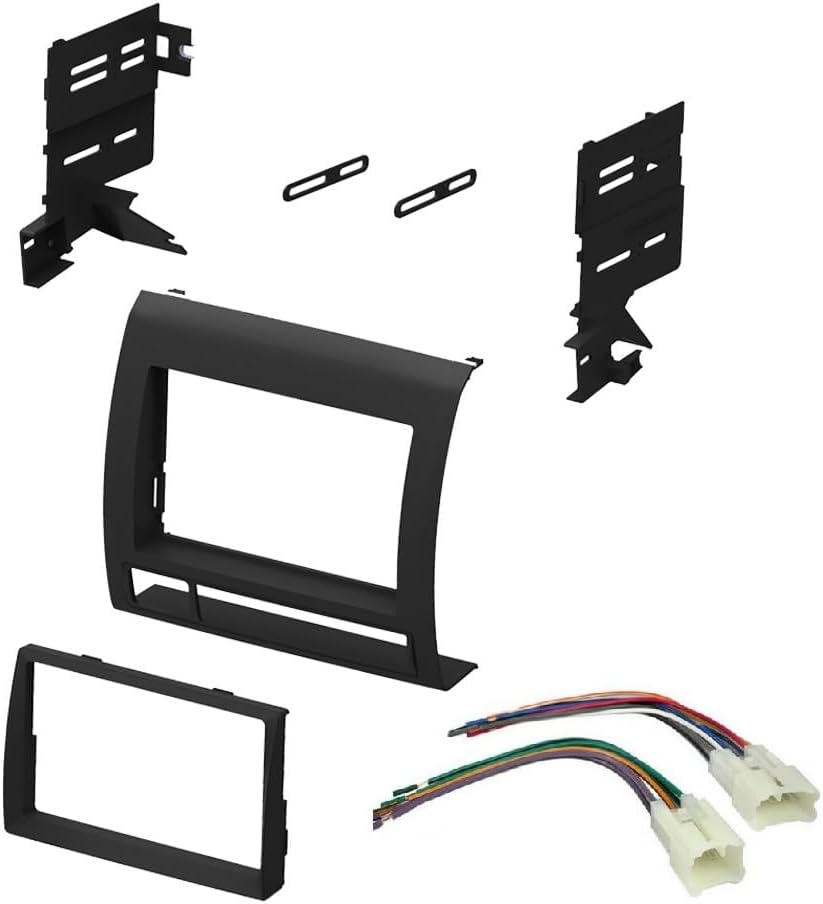

This Stereo Installation Kit was engineered to help you install either a 2" tall Single DIN or a 4" tall Double DIN aftemarket radio into the original vehicle dashboard. Dash Kits are a popular way to customize the interior of your car. They're made up of several parts that come together to customize your dash board. If your car came with a double DIN head unit, you have a choice of replacing it with a single or double DIN radio. If your vehicle came with a single DIN head unit, then you usually have to replace it with another single DIN head unit.

Vehicle Application Reference
Toyota
2005-2011 Tacoma

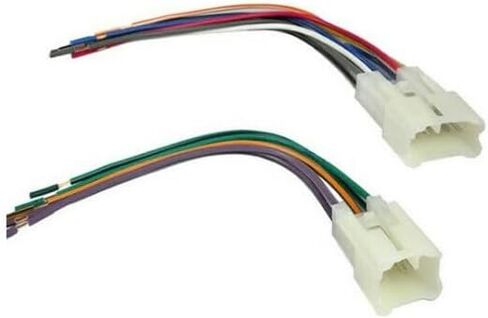

Wiring Harness
compatible with Toyota 1987 & Up
Plugs into factory harness
Power / 4 Speakers

---------------------------------------

*Note: When Black Wire is not present, ground radio to vehicle chassis. All colors may not be present on all leads due to manufacturers specifications.

EIA Wiring Color Code
12 Volt Ignition/ACC.......... Red
12 Volt Batt./Memory.......... Yellow
Ground........... Black
Power Antenna............... Blue
Amp Turn-On.................. Blue/White
Amp Ground........................ Black/White
Illumination........... Orange
Dimmer................ Orange/White
Phone Mute.............. Brown
Right Front+......................... Grey
Right Front-............................ Grey/Black
Left Front+..................... White
Left Front-.................. White/Black
Right Rear+....................... Violet
Right Rear-.................. Violet/Black
Left Rear+.......................... Green
Left Rear-................. Green/Black
