Garosa Wireless Serial Port Module RS232 Adapter with Built in BT Communication Protocol for DOS Systems 15M Range

KWD 6.500
Brand
Garosa
Category
Internal Cards
Weight
19 g
– 1 +

Special Features

  • [User-friendly Design] Powered via the mini usb interface and featuring a convenient reset button, this module allows for easy management of paired devices. the reset function enables quick deletion of stored pairing information, facilitating seamless reconnection with new devices as needed.
  • [High Performance Chip] Equipped with a advanced csr chip supporting the 2.1 standard, this module ensures reliable data transmission. enhanced ber error rate performance and automatic frequency hopping technology work together to deliver efficient, secure, and stable communication from interference.
  • [Plug and Play Convenience] This serial port module features a built-in communication protocol, eliminating the need for additional drivers. it seamlessly integrates with systems and non-graphical operating environments like dos and , providing effortless setup and immediate usability for various computing needs.
  • [ Wireless Transmission] With transmitting meeting class 2 standards and a high-sensitivity pcb antenna, this module achieves stable wireless communication up to 15 meters in open space. it maintains reliable data transmission even through walls, offering flexible placement options.
  • [Universal Compatibility] Designed to connect effortlessly with -enabled devices including laptops, desktops with adapters, and handheld pdas. its versatile compatibility makes it an ideal solution for diverse wireless communication requirements across multiple platforms and devices.

Description

Spec:

Item Type: Serial Port Module
Material: Plastic
Operating Standard: BT SIG v2.1+EDR
BT Protocol: BT SPP
Interface Interface: RS232
Communication Rate: 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200, 230400, 460800, 921600, 1382400bps
Modulation Method: 2.4G ISM Direct Sequence Frequency Hopping (FHSS)
Communication Distance: 15 Meters in Open Space, Class 2 Level
Transmit : 4 dBm
Receiving Sensitivity: -79dBm
Working Voltage: 5V
Working Current/Sleep Current: 40mA/1.6mA (Typical Value)
Working Environment Temperature / Storage Environment Temperature: -10-50 Degrees Celsius / -20-80 Degrees Celsius
Size: Approx. 56.5 x 38.5 x 14.5mm / 2.2 x 1.5 x 0.6in

Package List:
1 x Serial Port Module

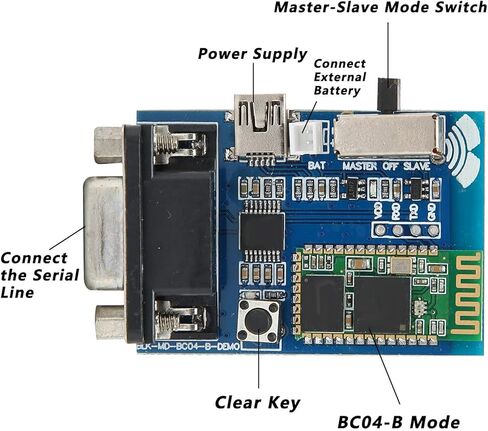

How To Use:
The module is connected to the computer:
1. Convert TTL level to RS232
2. Module supply 3.3 V
3. Connect TX and RX Connect RX and TX
Module and various TTL level MCUs Equipment connection:
1.TX and RX are connected RX and TX are connected
2. Module supply 3.3V
