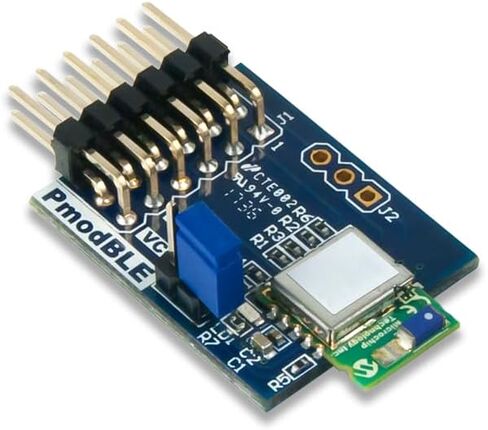

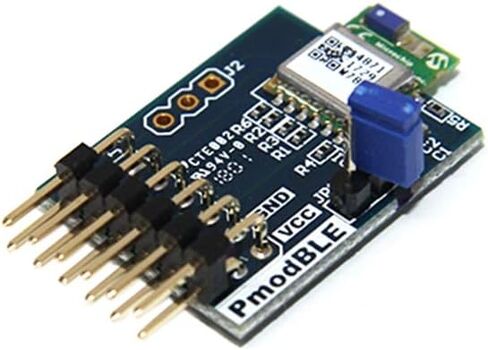

The Digilent Pmod BLE is a powerful peripheral module meant for use with
any UART enabled development board. This Pmod employs the Roving Networks
RN4870 to create a fully integrated Bluetooth Low Energy interface. This
chip features an onboard Bluetooth stack that makes connecting and
communicating with any Bluetooth 4.X device possible through simple UART
commands. The RN4870 also features four built-in GATT services: Device
Information, Airpatch, BeaconThings, and UART Transparent data streaming.
It also allows up to five custom public services and up to four custom
private services, each allowing up to eight custom characteristics. The
Pmod BLE is an affordable, versatile, low energy addition to the wireless
Pmod library. Features: Bluetooth Smart 4.2 BLE compatible Add wireless
capability with low power Bluetooth radio ASCII command interface over UART
UART transparent service for serial data streaming Secure communications,
128-bit AES encryption, and white list capabilities Customizable GAP, GATT,
SM, L2CAP, and integrated public profiles 12-pin Pmod port with UART
interface
