Specifications:
Input Power: DC 5V ±0.5V (2A) P7 or P9
Input Signal:
CGA / EGA: 14.5kHz ~ 16.5kHz / 23.5 ~ 25.5kHz / 30.5 ~ 32.5 kHz (Auto scan) P3 or P11 or P10
RGBHV: 30.5 ~ 32.5 kHz (Auto scan) P10 or P11
VGA: 30.5 ~ 32.5 kHz (Auto scan) P10 or P11
Ypbpr: 480p, 576p, 720p, 1080p (Auto scan) P2
Ycbcr: 480i, 576i, 720i, 1080i (Auto scan) P2
Output signal:
VGA: 640 * 480, 800 * 600, 1024 * 768, 1360 * 768 P4 and P13
User controls:
Input Image Zoom, Input Zoom, Image Position, Output resolution, R/G/B gain adjust. MENU KEY R/G/B VR
Color: Green

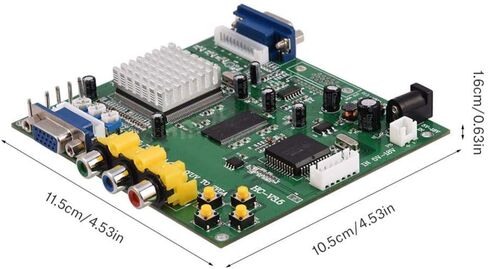

Size: Approx. 11.5 * 10.5 * 1.6 cm / 4.53 * 4.53 * 0.63in
Color: Green
Material: ABS
Package Weight: About 112g

Menu Control:
'MENU' open OSD menu, and enter.
'UP' up and increase.
'DOWN/AUTO' down and reduce.
Press this key: auto scan CGA/EGA signal
Press this key over 5 second and release: reset system (this is invalid when you open OSD menu)
'SW' input signal Ypbpr/RGBS/RGBHV (this is invalid when you open OSD menu).
'Clamp sp' & 'Clamp' please don't adjust this button, except the monitor has black item or picture discoloration.
For more functions control, please look at OSD to operate.

Package Included:
1 * Converter Board
1 * 6Pin Signal Wire
1 * 2Pin Power Supply Wire
