The Powerwerx DCDC-8A is an adjustable DC-to-DC charger for charging 12V LiFePO4 batteries.
2-Stage Charging Profile:
The DCDC-8A uses a 2-stage Constant Current (CC) Constant Voltage (CV) charging profile.
User Selectable Charging Amperage:

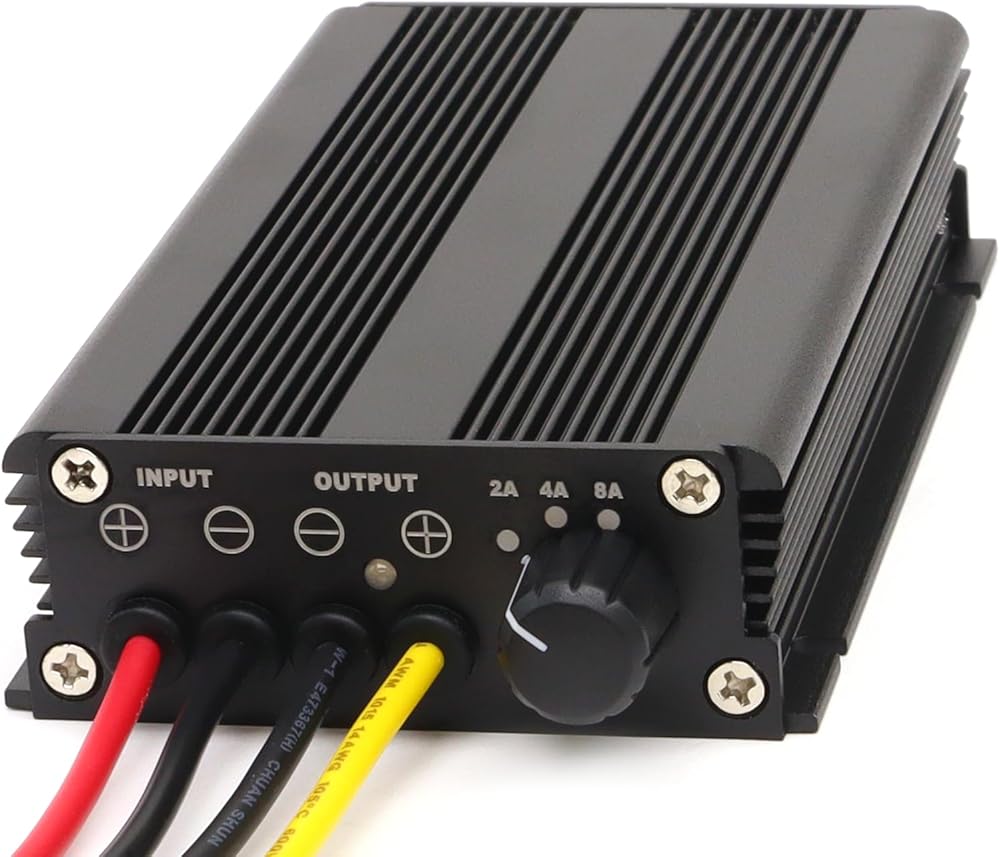

This unit provides a user selectable 2A, 4A, or 8A charging current, and can be selected by using the selector dial. Below you will find suggested charging amperages based off of your batteries capacity.
Wide Input Voltage Range:
With a wide input voltage range of 8-36VDC, this DC-to-DC charger can be powered by multiple sources.
Installation:

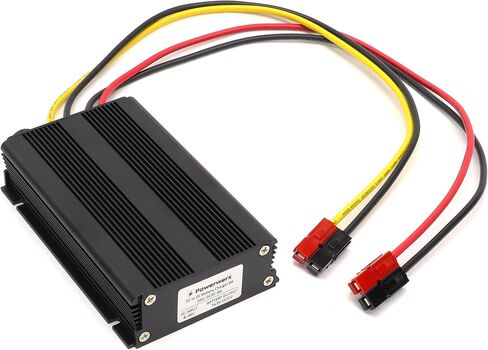

The DCDC-8A uses Anderson Power 30A connectors for quick and easy installation.
NOTE: The DCDC-8A is an air-cooled unit and can become quite hot while charging.
Specifications:
Input Voltage: 8-36 VDC
Output Voltage: 14.5 VDC
Connector Type: Anderson Power 30A power connector
Maximum Power: 116 Watts
Output Current: 2A/4A/8A (user selectable)
Battery Type: LiFePO4
Conversion Efficiency: 95%
IP Rating: IP68
Overcurrent Protection: Yes
Over voltage protection: Yes
Output Short Circuit Protection: Yes
Over Temperature Protection: Yes
Dimensions: 5.4" x 3.0" x 1.2"
Weight: 1.15 lbs.
NOTE: This DC-to-DC charger is intended for use with Bioenno LiFePO4 or equivalent batteries. This charger should not be used with Flooded, AGM or GEL type batteries as it will overcharge them.
