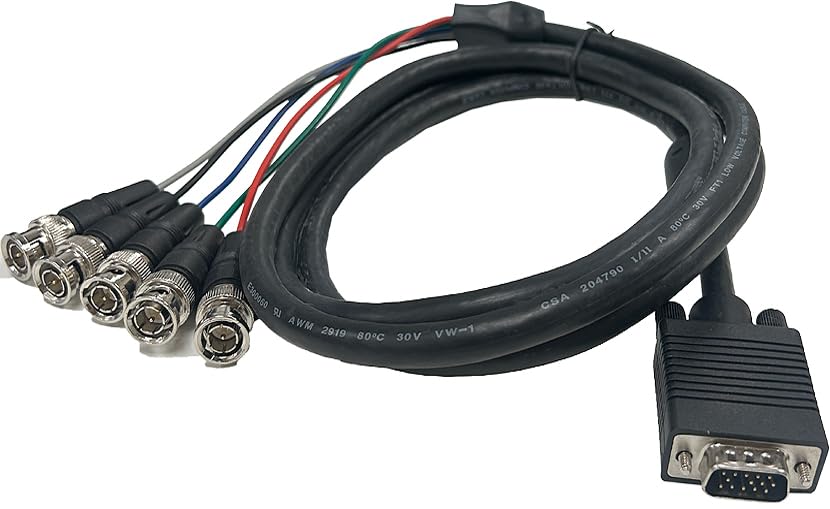

6FT Shielded D-Sub 15-in SVGA Male to 5 BNC Male RGBHV Cable

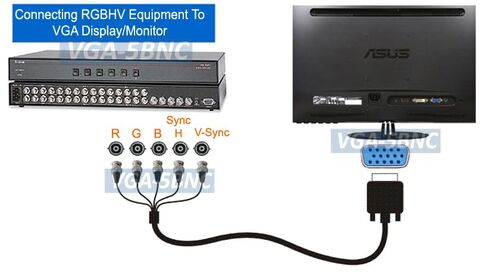

This premium VGA to 5 BNC breakout cable is designed for connecting a VGA source to an RGBHV display or connecting a RGBHV source to a VGA display.
This VGA RGBGHV adapter cable will pass the red, blue, green, 31kHz horizontal sync and 60Hz vertical sync signal cable through to VGA HD-15 pin connector for application hookup.
True 75 ohm connectors and cable for accurate video and sync signal transfers.
It will also work for the 3-BNC type RGB signal or for 4-BNC type RGBS signal as well by leaving out either the H-sync and/or V-sync connector.
Cable is 6 foot long and will handle red, green, blue, vertical sync, and horizontal sync.
The red, green and blue connectors are for video colors. The gray and white connectors are for horizontal sync and black for vertical sync.

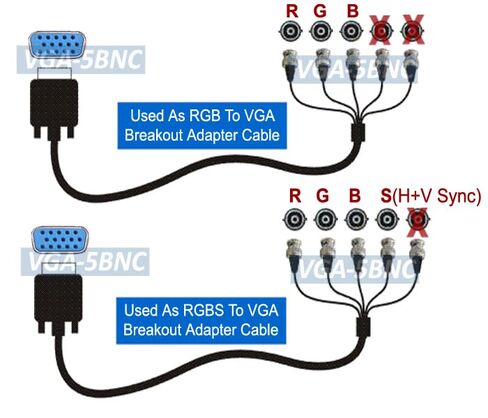

15-Pin VGA To RGBS Or RGBS To 15-Pin VGA Pass-Through
This breakout cable can be used for 4-BNC type RGBS signal as well to be passed through a 15-pin VGA connector by leaving out either the H-sync or V-sync connector.
15-Pin VGA To RGB Or RGB To 15-Pin VGA Pass-Through
It will also work for the 3-BNC type RGB signal to be passed through a 15-pin VGA connector by leaving out both the H-sync and V-sync connector.
