Mounting Brackets
1) FEATURE>>........
Full motions flexibility with all directional effortless adjustment without tools used
Durable gas-strut cylinder and conical joints constructed for smooth and stable operation
Design concept relax your life

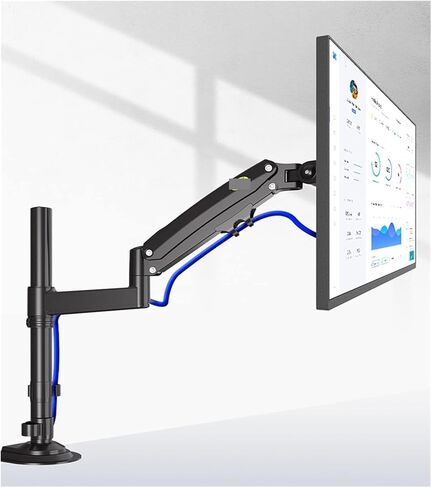

Integrated cable management conceals inside provide clean ,neat and clutter-free appearance
Compact and retractable design increase your work space
2) TECHNICAL PARAMETERS>>>>>>

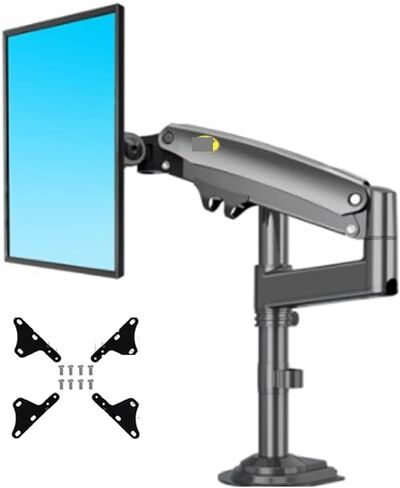

Model No: NB-H100

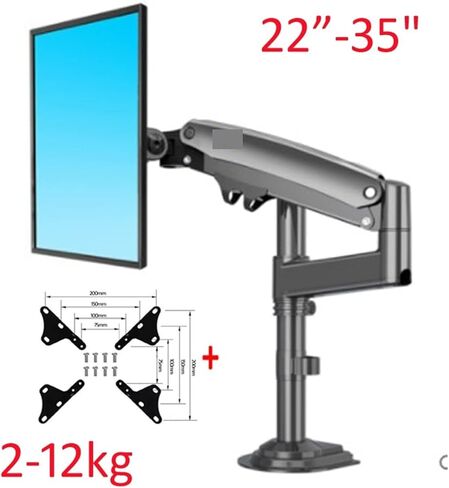

Suitable for 22"-35" LCD/Monitor
with air press structure,easy to move up/down

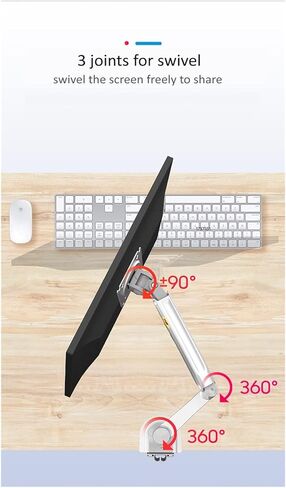

Rotate by 360
Tilt up/down:85°/-30°
Swivel:180°
With cable system to hide the cables
Load:2-12kg(plz make sure your screen is within this range, or the mount's gas spring couldnt work )

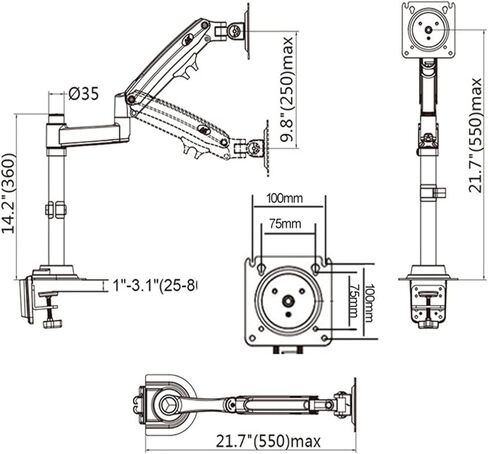

VESA size:
H100: 75x75mm/100x100mm
H100 with adaptor: 75x75mm/100x100mm/100x200mm/200x200mm
include clamp base and grommet base together:
Grommet base suitable for hole diameter 10mm-50mm,desk thickness:20-90mm(if your desk thickness is between80mm-120mm,plz choose the correct option here)
clamp base: desk thickness between 25-80mm
