Mounting Brackets
Description
Model: TA42
Arm length: 300 mm

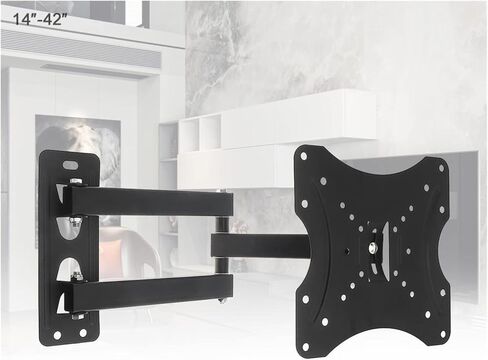

Applicable Size: 14-42 inches
Material: Cold tie plate
Hole Length: 200mm(those within 200 can be used)
Hole Width: 200mm(those within 200 can be used)
VISE standard hole spacing conforming to 75X75mm, 100X100mm, 200X200mm
Maximum distance from Wall: 430mm

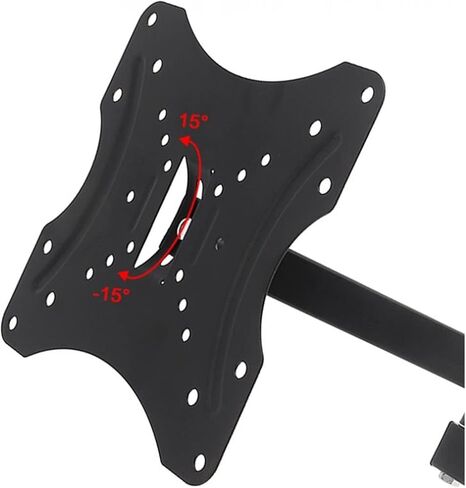

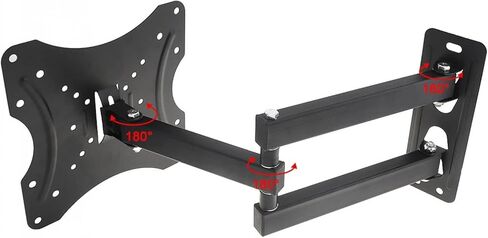

Adjust Angle:Up and down by 30 degrees,left and right can adjust 180 degrees..
Maximum Load: 35kg/77lbs(Recommended load-bearing capacity of 25kg)
Features:
- The one-piece panel is simple and easy to operate.
- Automatic telescopic adjustment design, stretchable and rotatable.
- The key parts are thickened, the structure is stable, and the ability to withstand weight is strong.
