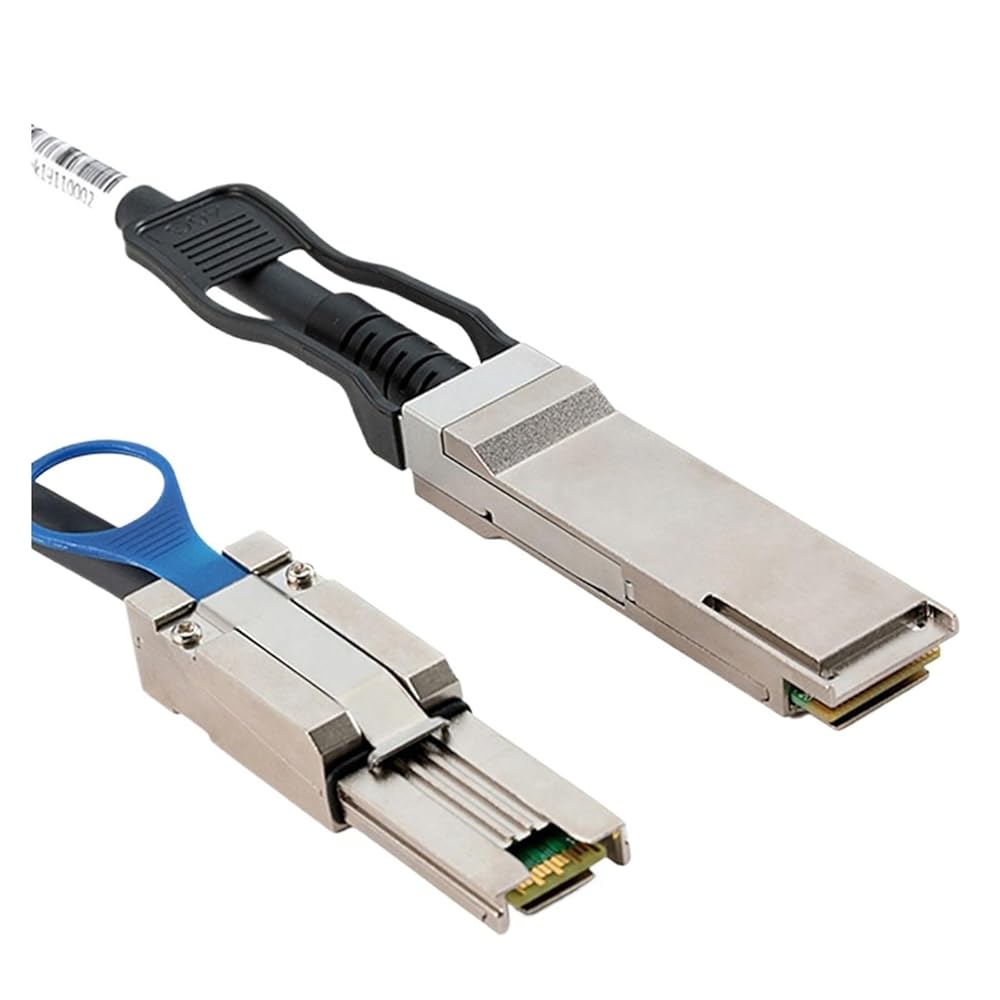

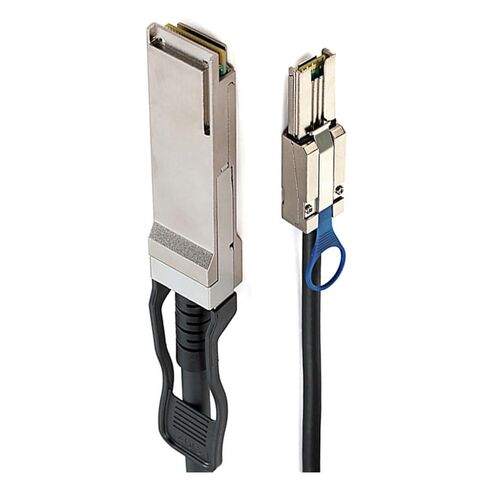

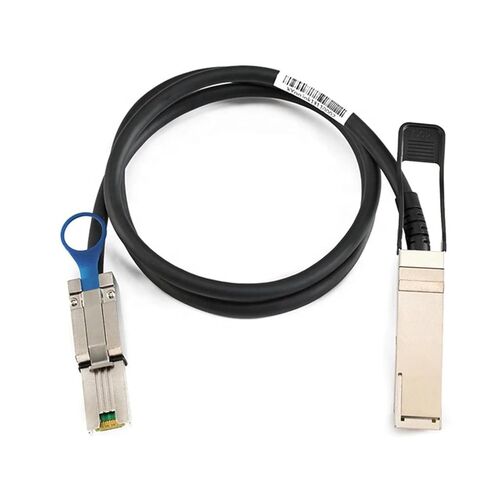

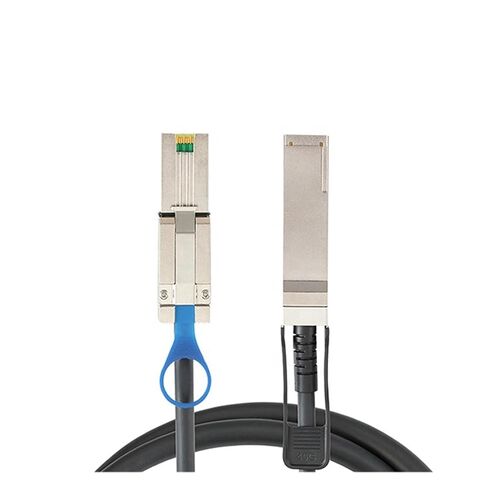

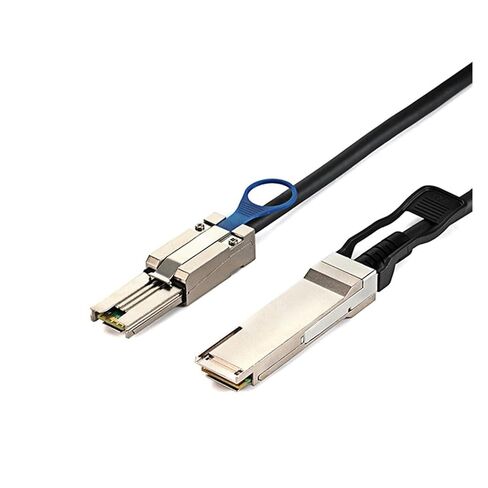

(SFF-8436) to SFF-8088 DDR Hybrid S-AS Cable, External Copper S-AS Cable for NetApp DS4243 DS4246 DS2246, 100-Ohm
Product Description:
(SFF-8436) to SFF-8088 DDR Hybrid S-AS Cable, External Copper S-AS Cable for NetApp DS4243 DS4246 DS2246, 100-Ohm
Series: M1ni S-AS HD
Cable Length: 0.5M /1.0 M/2.0M/3.0M
Wire Size: 30AWG, Tinned Copper,
Lock to Mating Part: With Latch
Plating: Au 30u' min over Ni 100u' min
Color: Cable BLACK, Over : ZINC-ALLOY SHELL
Flammability: Cable Horizontal flame, PCB 94V-0,
Applications
Data/Communications
1. (Redundant Array of Independent Disks)
2. Workstations
3. Rack-mount server
4. Servers
5. Storage rack
Features and Benefits
1. Transmission rate 40Gbps.
2. Meet SAS4.0 specification.
Mechanical Performance
Mating Force and Unmating Force
Condition: EIA 364-13. Insert and extract at a speed of
25mm/minute.
Mating Force: 55 N maximum for M1ni S-AS.
Unmating Force: 49 N maximum for M1ni S-AS.
Electrical Performance
1. Current Rating
0.5Amperes maximum per pin when mated.
2. Voltage Rating
30VAC per when mated or unmated.
3. Resistance
30mohm max. initial, 15mohm maximum after stress test.
4. Dielectric Withstanding Voltage
500 VAC for 1 minute no breakdown.
5. Insulation Resistance
1000 Mohm minimum.
Signal Integrity
1. Mated Connector Impedance: 100 Ω±15%
2. Cable Absolute Impedance: 100 Ω±10%
3. Cable Pair Matching:±5 Ω
4. Common Impedance: 25 to 40 ohms
5. Insertion loss: -6dB maximum up to 4.5Ghz;
6. Crosstalk: -26 dBup to 40Ghz;
Product Compliance
Package : Yes
Model Number : QSFP-8088
TY>pe : M1ni S-AS
