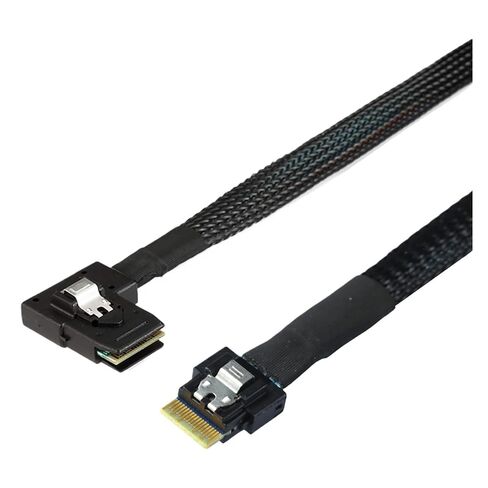

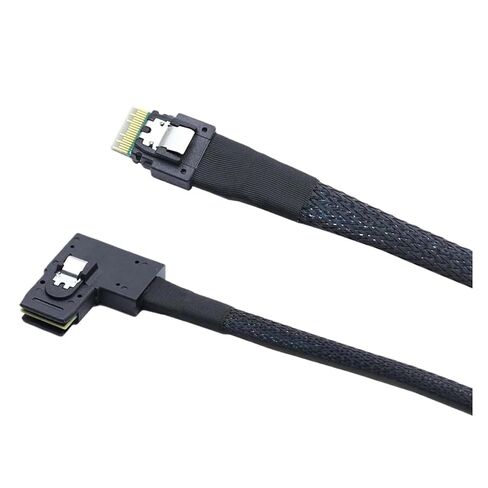

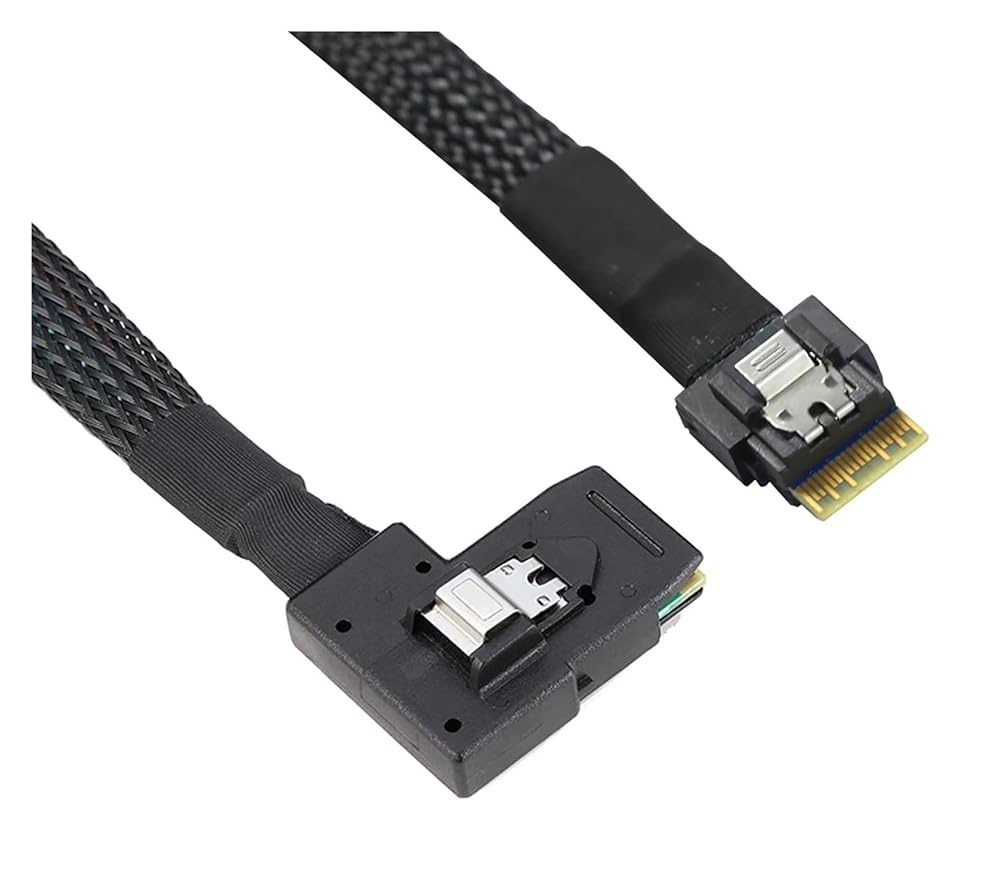

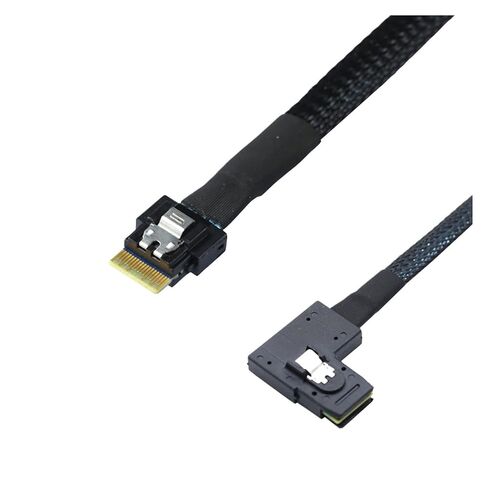

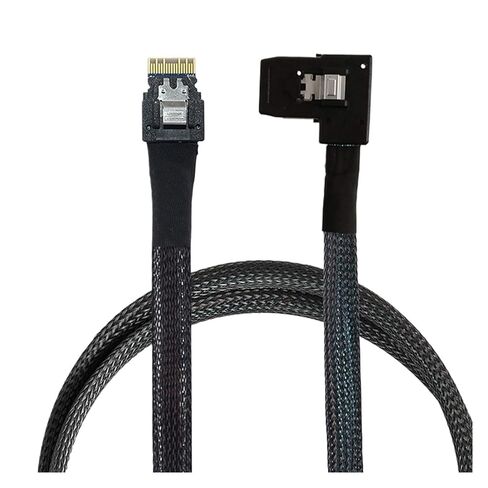

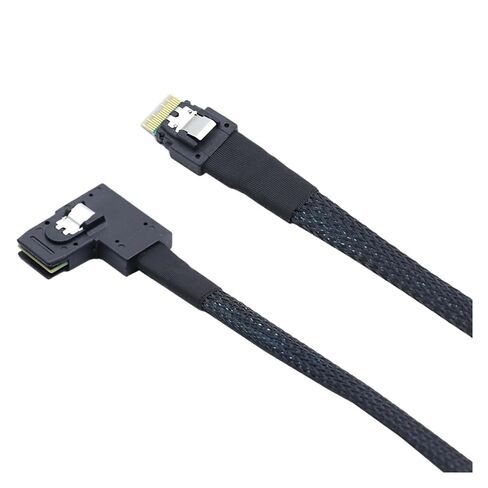

Product Descriptio: Slimline S-AS 4.0 SFF-8654 4i 38pin Host to HD M1ni S-AS 4i SFF-8087 36pin Target Cable 50cm PCIE4.0
Cable Length: 1.0M
Wire Size: 32AWG, Tinned Copper, OD: 0. 9*2.3,MM
Lock to Mating Part: With Latch
Plating: Au 15u' min over Ni 100u' min
Color: Cable , Over Black
Flammability: Cable Horizontal flame, PCB 94V-0, PBT 94V-0
Applications
Data/Communications
1. (Redundant Array of Independent Disks)
2. Workstations
3. Rack-mount server
4. Servers
5. Storage rack
Features and Benefits
1. Transmission rate 12Gbps.
2. Meet SAS4.0 specification.
Mechanical Performance
Mating Force and Unmating Force
Condition: EIA 364-13. Insert and extract at a speed of
25mm/minute.
Mating Force: 55 N maximum for M1ni S-AS.
Unmating Force: 49 N maximum for M1ni S-AS.
Mating Force: 45 N maximum for SATA connector.
Unmating Force: 10 N maximum for SATA connector.
Electrical Performance
1. Current Rating
0.5Amperes maximum per pin when mated.
2. Voltage Rating
32VAC per when mated or unmated.
3. Resistance
32mohm max. initial, 15mohm maximum after stress test.
4. Dielectric Withstanding Voltage
500 VAC for 1 minute no breakdown.
5. Insulation Resistance
1000 Mohm minimum.
Signal Integrity
1. Mated Connector Impedance: 85 Ω±15%
2. Cable Absolute Impedance: 85 Ω±10%
3. Cable Pair Matching:±5 Ω
4. Common Impedance: 25 to 40 ohms
5. Insertion loss: -6dB maximum up to 4.5Ghz;
6. Crosstalk: -26 dBup to 6Ghz;
Package : Yes
Model Number : 8654-018
TY>pe : / S-AS / InfiniBand Cables
