【Features】
It can capture a single HD HDTV video signal;
Recording video signal up to 1080P/60Hz,HDTV input supports 4K;loop out output 4K
Compatible with UVC video capture and YUV422 video output;
Support UAC&UVC protocol,support 48 KHz PCM audio sampling rate;
No need to install the driver,it is really plug and play;
Compatible with Windows 7,8,8.1,10 or ater,Linux OS,Mac OS operating system;
USB3.0,300~350MB/s bandwidth,compatible with USB 2.0;
With MIC microphone audio input;with headphone output
It can automatically detect the input video format,and automatically adjust to the set output size and frame rate;
It can automatically detect the input audio format and convert it to 48KHz PCM audio;
Multiple collection sticks can be used on one PC;
The picture quality is clearer,the RGB color range is 0~255,and the delay is better;
Support all third-party player software compatible with UVC and UAC protocols;

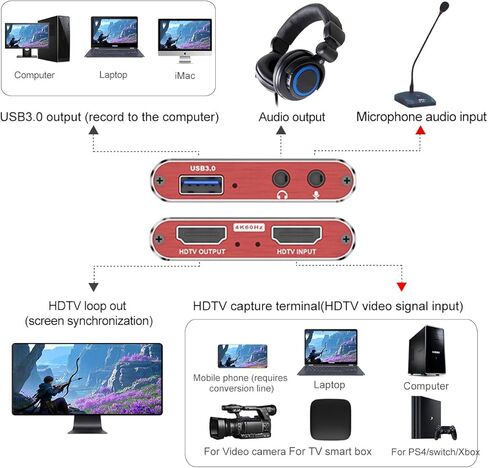

【Interface Description】
Signal indicator:When the device captures video normally,the indicator lights up.
Power indicator light:When the device is connected to the USB port of the computer,the indicatorlightis on.
HDTV input:This slot is the location for connecting HDTV output sources such as cameras,camcorders,game boxes,IPTV boxes,etc.
USB3.0 output:This slot is where you connect to the USB3.0 input of your computer or notebook.

【Packing】
Cowhide box (1pc capture card+1pc USB3.0 male to male cable+1pc HDMI cable+1pc USB to Type-C adapte+1pc manual)
