Please note: This is a barebone only. A system memory, a storage drive and an operating system are needed to complete this system

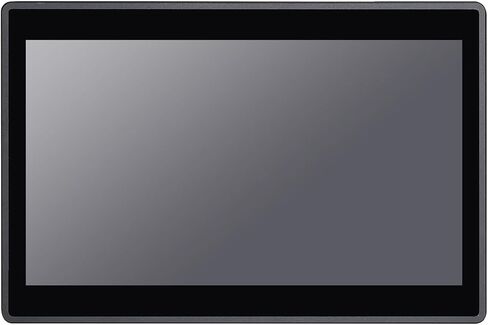

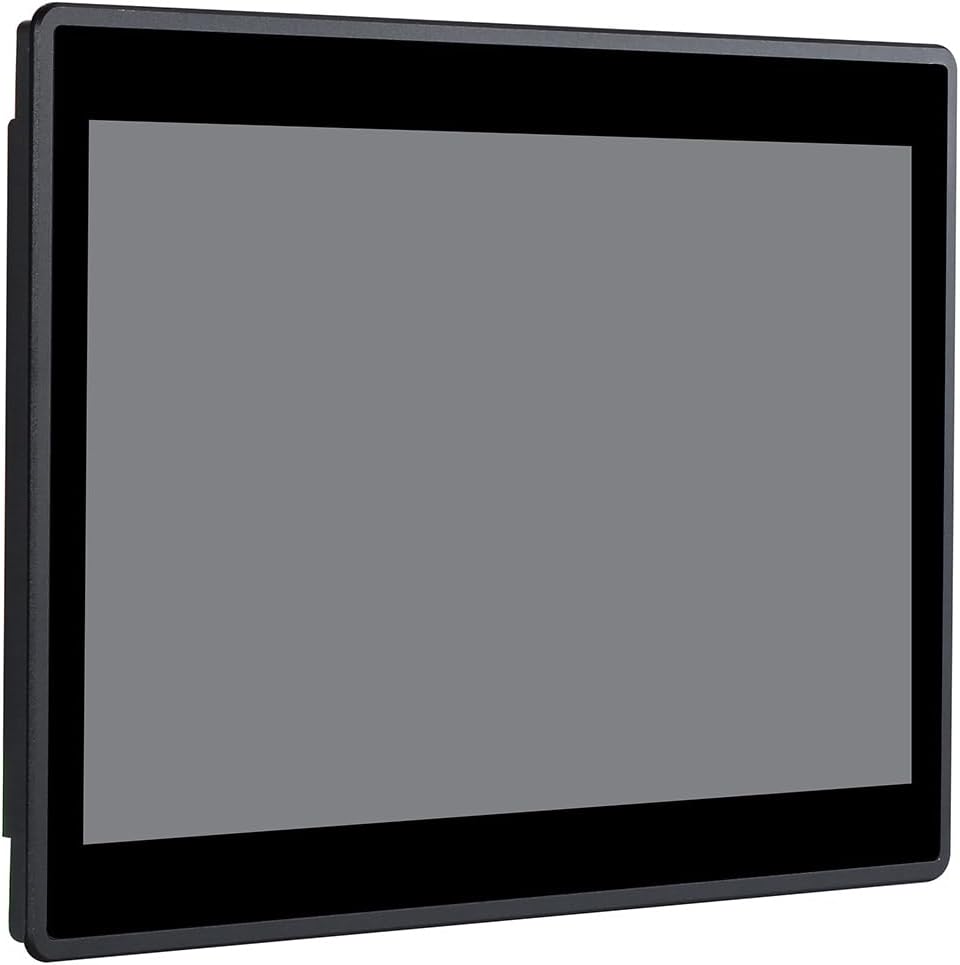

Model Number: HUNSN PW09
Panel: 14" TFT LED panel, front panel protection IP65
CPU: Intel I5 1235U Processor 12M Cache, up to 4.40 GHz
Memory: 2 x SODIMM DDR4-3200, max. to 64GB RAM
Storage: 1 x M.2 2280 PCIE4.0 X4/SATA SSD, 1 x 2.5" SATA SSD/HDD

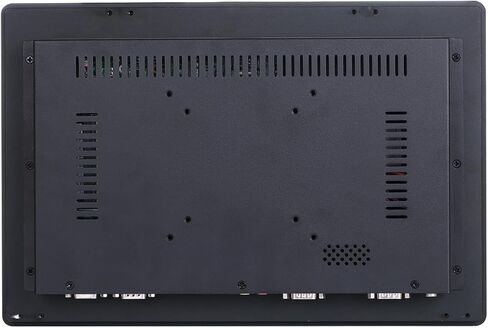

I/O: 12V DC, HDMI, VGA, 2 x USB3.0, 2 x USB2.0, 2 x LAN, AUDIO-IN&OUT, 2 x COM, POWER_SW
Expansion: 1 x M.2 Key E slot for WIFI6 CNVI, 1 x M.2 Key B slot for 4G/5G, default is 4G signal, 5G signal needs to contact us to customize, with sim slot
Watchdog Timer: 255
Cooling System: Aluminum alloy, fanless
Dimension: 346.3 x 231.3 x 42.7mm
Weight: 2.55kgs
Opening Hole: 340.3 x 225.3mm
Resolution: 1600 x 900
Perspective: 45(L), 45(R), 15(T), 35(B)
Brightness: 200cd/m2
Contrast: 400
Backlight Life: 10,000 hours (min.)
Touch Screen: 10-point projected capacitive touch screen
Transmittance: 86±5% at 550 nm wavelength
Durability (Touch Count): 200 million times
Installation: Embedded recommended/Wallmounted/Desktop/Cantilevered etc
Operating Temperature: 0 ~ 50°C with SSD, 0 ~ 40°C with HDD
Storage Temperature: -20°C ~ 60°C
Operating Humidity: 10% ~ 95% @ 40°C without condensation
EMC/Safety: CCC
Power Supply: DC100-240V AC/50-60Hz, 12V~19V
Packing List: HUNSN PW09 Panel PC, Power Supply, Power Cord, Embedded Buckle Kits, Warranty Card
System Support: Windows 10/11, Linux Ubuntu etc
