PCIe To M.2 E KEY Adapter With PoE Function For Raspberry Pi 5, Compatible With NGFF (M.2 E Key) Wireless NIC, Raspberry Pi 5 PCIe HAT

Features

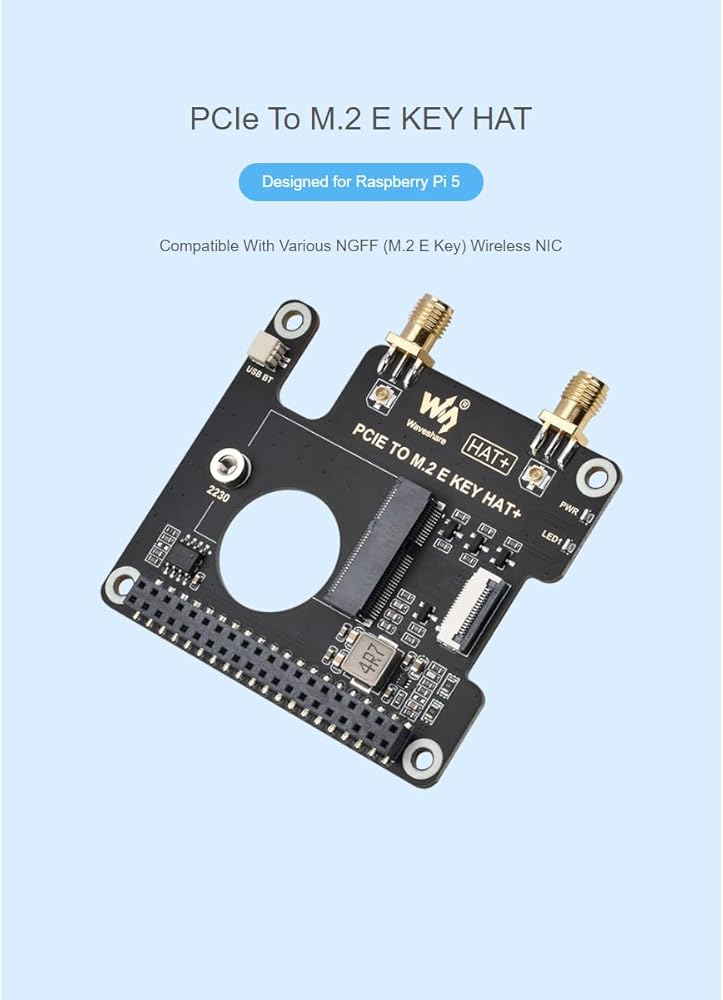

1.PCIe To M.2 E KEY With PoE HAT
Supports PoE Power Supply
Designed For Raspberry Pi 5, Compatible With NGFF (M.2 E Key) Wireless NIC

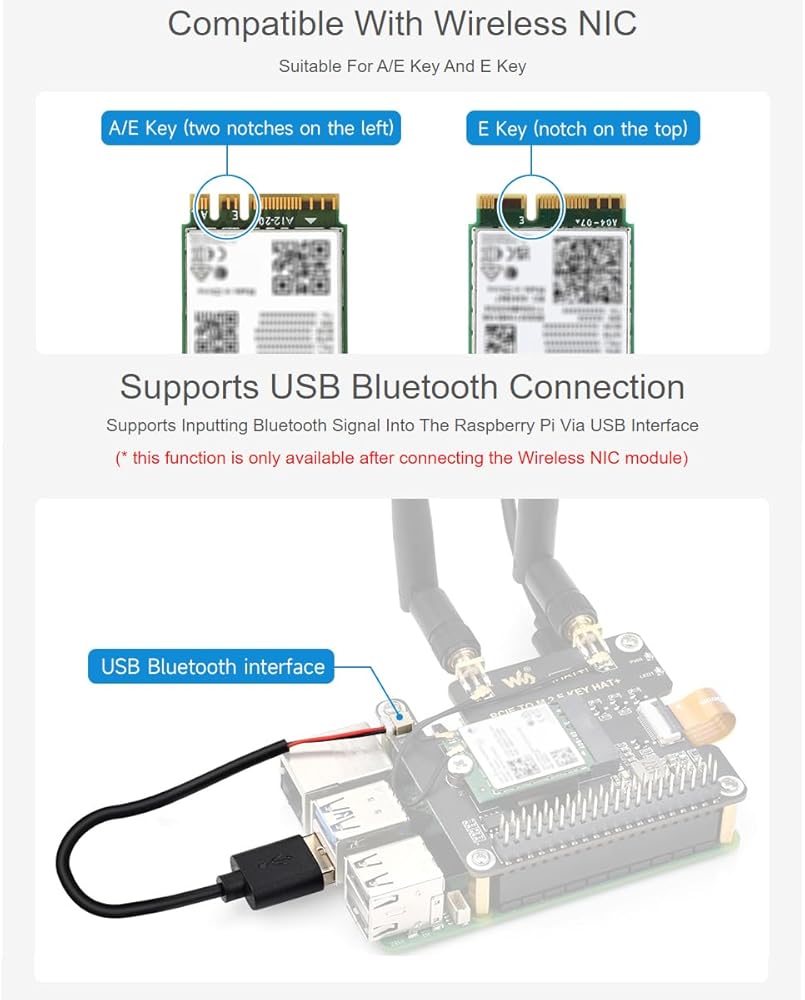

2.Compatible With Wireless NIC
Suitable For A/E Key And E Key

3.Various Wireless NIC Support
Supports The Following Modules, With More Compatible Modules Coming Soon

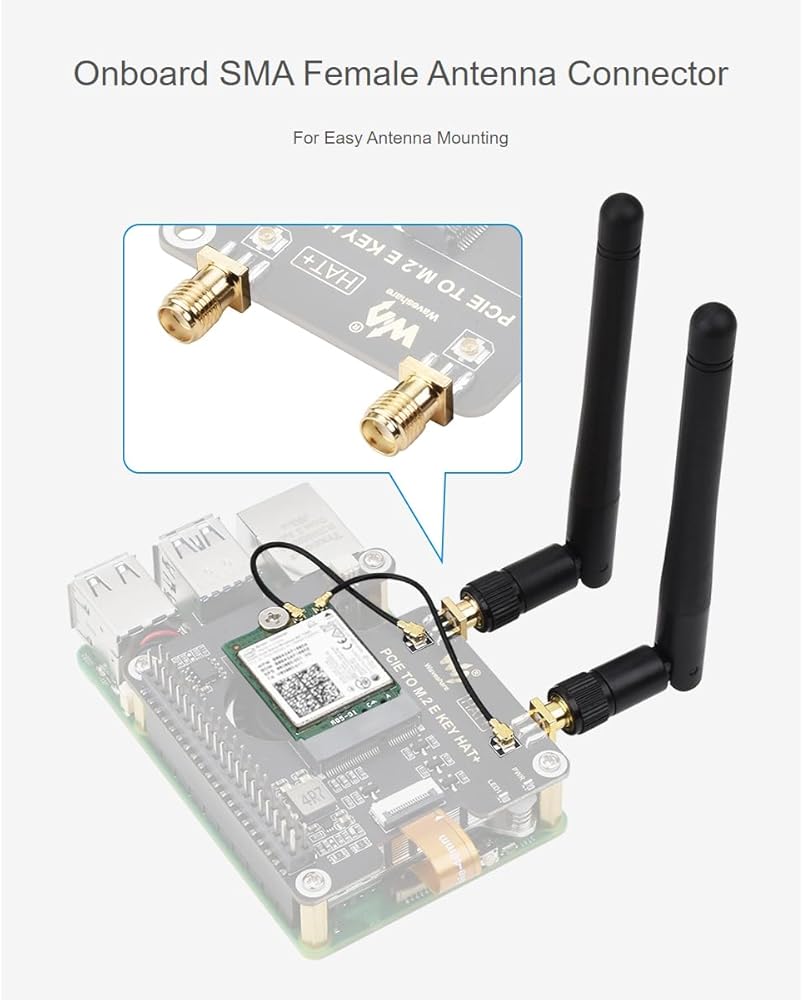

4.Onboard SMA Female Antenna Connector
Supports USB Bluetooth Connection
Supports Inputting Bluetooth Signal Into The Raspberry Pi Via USB Adapter

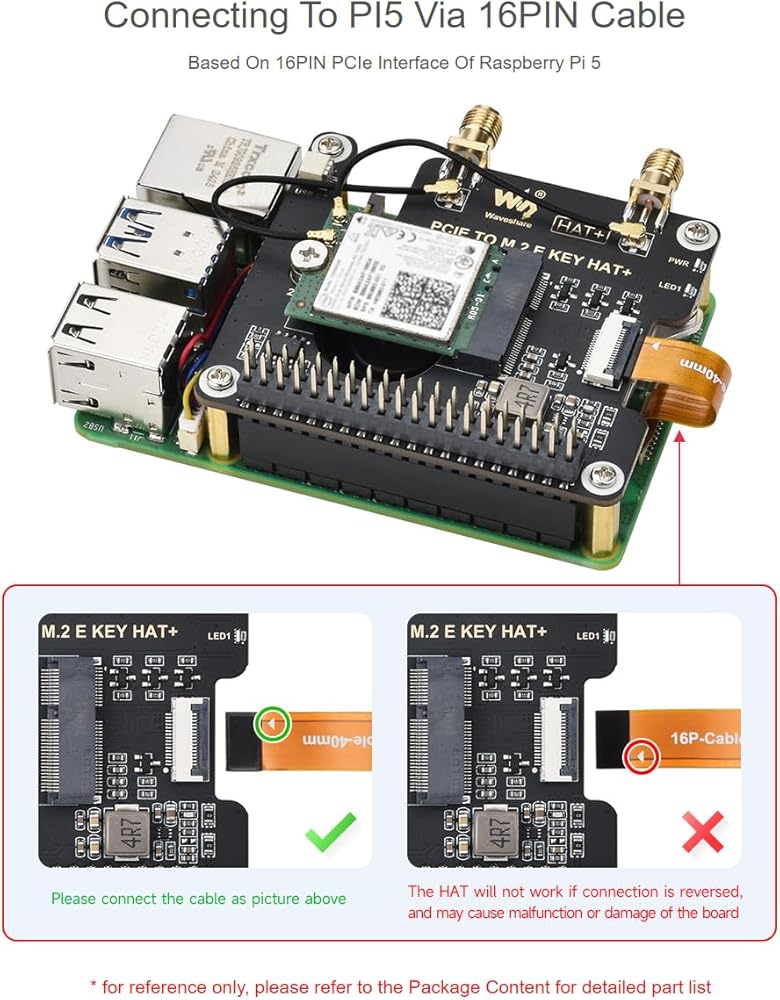

5.Connecting To PI5 Via 16PIN Cable
Based On 16PIN PCIe Interface Of Raspberry Pi 5.
Standard Raspberry Pi 40PIN GPIO Stackable Header, Allows Connecting Other HATs

6.Power Over Ethernet
Providing Both Network Connection And Power Supply For Your Raspberry Pi In One Cable

7.Onboard 5V & 12V Header Outputs
5V Header Provides Up To 4.5A Output (MAX 25W For 12V+5V Total Output Power)
Be Able To Power Extra Devices While Providing Stable Power To Raspberry Pi

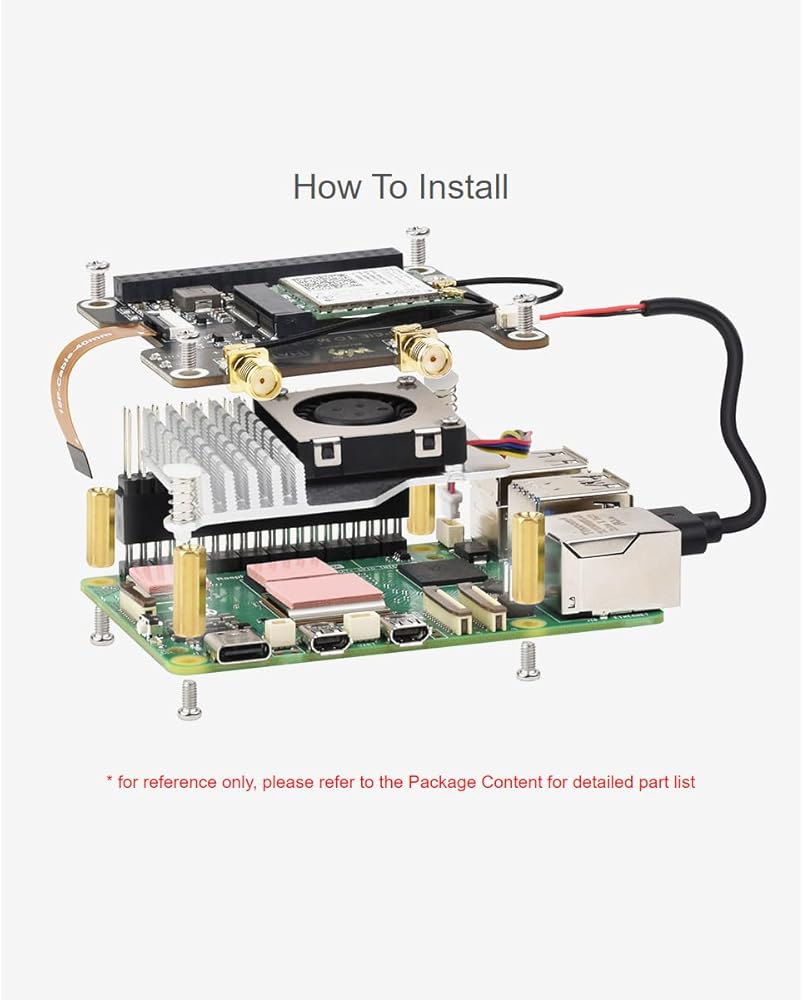

How To Install
Attach The Thermal Tapes First, Then Install The Metal Heatsink And Fix The HAT

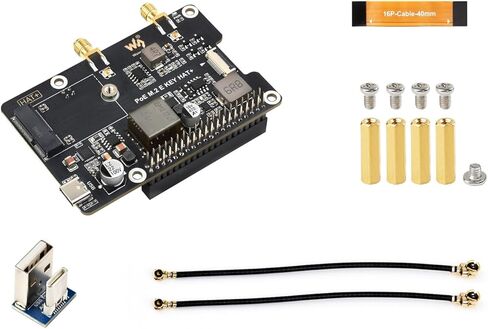

Package Content
PoE M.2 E KEY HAT+ x1
USB Type-C Adapter (E) x1
IPEX 1 to IPEX 4 adapter cable ~6cm x2
16P-Cable-40mm x1
Screws pack x1
