Diamond Audio MICRO4V2 - MICROV2 Series 4-Channel Full Range Class D Amplifier
Discover exceptional sound quality in a compact design with Diamond Audio's MICROV2 series of amplifiers. Utilizing ultra-efficient full-range Class D topology, these amplifiers deliver impressive power despite their small size. The MICROV2 series also features advanced Rollback/Thermal protection, ensuring continuous and uninterrupted play without any risk of shutdown.

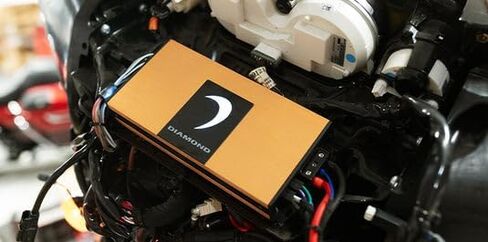

The installation possibilities are endless with the MICROV2 series! These amplifiers boast an ultra-compact, high-density aluminum alloy chassis, making them versatile and easy to fit in any setup. Balanced differential inputs ensure noise-free operation, while full-range digital Class D technology with Direct FET power MOSFET output stage guarantees top-notch performance.
With 12dB per octave adjustable crossovers, Diamond bass boost EQ (12dB @ 45Hz), and advanced rollback power circuitry to keep your amp cool, the MICROV2 series keeps your music playing smoothly. The selectable 3-option Auto Turn-On Mode circuit is designed to work with any OEM head unit, simplifying installation and making it more convenient.
When you need quality and performance in a small package, look no further than the MICROV2 series from Diamond Audio. Upgrade your audio system today and experience the perfect blend of power, efficiency, and flexibility.
Key Features:
Full-Range Class D Topology: Ultra-efficient design delivers high power in a compact form.
Rollback/Thermal Protection: Ensures uninterrupted performance without overheating or shutdown.
High-Density Aluminum Alloy Chassis: Ultra-compact and durable for flexible installation.
Balanced Differential Inputs: Provides clean, noise-free audio signal.
Direct FET Power MOSFET Output Stage: Enhances power efficiency and audio clarity.
12dB Per Octave Adjustable Crossovers: Customizable sound tuning for optimal performance.
Diamond Bass Boost EQ: 12dB boost at 45Hz for deep, powerful bass.
Selectable 3-Option Auto Turn-On: Works with any OEM head unit for seamless integration.
Specifications:
Power Output:150W x 2CH @ 2Ω
80W x 4CH @ 4Ω
300W x 2CH @ 4Ω Bridged

Input Sensitivity: 0.2-10 Volt
Crossover Filter: 40-400Hz, 12dB Per Octave Slope
Frequency Response: 10-33KHz

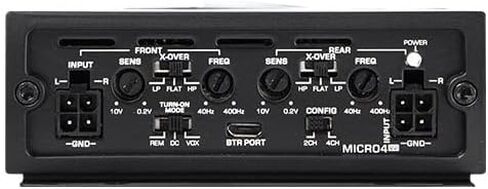

Selectable Turn-On Modes: REM / VOX / DC
Selectable Crossover: LPF / FLAT / HPF
Selectable Input Mode: 2CH / 4CH
Dimensions: 9.7” x 4.0” x 1.46” (230.5 x 103 x 37.2 mm)

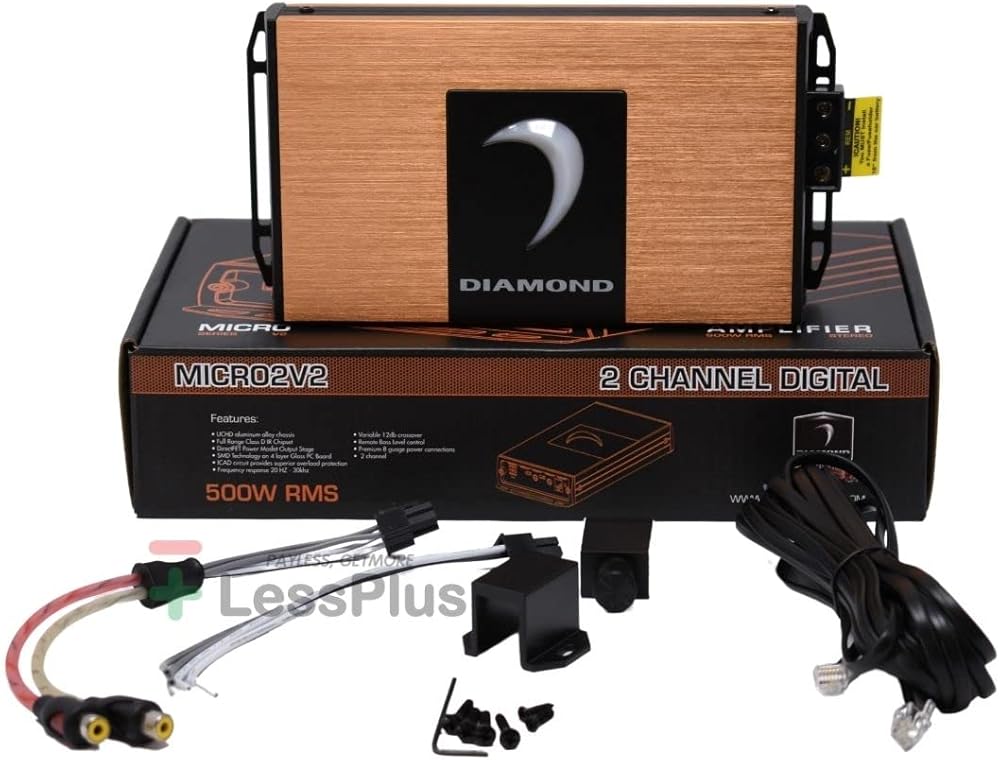

Included Accessories: Disconnected RCA Input & Speaker Output Harness Kits
