Intel Core Ultra 9/7/5 Series Processor, Single Socket LGA-1851(Intel V1 Socket) supported, CPU TDP supports Up to 125W TDP
Up to 256GB Unbuffered ECC/non-ECC UDIMM, DDR5-5600MHz, in 4 DIMM slots
M.2 Interface: 1 PCIe 4.0 x4 and 1 PCIe 5.0x4 (support M.2 Form Factor 2280 only) M.2 Form Factor: 2280/22110 M.2 Key: M-Key
2 M.2 slots (1 PCIe 4.0 x4 from PCH; support 2280/22110, and 1 PCIe5.0 x4 from CPU, support 2280)
وصف

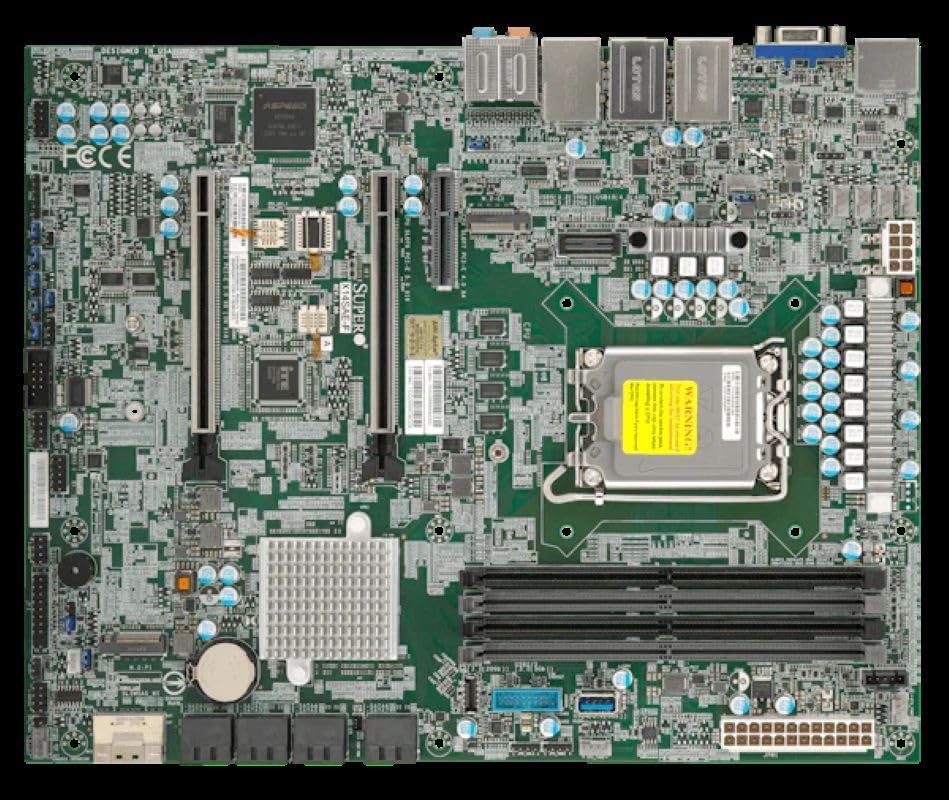

SuperMicro X14SAE-F Motherboard - Intel Arrow lake-S LGA1851 TDP 150W Intel W880 Experience next-level computing performance with the Supermicro X14SAE W880 ATX motherboard. Built around the cutting-edge LGA-1851 V1 socket, this board supports Intel Core Ultra 9/7/5 Series processors with TDP up to 125W. The motherboard features impressive memory capabilities with four DIMM slots supporting up to 256GB of DDR5-5600MHz memory, whether ECC or non-ECC. Storage options are equally robust with dual M.2 slots - one PCIe 5.0 x4 and one PCIe 4.0 x4, supporting 2280/22110 form factors. For expansion, you'll find two PCIe 5.0 x16 slots and one PCIe 4.0 x4 slot. Networking is handled by dual Intel Ethernet controllers - a 2.5 Gigabit i226LM and a 1 Gigabit i219LM with AMT/vPro support. The board includes modern connectivity with HDMI 2.1, DisplayPort 2.1, and Thunderbolt 4.0 Type-C ports, all supporting up to 10 Gbps data rates. Storage is managed by the Intel W880 controller, offering 8 SATA3 ports with RAID 0,1,5,10 support. Built-in TPM 2.0 ensures enhanced security for your system.
