APPLICATION:

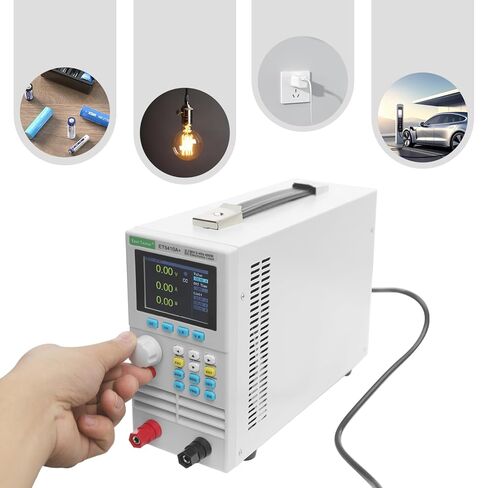

The product is mainly used for testing lighting fixtures, chargers, batteries, internal resistance, switching power supplies, mobile power supplies, lithium batteries, energy vehicles, LED driver power supplies, etc.
It is also suitable for testing on production lines and aging process testing.

SPECS:
Color: White
Material: Aluminum, PCB Electric Board, Silicone
Process: Screen Printing
Mount Type: Free Standing
Assembly Required: No
Channel Type: Single Channel
Plug Standard: US Standard
Power: 400W
Input Voltage: 0-150V
Input Current: 0-40A

Constant Voltage Mode:
Range: 0.1-19.999V, 0.1-150.00V
Resolution: 1mV, 10mV
Accuracy: ±(0.05%+0.02%FS)

Constant Current Mode:
Range: 0-3.000A, 0-40.00A
Resolution: 1mA, 10mA
Accuracy: ±(0.05%+0.05%FS)

Constant Resistance Mode:
Range: 0.05Ω-1kΩ, 1kΩ-4.5kΩ
Resolution: 10mΩ, 100mΩ
Accuracy: ±(0.1%+0.5%FS)

Constant Power Mode:
Range: 0-400W
Resolution: 10mW
Accuracy: ±(0.1%+0.5%FS)

Dynamic Test Function:
Mode: CC, CV
T1&T2: 50ms~60s, 1ms resolution

Battery Test Function:
Discharge Mode: CC, CR
Maximum Discharge Capacity: 9999Ah
Resolution: 1mA, 10mA, 10mΩ, 100mΩ

Voltage Readback Value:
Range: 0~19.999V, 0~150.00V
Resolution: 1mV, 10mV
Accuracy: ±(0.05%+0.1%FS)

Current Readback Value:
Range: 0~3.000A, 0~40.00A
Resolution: 1mA, 10mA
Accuracy: ±(0.05%+0.1%FS)

Power Readback Value:
Range: 0~400W
Resolution: 10mW
Accuracy: ±(0.1%+0.5%FS)

Over-voltage Protection: >155V Cut Off Input
Over Current Protection: >42A Cut Off Input
Over Power Protection: 420W
Over Temperature Protection: 85℃/185℉
Voltage (CV) Short-circuit Range: 0V

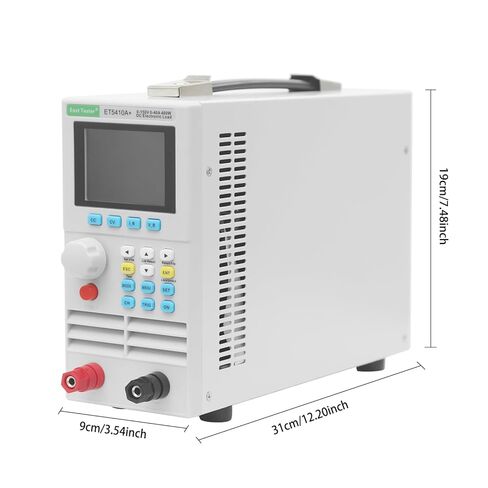

Product Overall Size: 31*9*19cm/12.2*3.54*7.48in
Package Size: 40*28*20cm/15.75*11.02*7.87in
Gross Weight: 3.8kg/8.38lbs
Net Weight: 3.61kg/7.96lbs

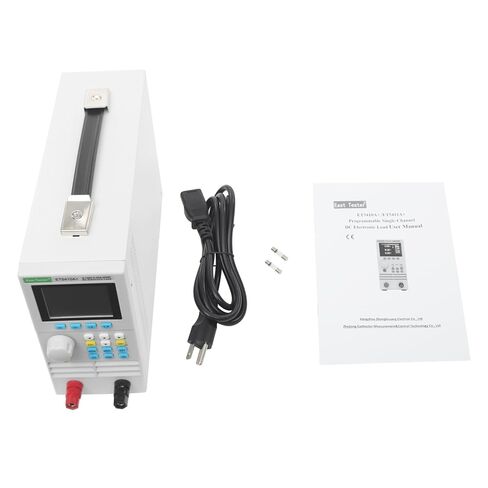

PACKAGE INCLUDED:
1* Electronic Load Tester
1* English Manual
1* Power Cord
