Please note: This is a barebone only. A system memory, a storage drive and an operating system are needed to complete this system
Model Number: HUNSN PW12
Panel: 10.1 Inch TFT LED screen industrial grade panel
CPU: Intel I5 Gen. 4th CPU, ship one of them
Memory: 1 x SODIMM DDR3L 1333/1600, max. to 8GB RAM
Storage: 1 x mSATA SSD

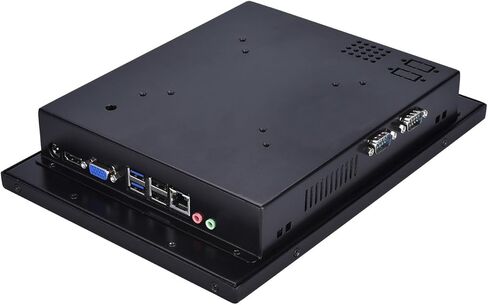

I/O: 12V DC, HDMI, VGA, 2 x USB3.0, 2 x USB2.0, LAN, AUDIO-IN&OUT, 2 x COM, POWER_SW
Expansion: Mini PCIE slot for WiFi/4G, with sim slot
Cooling System: Aluminum alloy, fanless
Dimension: 270 x 192 x 47mm
Weight: 3.0kgs
Opening Hole: 227 x 183mm
Resolution: 1024 x 600
Perspective: 45(L), 45(R), 15(T), 35(B)
Brightness: 200cd/m2
Contrast: 400
Backlight Life: 10,000 hours/min.
Touch Screen: Resistive touch screen
Durability (Touch Count): 5 million times
Operating Temperature: 0 ~ 50°C with SSD, 0 ~ 40°C with HDD
Storage Temperature: -20°C ~ 60°C
Operating Humidity: 10% ~ 95% @ 40°C without condensation
EMC/Safety: CCC
Power Supply: DC100-240V AC/50-60Hz, 12V
Packing List: HUNSN PW12 Panel PC, Power Supply, Power Cord, Embedded Buckle Kits, Warranty Card
System Support: Windows 10/11, Linux Ubuntu etc
