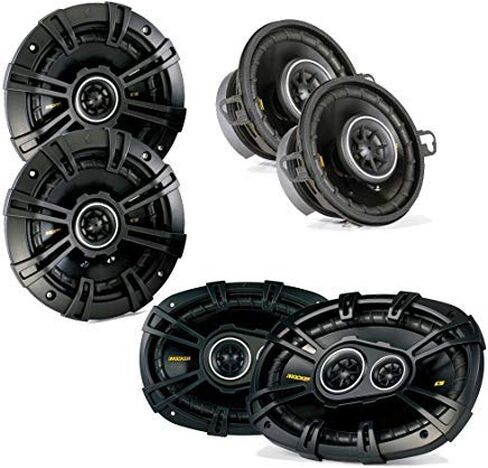

This bundle includes a pair of Kicker CS 6x9" coaxial speakers, a pair of Kicker CS 5.25" coaxial speakers, and a pair of Kicker CS 3.5" Coaxial speakers. Simple splicing of wires required for installation. Barrell connectors included.
*This bundle does not fit Mega Cab for Dodge Ram.

Kicker CS Series 6x9 Speakers 46CSC694
Speaker Design - 3 - way
Woofer Size | in [mm] - 6x9 [160x230]
Mid Size | in [mm] - 2 [50]
Tweeter Size | in [mm] - 1/2 [13]
DC Resistance | ohm - 3.5
Peak Power | Watts - 450
Continuous Power | Watts, RMS - 150
Sensitivity [SPLo] | dB @ 1W, 1m - 92
Effective Frequency Range | Hz - 30-20k
Mounting Hole Diameter | in [mm] - 5 5/8 x 8 7/16 [143x215]
Top Mount Depth | in [mm] - 7/16 [12]
Bottom Mount Depth | in [mm] - 3 3/16 [81]
Tweeter Protrusion | in [mm] - 1/16 [1]
Grilles - Yes

Kicker CS Series 5 Coaxial 46CSC54

Speaker Design - 2 - way
Woofer Size | in [mm] - 5 1/4 [130]
Tweeter Size | in [mm] - 1/2 [13]
DC Resistance | ohm - 3.4
Peak Power | Watts - 225
Continuous Power | Watts, RMS - 75
Sensitivity [SPLo] | dB @ 1W, 1m - 90
Effective Frequency Range | Hz - 45-20k
Mounting Hole Diameter | in [mm] - 4 1/2 [115]
Top Mount Depth | in [mm] - 1/4 [7]
Bottom Mount Depth | in [mm] - 1 3/4 [45]
Tweeter Protrusion | in [mm] - 0
Grilles - Yes

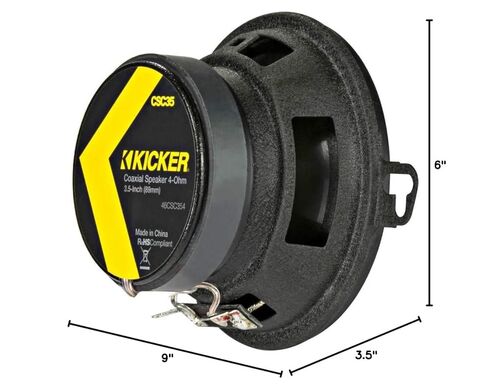

Kicker CS Series 3.5 Coaxial 46CS354
Speaker Design 2 - way
Woofer Size | in [mm] 3 1/2 [89]
Tweeter Size | in [mm] - 1/2 [13]
DC Resistance | ohm - 3
