Please note: This is a barebone only. A system memory, a storage drive and an operating system are needed to complete this system

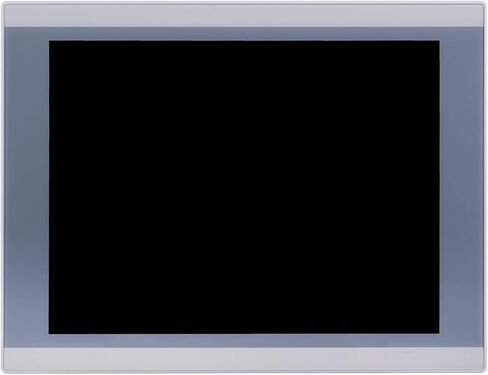

Model Number: HUNSN PW24
Panel: 12.1" TFT LED panel, front panel protection IP65
CPU: Intel Celeron Processor J1900 (2M Cache, up to 2.42 GHz)
Memory: 1 x SODIMM DDR3L 1333, max. to 8GB RAM
Storage: 1 x mSATA SSD, 1 x 2.5" SATA SSD/HDD
I/O: 12V DC, VGA, 3 x COM, USB3.0, 3 x USB2.0, LAN, AUDIO-IN&OUT, POWER_SW
Expansion: Mini PCIE slot for WiFi/4G, with sim slot
Watchdog Timer: 255
Cooling System: Aluminum alloy, fanless
Dimension: 306.8 x 235.12 x 54.5mm
Weight: 3.1kgs
Opening Hole: 301 x 229mm
Resolution: 1024 x 768
Perspective: 80(L), 80(R), 80(T), 80(B)
Brightness: 350cd/m2
Contrast: 1000
Backlight Life: 30,000 hours (min.)
Touch Screen: 10-point projected capacitive touch screen
Transmittance: 86±5% at 550 nm wavelength
Durability (Touch Count): 200 million times
Installation: Embedded recommended/Wallmounted/Desktop/Cantilevered etc
Operating Temperature: 0 ~ 50°C with SSD, 0 ~ 40°C with HDD
Storage Temperature: -20 ℃ ~ 60 ℃
Operating Humidity: 10% ~ 95% @ 40 ℃ without condensation
EMC: CCC
Power Supply: DC100-240V AC/50-60Hz, 12V
Packing List: HUNSN PW24 Panel PC, Power Supply, Power Cord, Embedded Buckle Kits, Warranty Card
System Support: Windows 10/11, Linux Ubuntu etc
