Please note: This is a barebone only. A system memory, a storage drive and an operating system are needed to complete this system
Model Number: HUNSN PW19

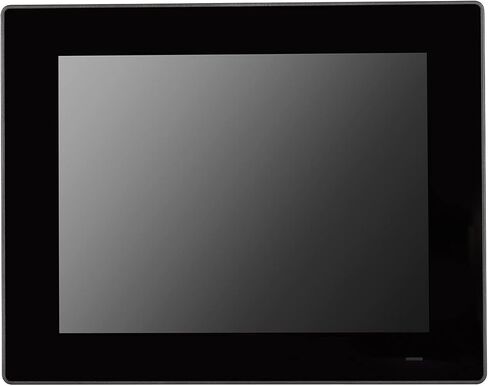

Panel: 12.1 Inch TFT XGA LED screen industrial grade, front panel protection IP65
CPU: Intel I5 Gen. 3th CPU, ship one of them
Memory: 1 x SODIMM DDR3L 1333/1600, max. to 8GB RAM
Storage: 1 x mSATA SSD, 1 x 2.5" SATA SSD/HDD

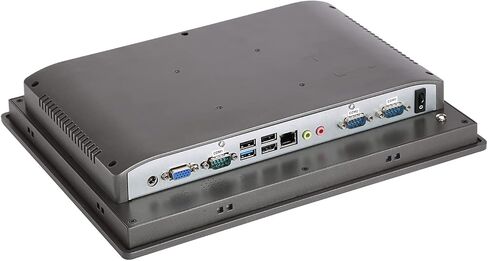

I/O: 2 x USB3.0, HDMI, VGA, 2 x USB2.0, LAN, AUDIO-IN&OUT, 12V DC, 2 x COM, POWER_SW
Expansion: Mini PCIE slot for WiFi/4G, with sim slot
Cooling System: Aluminum alloy, fanless
Dimension: 392.4 x 313.6 x 54.9mm
Weight: 4kgs
Opening Hole: 311 x 240mm
Resolution: 1024 x 768
Perspective: 80 (left), 80 (right), 80 (up), 80 (down)
Brightness: 400cd/m2
Contrast: 800
Backlight Life: 30,000 hours (Min.)
Touch Screen: 10 Point Projected Capacitive Touch Screen
Transmittance: 86±5% at 550 nm wavelength
Durability (Touch Count): 200 million
Installation: Embedded recommended/Wallmounted/Desktop/Cantilevered etc
Operating Temperature: 0 ~ 50°C with SSD, 0 ~ 40°C with HDD
Storage Temperature: -20 ℃ ~ 60 ℃
Operating Humidity: 10% ~ 95% @ 40 ℃ without condensation
EMC/Safety: CCC
Power Supply: DC100-240V AC/50-60Hz, 12V
Packing List: HUNSN PW19 Panel PC, Power Supply, Power Cord, Embedded Buckle Kits, Warranty Card
System Support: Windows 10/11, Linux Ubuntu etc
