Please note: This is a barebone only. A system memory, a storage drive and an operating system are needed to complete this system

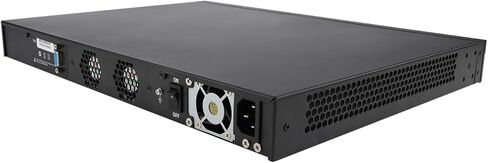

Model Number: HUNSN RJ10
CPU: Intel I7 7700 or the same level replacement cpu, ship one of them
AES-NI Supported: Yes
Chipeset: Intel B150
Memory: 2 x SODIMM DDR4-2133/2400, max. 64gb ram
Storage: 1 x mSata SSD, 2 x 2.5 inch SATA SSD/HDD
I/O Interface: Console, 2 x USB3.0, 8 x LAN, RST, 2 x SFP+ Optical, VGA, Switch
Expansion: 1 x Mini PCIE slot for WiFi/4G, with SIM slot
Chassis: 1u 19 inch cabinet, rackable, with mounting bracket ears, wall hanging, foot pad
Network Card: 8 x Intel I211 10/100/1000m ethernet controller, 2 x sfp+ optical ports, the sfp model is 10Gbe 82599ES
WAN-LAN Throughput: Throughput through 1 gigabit nic from lan to wan forwarding speed is 1Gbps
Throughput through 10 gigabit optical from lan to wan forwarding speed is around 5Gbps or more
Cooling System: The processor uses the ball silent cooling fan to ensure the long time work and stable cooling
Power: 250W 100-240v 50hz/60hz
Size: 440 x 322 x 46mm
Weight: 7kgs
Packing List: HUNSN RJ10 firewall appliance, rackable ears, power cord, warranty card
System Compatibility: Any freebsd based router systems, linux distros, or win.os supported.
Compatibility: firewalls for pfsense, opnsense and other popular open-source software solutions, supports UEFI only
4-12 LAN/WAN Ports, Different CPU, 1U/2U Rackable, 9-15 inch rackable, are available in our shop,
Bookmark HUNSN store, for customization needs and other needs, we shall be glad to supply, contact us to get a timely reply
