Total magnification: 40X-100X-400X-1000X; Eyepieces: widefield WF10X/18; Objectives: achromatic DIN 4X, 10X, 40X (S), 100X (S, Oil); Viewing head: 45 degrees inclined 360 degrees swiveling binocular; Interpupillary distance: sliding adjustable 2-3/16inch ~ 2-15/16inch (55~75mm); Diopter: adjustable on both eyepiece tubes
Total magnification: 40X-100X-400X-1000X; Eyepieces: widefield WF10X/18; Objectives: achromatic DIN 4X, 10X, 40X (S), 100X (S, Oil); Viewing head: 45 degrees inclined 360 degrees swiveling binocular; Interpupillary distance: sliding adjustable 2-3/16inch ~ 2-15/16inch (55~75mm); Diopter: adjustable on both eyepiece tubes
Total magnification: 40X-100X-400X-1000X; Eyepieces: widefield WF10X/18; Objectives: achromatic DIN 4X, 10X, 40X (S), 100X (S, Oil); Viewing head: 45 degrees inclined 360 degrees swiveling binocular; Interpupillary distance: sliding adjustable 2-3/16inch ~ 2-15/16inch (55~75mm); Diopter: adjustable on both eyepiece tubes
Nosepiece: revolving quadruple; Stage: mechanical stain-resistant double layer size 5-1/2inch x 5-1/2inch (140mm x 140mm), translation range: 3inch x 2inch (75mm x 50mm); Focus: coaxial coarse and fine focus knobs on both sides, rack and pinion adjustment, with tension control; Focusing knob can be locked for observation and transportation
Condenser and diaphragm: NA1.25 Abbe condenser with iris diaphragm and filter holder, rack and pinion adjustment; Black palm rest on the base; Illumination: transmitted (lower), 6V 20W halogen light, variable intensity
Metal framework; Power supply: 100V~240V 50/60Hz worldwide range (US and Canada power plug)
5-year warranty against manufacturing defects
Description

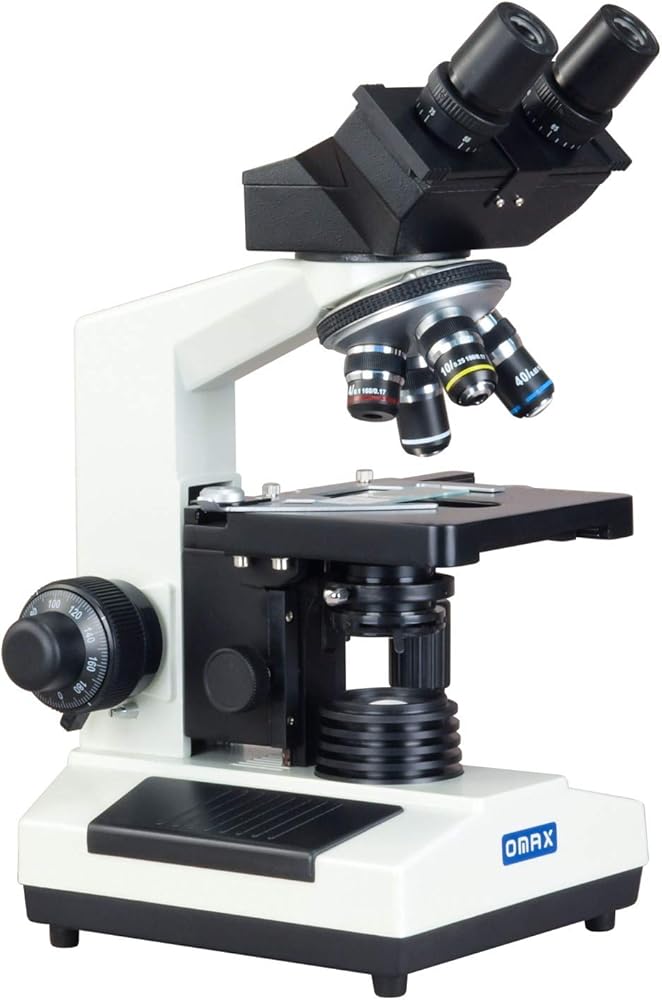

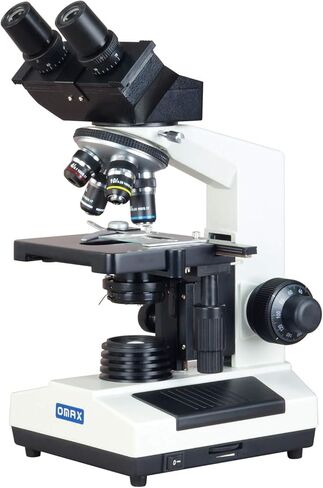

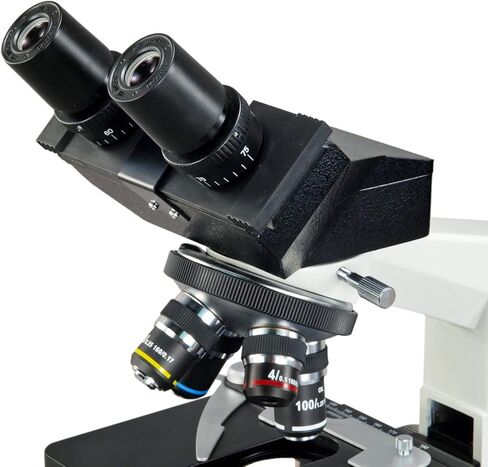

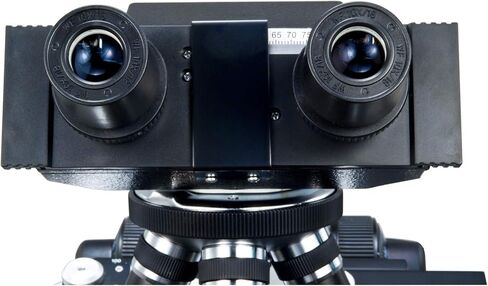

This is a professional binocular compound microscope with the power range from 40X to 1000X. The compound microscope comes with a 45 degree inclined 360 degree sliding binocular head, body frame, revolving quadruple nosepiece, a pair of widefield eyepieces WF10X/18, four DIN achromatic objectives: 4X, 10X, 40X (spring), 100X (spring,oil), large double layer mechanical stage, Abbe NA1.25 condenser with iris diaphragm and a halogen illumination system. It's capable to add USB camera, darkfield condenser or phase contrast condenser, e.g. All lenses are made of high quality optical glass. The high resolution image in the field of view is crystal clear and will satisfy the demands of professionals. This binocular microscopy is good for teaching, demonstration, clinical examination and research purpose.
