Industrial Serial Server RS485 to RJ45 Ethernet with PoE Function, TCP/IP to Serial, DC 6~36V or PoE Power Supply, RS485 and ETH Bi-Directional Data, Support PoE Ethernet Port + Electrical Isolation
There are servel Versions of RS485 TO ETH. This is RS485 TO POE ETH (B) Version, 6 ~ 36V DC screw terminal, or PoE port power supply. PoE Ethernet Port + Electrical Isolation.
Bi-directional transparent data transmission between RS485 and Ethernet. Support Rail-mount---Easy to combine multi rail-mounted serial server together, more freely.
Support Modbus gateway---Suitable for Modbus gridding upgrade, can be used with 3D configuration software. Multi communication modes---Supports TCP server / TCP client / UDP mode / UDP multicast.
MQTT/JSON to Modbus---More flexible conversion between different protocols. Multi Hosts Roll-Polling Support---Different network devices will be identified and responsed respectively, no more crosstalk issue while communicating with multi network devices.

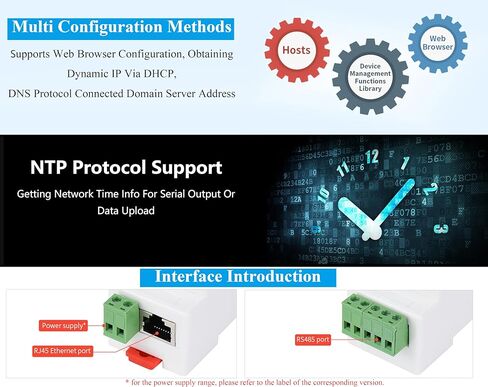

NTP Protocol Support---Getting network time info for serial output or data upload. Multi Configuration Methods---Supports Web browser configuration, obtaining dynamic IP via DHCP, DNS protocol connected domain server address.
Comes with Online Development Resources /User Manual, please follow there: bit.ly/40Vviws
Industrial Isolated RS485 to RJ45 Ethernet Serial Server, TCP/IP to Serial, 6~36V Power Supply, Support Rail-Mount/Modbus Gateway, TCP Server/TCP Client/UDP Mode, with Electrical Isolation
KWD 11.500
