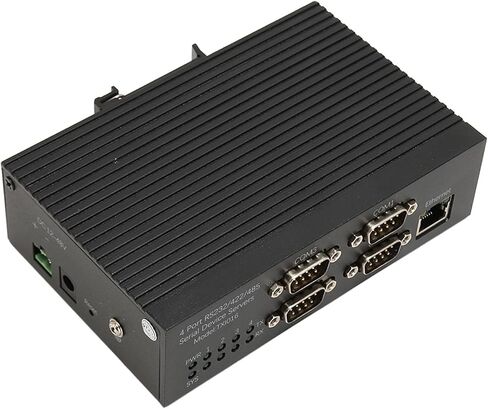

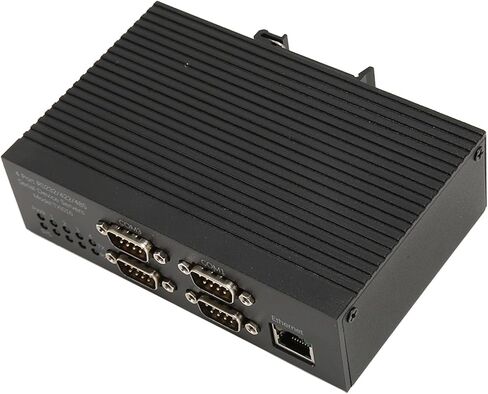

1. 4 SERIAL PORT DESIGN: The serial server has four RS232 RS485 RS422 composite ports (using adapters), which can be connected to four different serial port devices at the same time, and the communication parameters of each port are set separately to meet the communication management requirements of multi serial port devices
2. STABLE AND EFFICIENT: Serial port server is equipped with 32 bit high performance ARM processor and adopt imported serial port chip and original driver to make data more stable
3. HIGH SPEED TRANSMISSION: Serial device server complies with IEEE 802.3 standard and support 10/100Mbps Ethernet transmission rate to ensure high speed and stable network communication
4. WIDE BAUD RATE RANGE: The serial server support any baud rate ranging from 3000bps to 921600bps, and is compatible with different rate requirements of various serial port devices
5. ADAPT TO WORK MODE: Serial server support VCOM, TCP Server, TCP Client, UDP, Paired Master or Slave, Reverse Telnet, RFC2217, TCP IP and other working modes to meet various network communication requirements

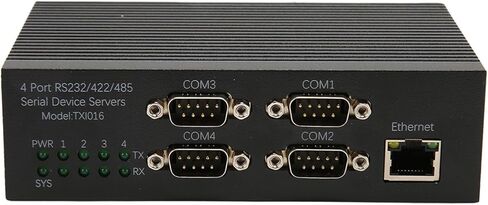

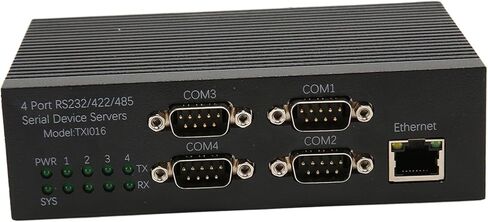

6. POWERFUL INDICATORS: The industrial serial server has power, system status, Link act, and TX RX indicators, which visually display the working status of the device and facilitate real time monitoring and management

Specification:
Item Type: Serial Server
Material: Iron
Network Standards: IEEE 802.3, IEEE 802.3U, IEEE 802.3x
Network Transmission Rate: 10/100Mbps(full duplex or half duplex)
Network Interface: 1 x 10/100M adaptive RJ45 port
Baud Rate: 3000bps to 921600bps, any baud rate is supported
UART Interface: 4 x RS232 or 4 x RS485 and RS422 composite ports(using adapters)
UART Working Mode: VCOM, TCP Server, TCP Client, UDP, Paired Master or Slave, Reverse Telnet, RFC2217, TCP IP
Indicators: Power, System Status, Link/act, TX/RX

How to Use:
Plug and play

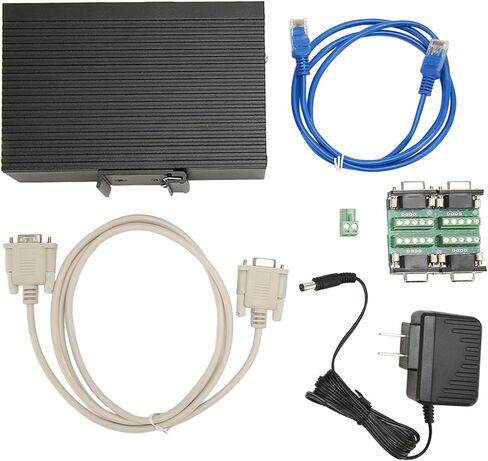

PackageList:
1 x Serial Server
1 x Data Cable
1 x Network Cable
1 x Adapter
1 x Adapter Terminal
1 x User Manual
1 x Power Adapter
