xDuoo XD05 Bal2 Portable HiFi Balanced DAC Headphone Amplifier -6.35/4.4 1500mW Output USB/Opt/Coax/AES/BT Input

KWD 154.500
Brand
KGUSS
Weight
0.8 kg
– 1 +

Special Features

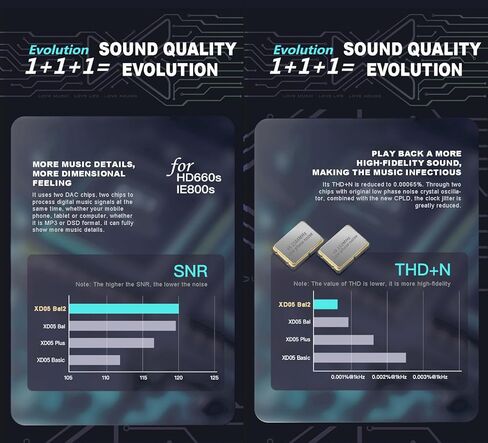

  • MORE MUSIC DETAILS,MORE DIMENSIONAL FEELING: It uses two DAC chips, two chips to process digital music signals at the same time, whether your mobile phone, tablet or computer, whether it is MP3 or DSD format, it can fully show more music details.
  • PLAY BACK A MORE HIGH-FIDELITY SOUND,MAKING THE MUSIC INFECTIOUS: Its THD+N is reduced to 0.00065%. Through two chips with original low phase noise crystal oscillator, combined with the new CPLD, the clock jitteris greatiy reduced.

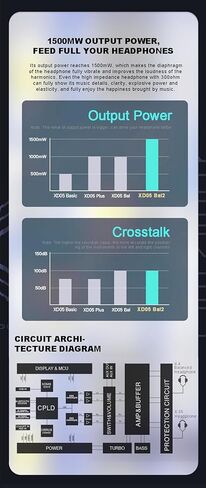

  • 1500MW OUTPUT POWER, FEED FULL YOUR HEADPHONES: Its output power reaches 1500mw, which makes the diaphragm of the headphone fully vibrate and improves the loudness of the harmonics. Even the high impedance headphone with 300ohm can fully show its music details, clarity, explosive power and elasticity, and fully enjoy the happiness brought by music.

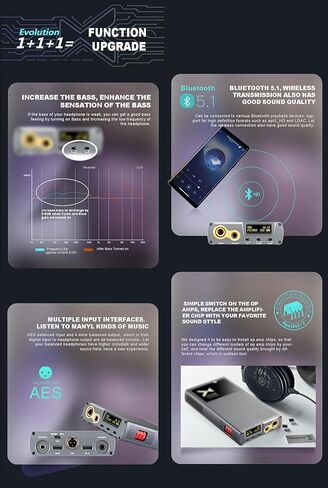

  • INCREASE THE BASS, ENHANCE THE SENSATION OF THE BASS: If the bass of your headphone is weak, you can get a good bass feeling by turning on Bass and increasing the low frequency of the headphone.
  • MULTIPLE INPUT INTERFACES, LISTEN TO MANYL KINDS OF MUSIC: AES balanced input and 4.4mm balanced output, which is from digital input to headphone output are all balanced circuits, Let your balanced headphones have higher crosstalk and wider sound field, have a new experience
  • BLUETOOTH 5.1, WIRELESS TRANSMISSION ALSO HAS GOOD SOUND QUALITY: Can be connected to various Bluetooth playback devices, support for high definition formats such as aptX_HD and LDAC, Let the wireless connection also have good sound quality.
  • SIMPLE SWITCH ON THE OP AMPS, REPLACE THE AMPLIFIER CHIP WITH YOUR FAVORITE SOUND STYLE: We designed it to be easy to install op amp chips, so that you can change different models of op amp chips by yourself, and hear the different sound quality brought by different chips, which is endless fun!

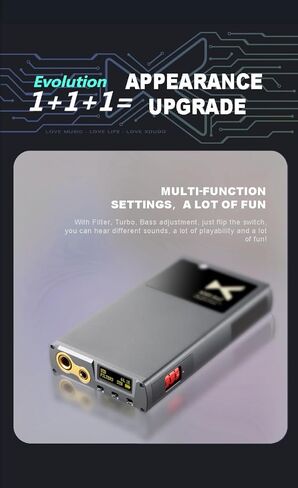

  • MULTI-FUNCTION SETTINGS, A LOT OF FUN: With Filter, Turbo, Bass adjustment, just flip the switch, you can hear different sounds, a lot of playability and a lot of fun!
  • SUPPORT FAST CHARGING, RECHARGE THE BATTERY TO 70-80% IN A SHORT TIME: Built-in 5000mah lithium-ion polymer battery, which can playback continuously for more than 12 hours. When it is indoors, it can be powered by external power (EXTE gear), so as to retain the battery power. When it needs to be carried out, its internal battery is also full.

Description

Features

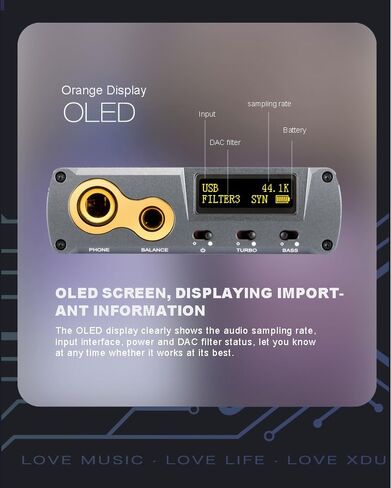

1. With OLED display, real-time display of product working information.
2. The USB receiving chip adopts XMOS's XU316, working in asynchronous transmission mode, supports up to PCM32 Bit/768 kHz, MQA and DSD512.
3. Coaxial/optical supports up to PCM 24Bit/192kHz, DSD64 (DOP).
4. It has one AES input, which is balanced digital input, go to DAC and balanced headphone output, balanced from digital to analog, allowing you have a new experience.
5. Support decoding USB audio of IOS or Android phone, support up to 32 Bit/768kHz, MQA and DSD512.
6. Bluetooth chip uses Qualcomm's QCC5125, supports Bluetooth 5.1, supports APTX, APTX_LL, APTX_HD, LDAC formats.
7. The DAC chip uses two ESS' ES9038Q2M, with better decoding performance, extremely low noise and higher resolution, which greatly improves the sense of sound.
8. Using dual active low-phase noise crystal oscillators, data shaping processing through FPGA achieves a unified clock and reduces jitter.
9. Built-in filter circuit and high-efficiency power conversion circuit, optimize the power supply design through the LDO circuit, and separately supply power to the decoder chip, LPF, amplifier, XMOS, and digital receiver chip.
10. The amp circuit adopts the OP+BUF architecture, the output power reaches 1500mW, and the power is strong, which can easily promote many kinds of headphones.
11. The amp chip can be replaceable by yourself, different chips bring different sound quality.
12. External Turbo to adapt to headphones with different impedances.
13. Hardware-accelerated bass switch brings the magnificent scenes in games and action movies.
14. External DAC filter settings, SRC settings, a lot of playability.
15. The external power selection switch can be used at home or office, and switch to the internal battery when going out, so you don' t worry about battery life when you are carrying it.
16. 4.4 Balanced phone jack, more reliable contact, all balanced circuit, with higher S/N and dynamics, the sense of sound is improved.

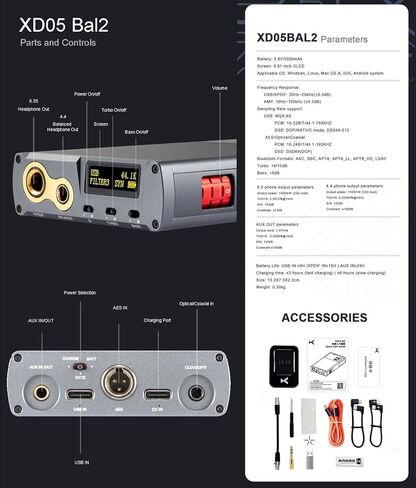

XD05 BAL2 Parameters

Battery: 3.8V/5000mAh
Screen: 0.91 inch OLED
Applicable OS: Windows, Linux, Mac os X, Ios, Android system
Frequency Response:
USB/SPDIF: 20Hz~20kHz(±0.5dB)
AMP: 10Hz~100kHz (±0.5dB)
Sampling Rate support:
USB:
MQA: 8X
PCM: 16-32BIT/44.1-768KHZ
DSD: DOP/NATIVEmode, DSD64-512
AES/Optical/Coaxial:
PCM: 16-24BIT/44.1-192KHZ
DSD: DSD64(DOP)
Bluetooth Formats: AAC,SBC,APTX,APTX_LL,APTX_HD,LDAC
Turbo: +6/15dB
Bass: +6dB

6.5 phone output parameters:
Outputpower: 1500mW(32Ω load)
THD+N: 0.0012%@1kHz
S/N: 120dB
Crosstalk: ≥72dB

4.4 phone output parameters:
Outputpower: 1500mW(32Ω load)
THD+N: 0.00065%@1kHz
S/N: 120dB
Crosstalk: ≥100dB

AUX OUT parameters:
Output level: 2.0Vrms
THD+N: 0.0008%@1kHz
S/N: 120dB
Crosstalk:≥100dB

Battery Life: USB IN≥9H | SPDIF IN≥15H | AUX IN≥24H
Charging time: ≤3 hours (fast charging) | ≤6 hours (siow charging)
Size: 13.2X7.5X2.2cm
Weight: 0.30kg

Package List
1pcs XD05 Bal2
1pcs 6.35 to 3.5 Converter
1pcs Type-C USB Cable
1pcs USB A to Type-C Converter
1pcs Type-C to Type-C USB cable
1pcs AES cable
1pcs Aluminum Nameplate
10pcs Rubber Feet
1pcs User Manual
1pcs Quality Card
