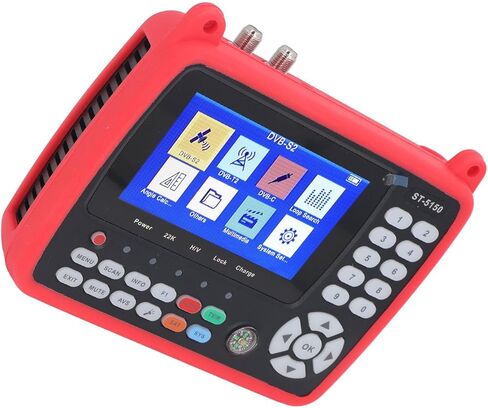

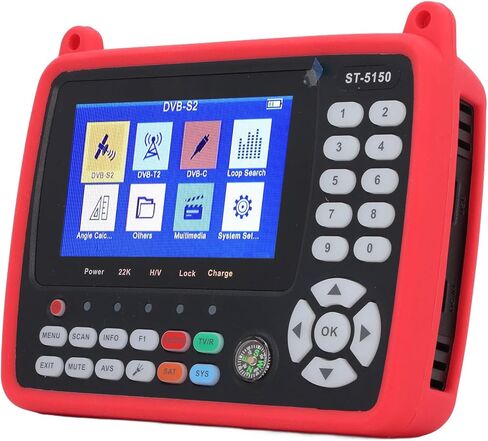

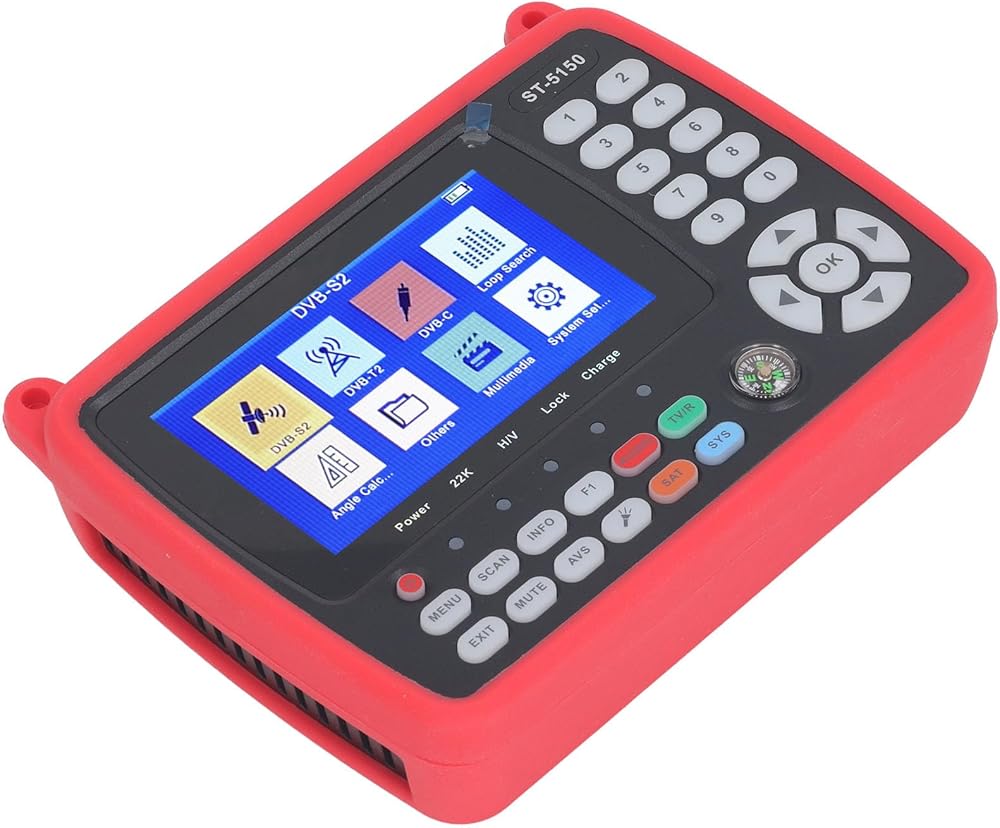

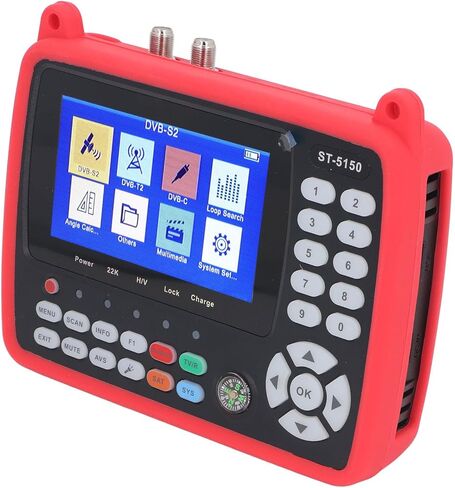

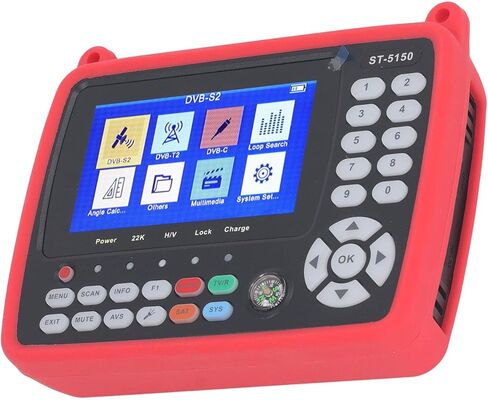

1. ADAPTATION CRITERIA: ST‑5150 is a handheld combination instrument that complies with for DVB‑S 2/S, for DVBT/T2, for DVB‑CH.264/MPEG4AVC, H 265/HEVC standards
2. EXCELLENT PERFORMANCE: Satellite finder is small, light weight, intuitive user interface, long battery life, and rich features, useful and practical
3. ALL INCLUSIVE: The TV signal finder provide all the features needed to install and verify digital satellite TV services, antenna signals and cable TV signals for residential or multi family units
4. AUTOMATIC AND DIGITAL: The satellite finder signal meter support automatic scanning and manual scanning, lock signal sound and light alarm, and automatically calculate AZ and EL angle

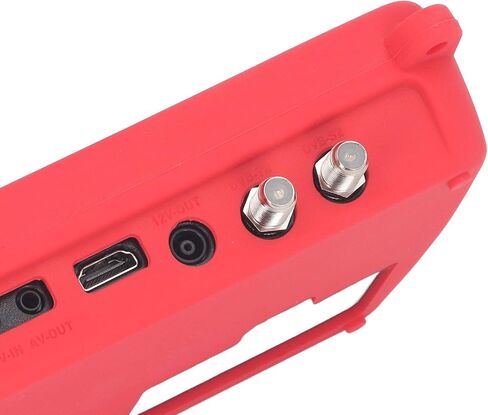

5. INPUT OUTPUT AND PROTECTION: HD satellite finder support DISEQC 1.0/1.1/1.2, Unicable, 0/22kHz tones, AV output and AV input, High Definition Multimedia Interface output, and LNB short circuit protection

Spec:
Item Type: Satellite Finder
Transmission Standard: For DVB-S 2/S, for DVBT/T2, for DVB-CH.264/MPEG4AVC, H 265/HEVC
Connector Type: F type
Band Switch Control: 22KHz
LNB Power Supply: 13V/18V, maximum current 400mA
Demodulation Type: QPSK, 8PSK, 16APSK, 32APSK
Symbol Rate: 2Connector Type: Female type
Demodulation Type: 5V, 12V/24V Imax 100mA
Power Supply: QPSK, 16QAM, 64QAM, 256QAM
LCD Functions:
LCD Type: TFT transmission type
Count: 480(RGB) x 272
Effective Area(WxH): 95.04x53.86mm²
AV Output Interface:
Connector Type: 3.5mm Jack
Video Output: CVBS
Sound Output: Stereo sound L/R output
High Definition Multimedia Interface Output Interface:
Format:
Connector Type: 3.5mm Jack
Sound or Video Processing:
Decoding: MPEG-2 MP at HL, MPEG-1 decoding, MPEG-4 ASPOLS HD resolution, H.264 MP and at L4, H.265/HEVC, HW JPEG decoding
Resolution: PAL-25 frames, 720x576. NTSC-30 frame at 720x480
Video Format: Support the conversion of different video formats
Sound Decompression: 4: 3, 16: 9, via pan scan and mailbox conversion
Sound Output Mode: Stereo, mono, R/L
Data Service Port:
Connection: USB
Data Protocol: USB2.0 interface
File Management System: NTFS, FAT32, FAT16
File Format: Wma, mp3, mp4, avi, jpg, jpeg, bmp,
Power Supply:
Lithium Battery: 1 x 7.4V lithium battery 2600mAh
Energy Consumption: Maximum 10W

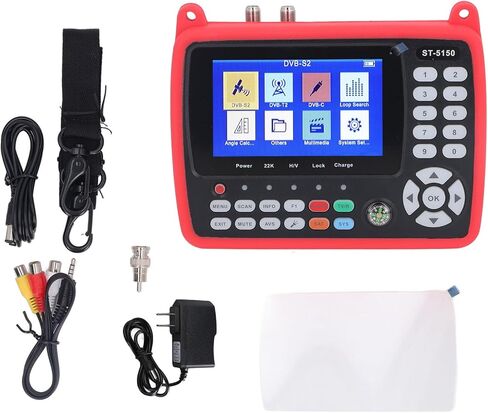

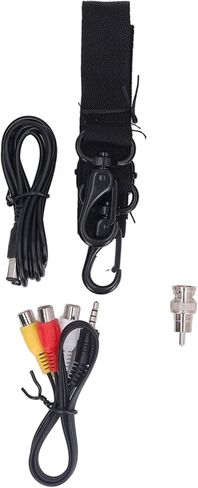

packing list:
1 x Satellite Finder
1 x Connecting Cable
1 x Plug
1 x Connector
1 x Strap
1 x Screen Protector
1 x User Manual
1 x Accessory

Notice:
1. Place the instrument in a well ventilated, clean space.
2. Do not cover the instrument or place on a hot device.
3. Do not expose the device to extreme heat, cold, or humidity.
4. Do not allow liquids or any other substances to enter the device.
