Please check part MR7MR UPA2015 for functionality and compatibility with your equipment. NOTE THAT THIS MODULE HAS A LOW PROFILE BRACKET ONLY.
PCI Express Base Specification Revision 3.0 two-lane (x2). Expands dual external USB3.2 Gen2 Super-Speed plus Type-C port (DFP) on the system. Compliant with Universal Serial Bus 3.2 specification Gen2. Compliant with xHCI (eXtensible Host Controller Interface) specifications Revision 1.1.
Supports simultaneous operation of multiple USB 3.2 Gen2/Gen1, USB 2.0 and USB 1.1 devices Supports USB data transfer rate of 10G/5G/480/12/1.5 Mbps. Independent 10G USB PHY for each USB Type-C port. USB port supplies +5VDC / 1.5A power output to USB device with over-current protection.
Compliant with DisplayPort 1.4 spec with HDTV 4K (2160p) resolution and stereoscopic 3D. One USB-C compliant with VESA DisplayPort Alternate Mode for USB Type-C Standard Rev 1.0. Hot-swapping feature allows connect/disconnect device without powering down the system. Driver supports for Microsoft Windows 8.x, 10, and 11 operating systems. Certified by Electromagnetic Compatibility (CE, FCC, VCCI, BSMI) and RoHS approval.
Driver Support Windows 8.x / 10 (X86/X64) /11(Windows in-box driver)
Description

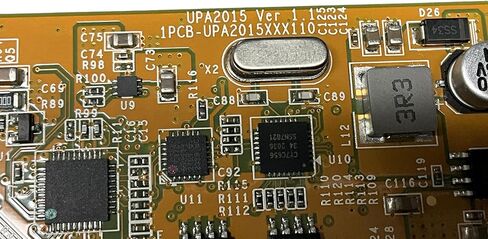

UPA2015 MR7MR-USB3.2 Gen2 10G & DisplayPort Alt-Mode PCI Express Host Card with Dual USB Type-C Receptacles Note low profile bracket only
