Maximum Output Power up to 3000MW With 4-pin XLR and 4.4 balanced output, the output power can reach 3000mW, which can easily drive headphones with impedance from 16-600Ω, so that you can enjoy more sound details in bass, mid-range and treble.
Coaxial/ Optical Decoding Support High Specification Signal. Support the coaxial/optical fiber decoding of various desk-type and portable playersSupport up to PCM 24Bit/192kHz, DSD64.
Bluetooth Decoding, Stable Transmission. Using the Qualcomm QCC5125 receiver chip, support Bluetooth 5.1 technology. Support the SBC, AAC, aptX, aptX_LL, aptX_HD and LDAC formats. Have tube preamp output, connect your amplifier/speaker let it have the tube sound quality.

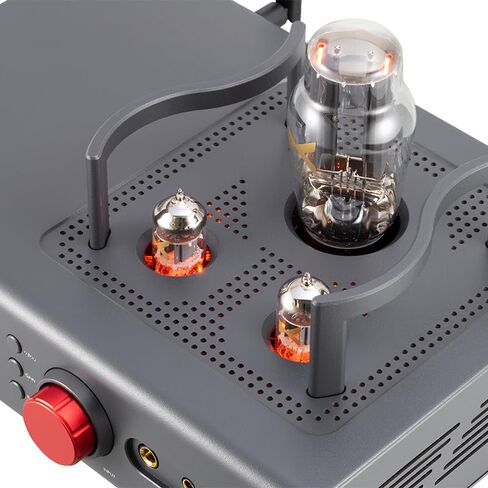

Tube Rectification, Tube Amplification. Adopt 5U4G tube for rectification, make the sound more "tube" sense. Adopt two 12AU7 tubes to process the audio, make the sound sweet and refined.

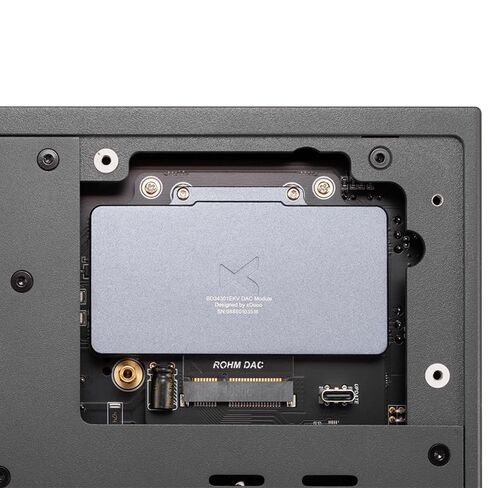

Replaceable DAC Card. The DAC module can be replaced by yourself, and experience thesound quality changes brought about by various top DAC chips.

PARAMETERS

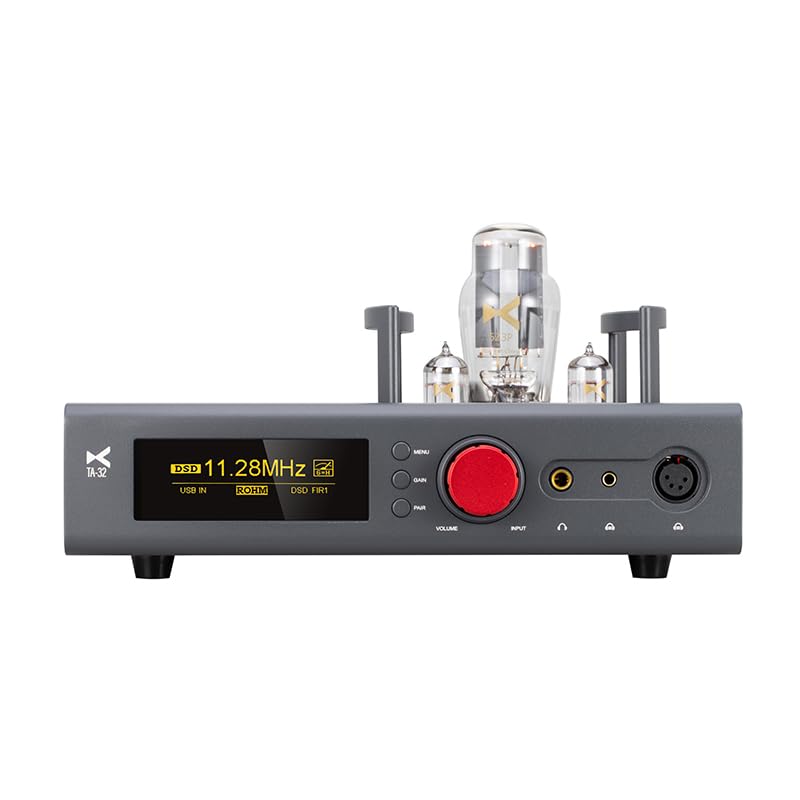

Screen: 3.12 inch OLED
Power Supply: AC100-120V/220-240V

Compliant OS:
Linux, Window, Macos, l0S, Andriod

Sampling Rate Support of USB IN:
PCM: 16~32Bit/44.1k-768kHz
DSD: DSD64~DSD512
MQA: 8X

Sampling Rate Support of OPT/COA IN:
PCM: 16~24Bit/44.1k~192kHz
DSD: DSD64(DOP)

Support Format of Bluetooth:
SBC、AAC、atpX、atpX LL、atpX HD、LDAC

Parameters of 6.5mm Headphone:
Output Power: 2300mW(32Ω)
Frequency Response: 20Hz~60kHz (±0.5dB)
THD+N: SNR: 116 dB
Crosstalk: 75dB

Parameters of 4.4mm and XLR Headphone:
Output Power: 3000mW(32Ω)
Frequency Response: 20Hz~60kHz(±0.5dB)
THD+N: 0.03%
SNR: 118dB
Crosstalk: >104dB

Parameters of AUX OUT
Output Level: 2.0Vrms
Frequency Response: 20Hz~20kHz (±0.5dB)
SNR:117dB
Crosstalk: >108dB
THD+N:0.0007%

Parameters of BAL-LO
Output Level: 4.0Vrms
Frequency Response: 20Hz~20kHz (±0.5dB)
SNR: 125dB
Crosstalk: 113dB
THD+N: 0.0006%

Suitable Headphone lmpedance: 16~600Ω
Size: 31*24*17cm
Weight: 5.2kg
