DSP-01 Portable DSP SDR Radio 100KHz-149MHz,4.3 Inch IPS Touchscreen FM MW SSB CW HAM Shortwave Receiver with 5000mAh Battery,192kHz Spectrum,Waterfall Display

KWD 45.500
Brand
DmgicPro
Category
Portable radios
Weight
318 g
– 1 +

Special Features

  • Based on the SDR architecture: The DSP digital demodulation radio utilizes 16-bit sampling, covering frequencies from 100 KHz to 149 MHz with a step frequency of 1 Hz. It supports various modes including CW, AM, SSB (USB/LSB), WFM, and FM stereo (headphones required), offering exceptional performance for amateur radio enthusiasts with real-time spectrum and waterfall display at 192 kHz.

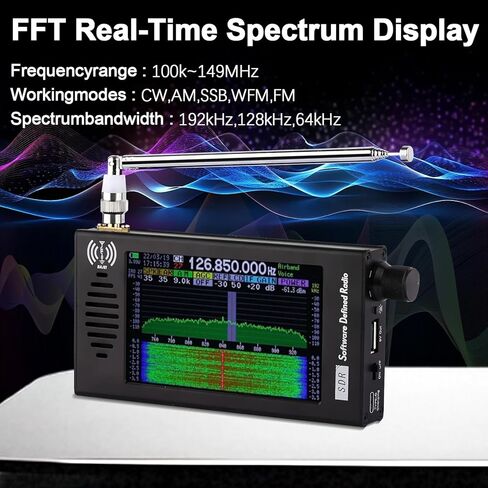

  • 4.3-inch IPS Touch Screen: An 800x480 high-resolution LCD touch screen provides vibrant real-time spectrum and waterfall visualizations, featuring adjustable backlight brightness for a bright and clear display, making it easy to operate.
  • Portable Friendly Design: Constructed with a premium aluminum alloy shell, it is lightweight and compact, ensuring durability. It supports 3.5mm headphones (CTIA standard) and includes a built-in 3W speaker for clear audio playback.

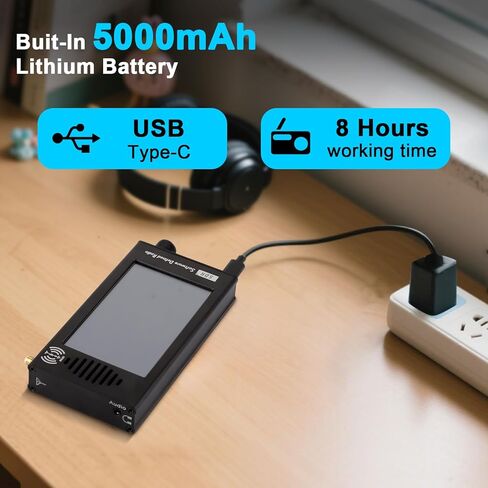

  • 5000mAh Large Capacity Battery: SDR radio equipped with a 5000mAh lithium-ion rechargeable battery and a Type-C 5V/2A charging interface, it offers up to 12 hours of standby time, making it ideal for outdoor work or travel, allowing you to enjoy nature and the radio's fun anytime, anywhere.
  • Enhanced Usability Design: Featuring a resistive touchscreen and rotary encoder control, it has the capability to preset up to 99 channels, including station names and settings, with 99 channel selections available, along with customizable spectrum styles, waterfall displays, and AGC settings.

Description

Specifications:
1. Frequency Range: 100KHz-149MHz
2. Display: 4.3” IPS touchscreen, 800x480 resolution
3. Demodulation Modes: CW, AM, SSB, WFM, FM Stereo
4. Spectrum Bandwidth Options: 192kHz, 128kHz, 64kHz
5. Audio Output: 3.5mm headphone jack, built-in 3W speaker
6. Antenna: SMA Female interface, 50Ω impedance
7. Battery: Rechargeable 5000mAh, 3.7V (10-12 hours usage)
8. Charging Port: USB Type-C, 5V/2A
9. Dimensions: 140x74x22mm
10. Weight: 315g

Product Description:
Discover the next level of radio exploration with this compact DSP SDR Radio Receiver. Designed for amateur radio enthusiasts, hobbyists, and professionals, this device provides comprehensive band coverage from 100KHz to 149MHz, allowing you to tune into CW, AM, SSB, FM, and more with ease.
The 4.3-inch IPS touchscreen offers clear, real-time visualizations of the spectrum and waterfall displays. Housed in a durable aluminum alloy shell, it's built for portability and rugged use. The 5000mAh rechargeable battery ensures up to 12 hours of seamless operation, whether you're on the go or working remotely.

Package Lists:
1. SDR Radio Receiver
2. Retractable Antenna
3. USB Type-C Charging Cable
4. User Manual
5. Touchscreen Pen
