Product specification:
- Model number: TXB022
- Chipset: IP210
- Port number: 1 port 10/100M Auto MDI-MDIX RJ45,1*Com port
- Standard: IEEE 802.3,IEEE 802.3u,IEEE 802.3x,IEEE 802.3az
- Network media: 10Base-T,cat3 or above UTP,10Base-Tx,cat5 UTP
- Data rate: 10/100M
- Forwarding rate: 10 Mbps / 14,880 pps ,100 Mbps / 148,800 pps
- LED Indicator: Link/Act, Power, TX/RX
- Baud rate: 300bps~230400bps

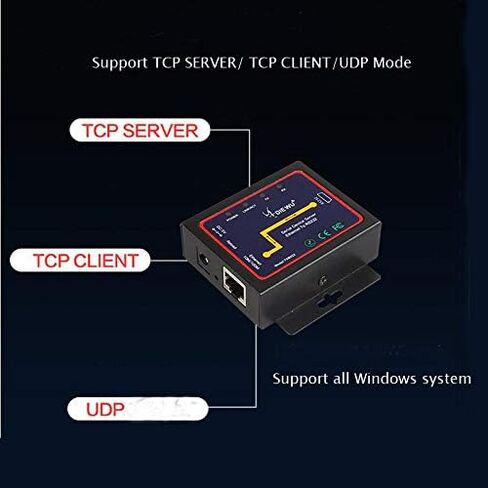

- Operation modes: TCP Server, TCP Client, UDP
- Dimension: 78*72*23mm
- Power Input: DC5V
- Power Consumption: Max1.5W
- Environment
Operating Temperature: -10 ?-55 ?
Relative Humidity: 10%-90%(non-condensing)
Storage Temperature: -40?-85?
Relative Humidity: 5%-90%(non-condensing)
- Other function: Build load default key
