Sherco -Auto 10 نقطة علامة تبويب نوع كتلة توزيع الطاقة الحمر

KWD 11
أسلوب10 نقطة بربار
– 1 +

مميزات خاصة

  • 10 Point Tab Type Red Power Distribution Block Terminal Busbar
  • Marine Grade Power Distribution
  • Tab-Type Busbar. This busbar accepts 'push-on' type quick disconnect terminals. These 'push-on' type terminals greatly increase production speed, and reduce labor costs.
  • Max Amperage: 55 amps @ 12 vdc per tier - 20 amps per connection - Max Voltage: 48 vdc
  • Made in the USA

وصف

Sherco Automotive & Marine Supplies
Part # TTB710N02
Color: Red

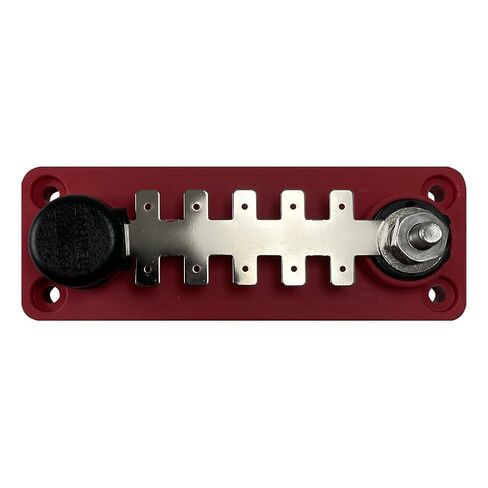

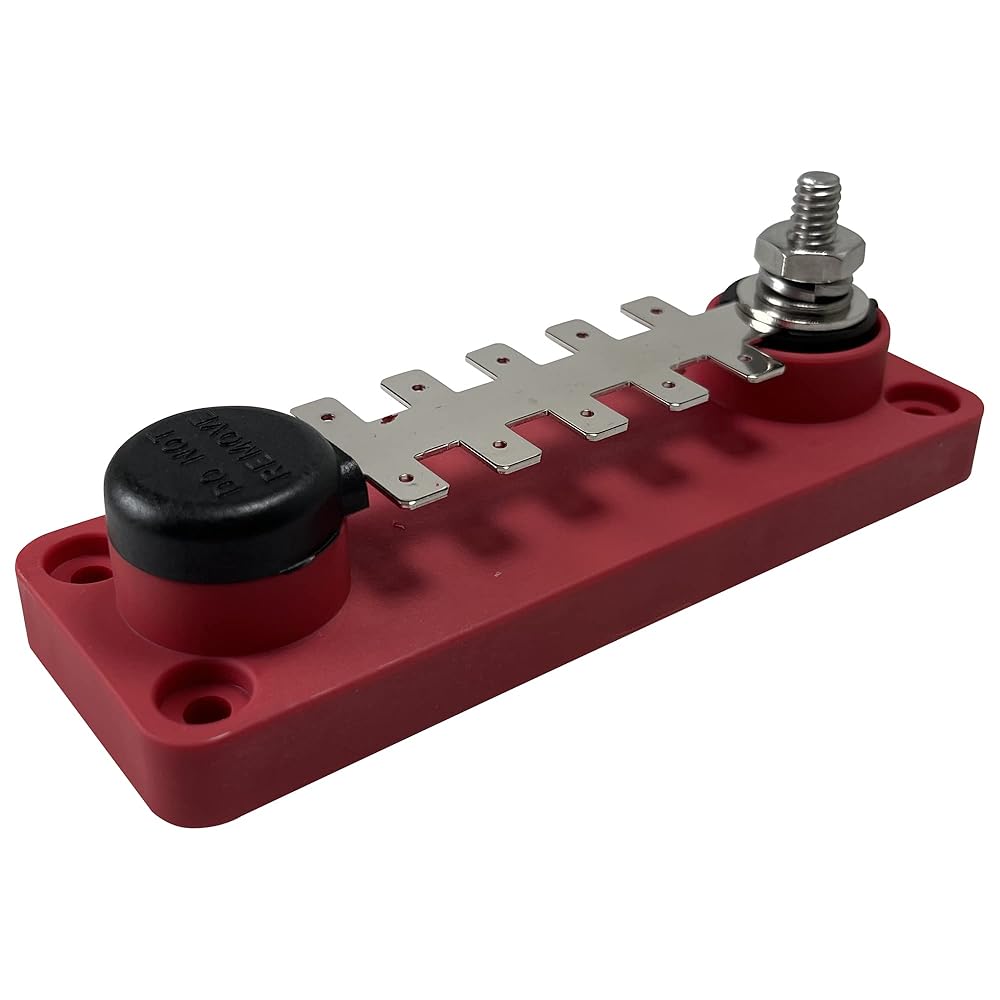

10 Point Tab Type Terminal Busbar
------------

Tab-Type Busbar. This busbar accepts 'push-on' type quick disconnect terminals. These 'push-on' type terminals greatly increase production speed, and reduce labor costs.

- Highly cost effective solution for Fast Busbar Connections

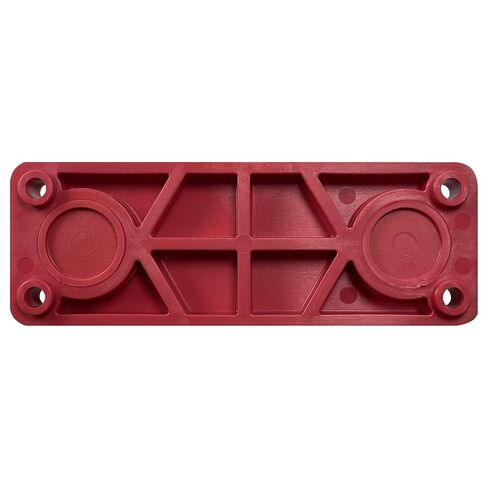

- Base Material : Glass-filled nylon
- Max Amperage: 55 amps @ 12 vdc per tier
- 20 amps per connection
- Max Voltage: 48 vdc
- Base Colors Available : Red
- Optional cover kit protects conductive areas from accidental shorts, complying with ABYC / ISO / USCG requirements
- Connection Post Material : Stainless Steel
- Lock Washer Material : Stainless Steel
- Flat Washer Material : Stainless Steel
- MADE IN THE USA
