Features:
Multifunctionality and High Performance: The controller card integrates a PCI Express bus interface and a 1394b open host controller link layer controller, supporting high-speed data transfer and fully complying with the PCI Express Base Specification 1.1 and IEEE 1394b standards, ensuring users can enjoy exceptional performance and stability.
Broad Compatibility: The controller card supports multiple versions of for Windows, is for Linux systems, and offers compatibility with both for PCs and for Macs, catering to different users' operating system requirements. Additionally, it supports a variety of for FireWire devices, including portable hard drives, DV cameras, digital cameras, and more, facilitating the connection of various peripherals.
High-Speed Data Transfer: Equipped with three fully compliant IEEE Std 1394b cable ports, the controller card supports data transfer rates of 100Mbps, 200Mbps, 400Mbps, and 800Mbps, ensuring users can enjoy smooth and efficient operational experiences when performing tasks such as HD video capture and data transfer.
Intelligent Power Management: The controller card supports multiple power management states such as D1, D2, and D3hot, and employs L0 and L1 states for active-state link power management when data packet activity on the PCI Express link is idle, effectively reducing power consumption and lowering operational costs for users.

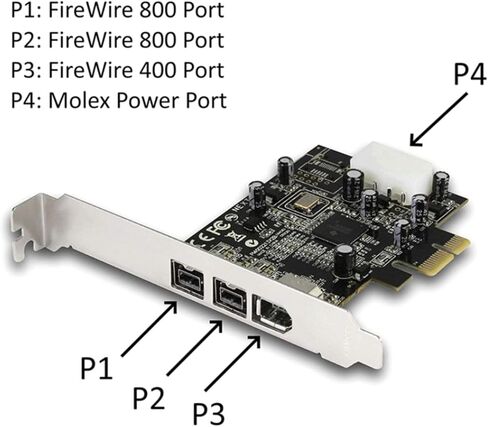

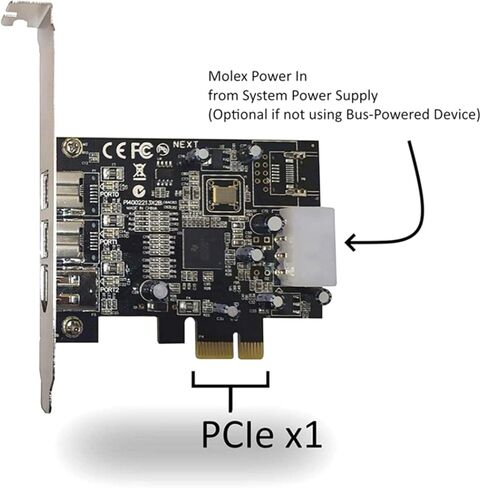

Abundant Interfaces and Expandability: The controller card offers two for FireWire 800 (1394b) ports and one 1394a (6-pin) port, supporting hot-swapping and plug-and-play functionality, allowing users to connect and disconnect devices at any time. Additionally, it includes a built-in 4-pin power connector that provides additional power when connected to the system power supply, ensuring stable device operation.
Reliable Safety Protection: The controller card is equipped with overcurrent protection on each port, effectively preventing device damage or data loss due to excessive current, ensuring user data security and device stability.

Specifications:
Chipset: TI XIO2213A
Interface type: 2*IEEE 1394 B (for FireWire 800) and 1*IEEE 1394 A (6-pin)

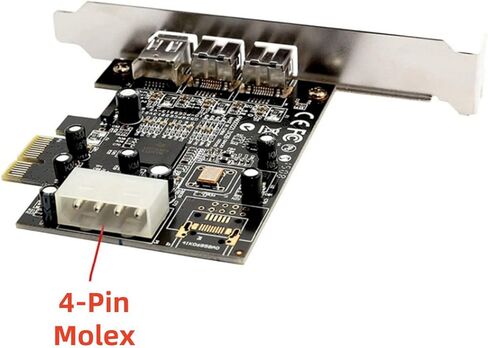

Power supply: 4-pin
Bus interface: PCI Express
Data transmission rate: 100Mbps, 200Mbps, 400Mbps, 800Mbps
Compatibility: For Windows 2000 / XP / Server 2003 / Vista / 7 / 8, for Linux, for PC and for Mac, etc.

Package Included:
1 x Controller Card

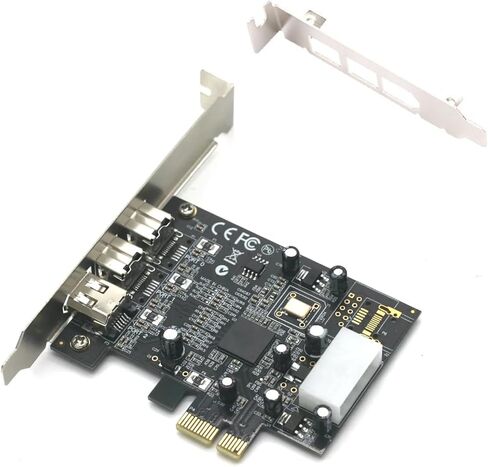

1 x Low Baffle
