DVR Specification:
4K(8MP) high definition live viewing, recording & playback
16CH Analog and 16 CH IP camera input simultaneously
Deep learning-based motion detection 2.0 for all analog channels
Deep learning-based perimeter protection
Up to 32-ch IP camera inputs (up to 8 MP)
H.265 Pro+/H.265 Pro/H.265 video compression
Support TVI/AHD/CVI/CVBS/IPC input. 5 in 1
Supports iPhone、iPad、Android mobile remote monitoring
Up to 10 TB capacity per HDD
Audio via coaxial cable
Video Compression: H.264+/H.264/H.265/H.265+
Video Input: 16CH Analog HD/Analog + 16CH IP(Enhanced IP mode on)
Video Output: CVBS; VGA up to 1080p; HDMI up to 4K
Audio Input/Output: 1/1 RCA
Supported Analog Camera Types: "Support HD TVI Input: 8MP, 5MP, 4MP, 3MP, 1080p@30 fps, 1080p@25 fps;
Support AHD Input: 5MP, 4MP, 1080p@25 fps, 1080p@30 fps;
Support CVI Input: 5MP, 4MP, 1080p@25 fps, 1080p@30 fps;
Support CVBS Input"
HDD: 2 SATA Interface
HDD Capacity: Up to 10 TB Capacity
Working Temperature: 14 °F — 131 °F/-10 °C — 55 °C
Camera Specification:
High quality imaging with 4K, 3840×2160 resolution
2.8 mm fixed focal lens
Up to 25 m IR distance for bright night imaging
Up to 20 m white light distance for bright night imaging
One port for four switchable signals (TVI/AHD/CVI/CVBS)

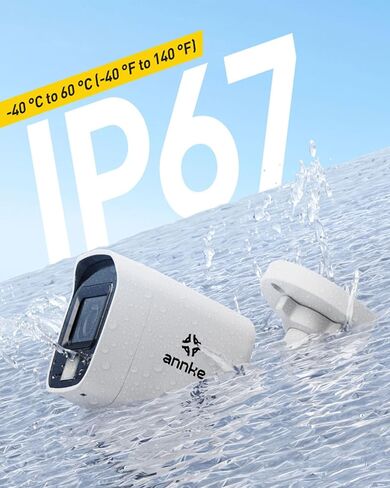

Water and dust resistant (IP67)
Image sensor: 4K CMOS Image sensor
Video Resolution: 3840 (H) × 2160 (V)
Lens: 2.8mm
Angle of View: 2.8 mm, horizontal FOV: 108°, vertical FOV: 59°, diagonal FOV: 127°
Supplement Light Mode: IR light works normally, and it switches to white light when human or vehicle are detected at night.
Operating Temperature: -40 °F – 140 °F /-40 °C – 60 °C
