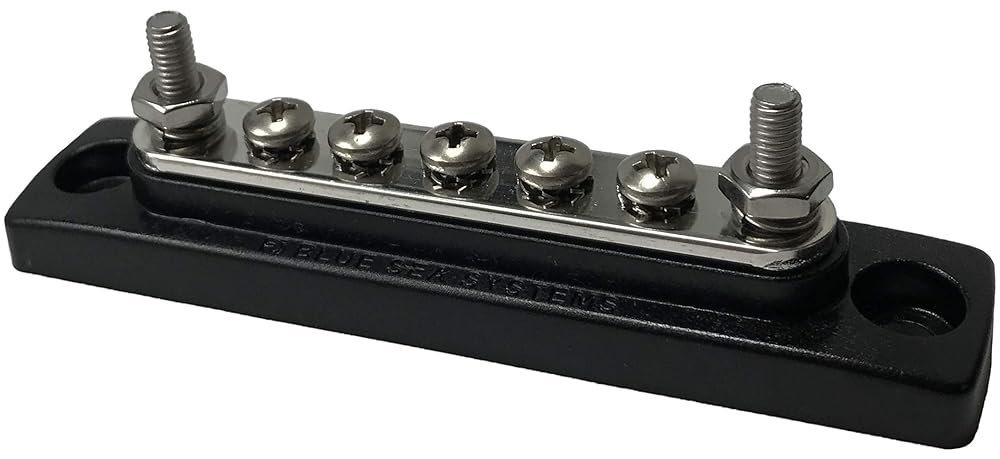

# 2304 Marine Mini Common Bus Bar 5 X #8-32 Screw 5 Gang 100 Amp
Part # 2304 (or #2304B)

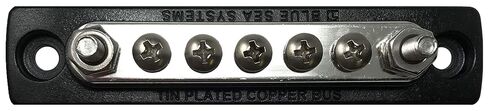

Common Marine Tin Plated Copper Mini BusBar
5 X #8-32 Screw - 100 Amp / 300V AC / 48V DC
Specifications:
Maximum Voltage - 300V AC 48V DC
Number of Screw Terminals - 5
Number of Terminal Studs - 2
Terminal Type - #10-32 Stud #8-32 Screw
Continuous Rating The maximum current a switch is designed to conduct for an indefinite period. 100A

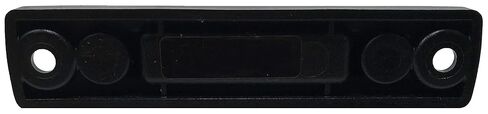

Base Material - UL 94-V0 Rated, Glass Reinforced Thermoplastics
Bus Material - Tin-Plated Copper CDA 110/ UNS11000
Screw Terminal Torque - 15 in-lb (1.69 Nm)
Stud Torque - 18 in-lb (2.03 Nm)
Weight - 0.16lb (0.07 kg)
