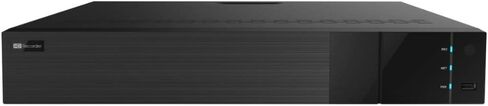

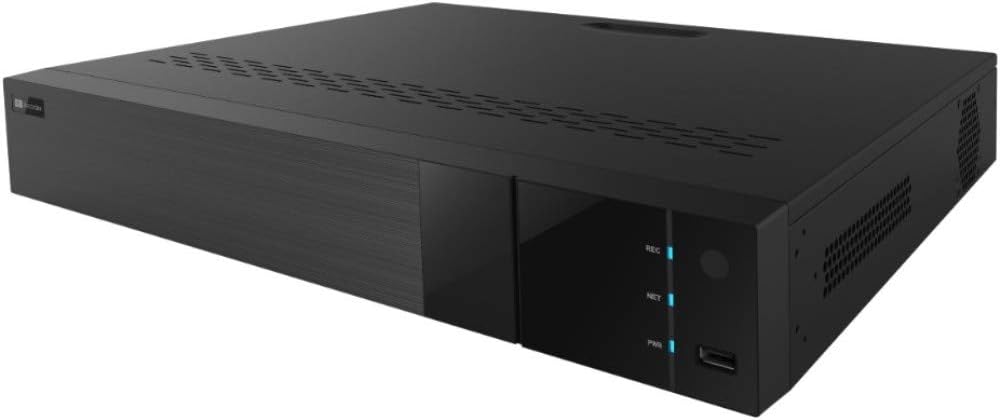

Titanium ED8004H5-F 4-Channel 4K 5-IN-1 TVI/AHD/CVI/960H/IP Digital Video Recorder without Hard Drive, Embedded Linux Operating System, H.265, 4 Audio In/1 Out, HDMI/VGA, 2 USB, RS485
Key Features4CH TVI/AHD video input, support 8MP/5MP/4MP/3MP/1080P/720P/WD1 recording
4CH CVI video input, support 4MP/3MP/1080P/720P/WD1 recording
4CH DVR support 2 CH IPC 8MP/5MP/4MP/3MP/1080P/960P/720P recording
Adopt standard H.265 high profile compression format to get high-quality video at much lower bit rate
Multi-mode recording: manual/timer/motion
4CH simultaneously playback
Search: time slice, time, event (manual, motion), tag search
Express and flexible backup via USB, network and so on
Pentaplex: preview, record, playback, backup and remote access
DHCP, DDNS, PPPoE network protocol, IE browse and CMS supported
Authorization management, log review and device status review
Powerful smart phone & Pad surveillance with iOS and Andriod OS
Brand TVT and Comes with No Logo

SpecificationsMain Processor: Embedded
Operating System: Embedded Linux
Video Compatibility: HD-TVI/AHD/HD-CVI
Video In: BNCx4
IP Camera Input: IPCx2
IPC Frame Rate: 25fps (PAL)/30fps (NTSC)
Video Interface: HDMI/VGA/CVBS
OSD: Yes
Audio In: 4
Audio Out: 1
2 Way Audio: Take up channel one as an audio input
Alarm In: 4
Alarm Out: 1
Alarm Mode: Manual, motion, exception
Trigger Events: Record, snap, preset, e-mail, etc.
Network Bandwidth: 40/40Mbps
RS485: 1
USB: USB 2.0x2
Power Supply: DC12V/4A
Power Consumption: ≤ 10W
Internal HDD: 1xSATA (up to 8TB capacity)
e-SATA: 1
Dimensions: 300x248x52mm
