1 A headphone connection of 3.5 mm has also been added to Pilot All 16-200Ω headphones, to easily listen to the music from the turntable or at night
2 Integrated Food Isolation Circuit, even if the assets are shared with the Audiair reader, there is no common background noise
3 There is an MM MC switch in the lower part, which is easy to select to adjust to different turntable

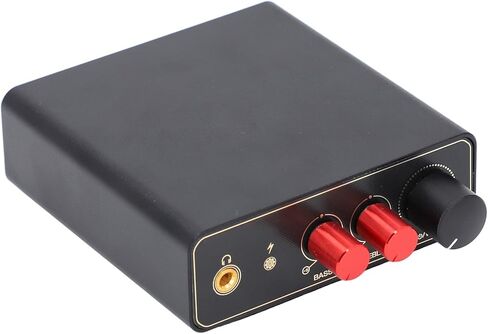

4. Small : the size of the preamplifier of the light turntable is 84x84x28mm, compact design, full aluminum housing, to maximize the insulation of external interference signals, to guarantee a non -destructive transmission,
5

Technical specifications:
Type: Preamplifier for turntable
Model: T14
Audio -input: turntable mm mc

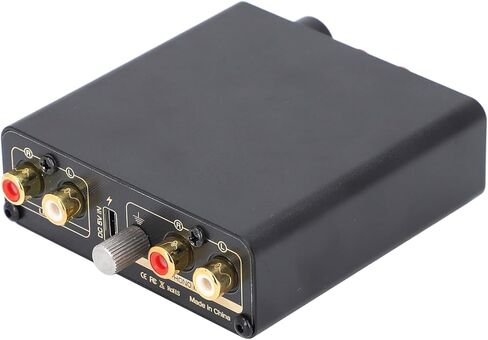

Audio output: Jack AV Stereo or headphone connection 3.5 mm
Access level: 0.005 V RMS (mm), 0.0005 V RMS (MC)
Frequency Response: Compliant with the characteristics Riaa (± 0.5 dB)
High and low tones range: ± 5 dB
Puffy output power: 250 MW at 32 Ω, 100 MW at 64 Ω, 60 MW at 128 Ω
Headphones Impedance interval: 16-200 Ω
Total harmonic distortion: starting level: 0.6 V RMS
SNR:> 80 dB (sound)
Business voltage: CC 5 V (≥0.6 A)
(LXLXA): approx. 84 x 84 x 28 mm/3.31 x 3.31 x 1.1 inch

How to use:
Use according to the image

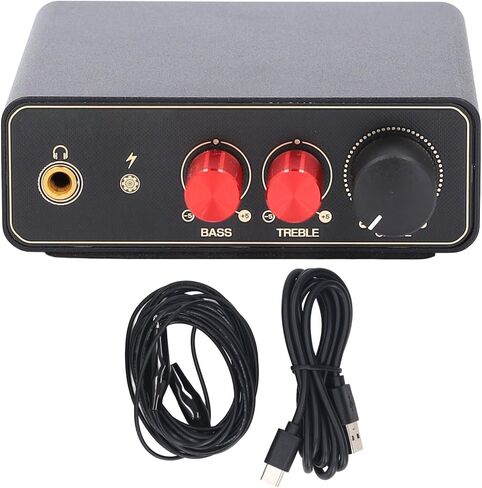

Packing list:
1 preamplifier for turntable
1 USB -Food Cable (Type C)
1 cable with crocodrillo clamp/holder

Remark:
1. 3.5 mm headphones is preferred. If you use the Jack AV -Stereo output, sure that the headphones are disconnected. 2. No DC5V -power adapter delivered, prepare it.
