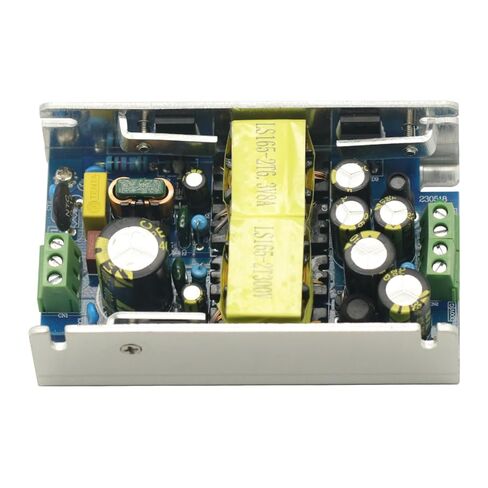

input: 100-265V,
output: filament 6.3V5A, high voltage 300V, current 300MA, (the actual filament according to the design of 8A, high voltage according to the design of 350MA, leave a little more margin). Power supply length 10.3 cm, width 6.6 cm, height 3.5 cm. Filament and high voltage are independent of each other. Suitable for FU-7, 6P3P, EL34 and other medium-power single-ended, For 6P1, 6P14, 6V6, 6P6P, 6L6 and other low-power push-pull machines, other small power single-ended even more. Bass powerful, midrange transparent, treble beautiful, ultra-low bottom noise. Power, good results, the price of conscience, we do not falsely labeled power, but also do not sell away from the price of Pu, power supply with over-current, over-voltage, short-circuit protection, rest assured that the use. Note: Power supply high voltage has its own rectifier filter, burners do not have to add filter capacitors when using, if the old machine transformation, remove the original filter capacitors and inductors can be.
Power supply power, cooling shell should be increased accordingly. 150W will require a very large shell, in the heat dissipation and shell volume between the contradiction. In fact, it is a good solution, the general chassis of the gallbladder is a metal shell, the power supply design is relatively small, installed close to the machine shell, through the chassis to assist in heat dissipation. More than 80W power consumption needs to be strengthened heat dissipation, chassis ventilation, do not put in a very small sealed shell on the line.

Pacakge Included:

1PCS
