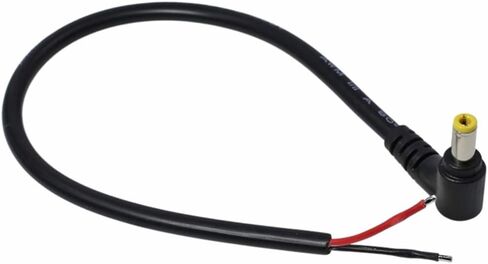

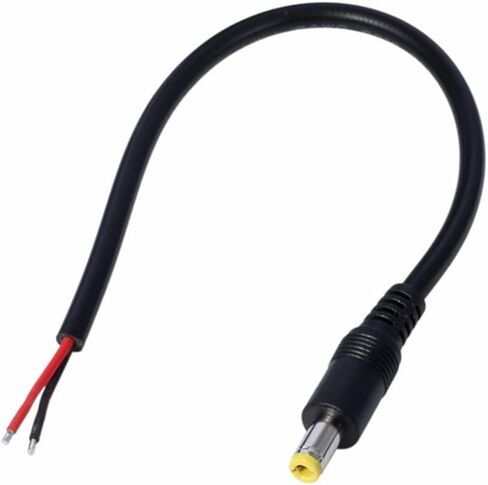

5.5mm X 2.5mm Male Plug Cord Power Pigtails Cable 5525 To Bare Wire Open End Power Supply Cord 25CM/9.84in
Features:
DC5525 5.5mm x 2.1mm power supply male repair cable is widely used for worn or damaged power cord, for routers, camera, and other product
The end of the cable is black and red to indicate the polarity-. 5525 male plug corresponding cable:red to inside, black to external,internal positive and external negative)
It can provide faster and more stable conductivity, which can to other equipment.
18AWG cable,double 0.75mm² wire, thicker wire diameter , allowing current equipment to pass (Does not support data transfer)
Easy to use,the end of the DC5525 power cord has been pre-stripped and tined, which is easy to solder and install
Specifications
Wire specification: 18AWG/0.75mm² /OD4.8mm
Wire length: approx 25cm/9.84in (tined on the tail, red wire to the positive black wire to the negative

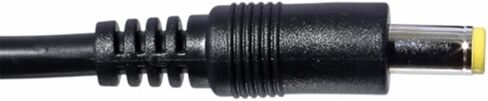

head- size approx: outer diameter 5.5mm, inner diameter 2.5mm, 11mm
Power polarity-: internal positive and external negative
Load power: 120W (12V10A)
Plug Type: Straight / Curved-
Package Includes:
1 PC x DC5525 Cable
Note:
Due to the problems of lighting effects and angles, there will be certain tolerances in the product, please understand.
Please allow 0-2mm error due to manual measurment.
USB input only supports 5V, output 5V, can only be charged-, and cannot transmit data.
