Deluxe Kit

KWD 65
Brand
modsaw
Weight
1.6 kg
StyleDeluxe Kit
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
– 1 +

Special Features

  • modsaw - Standard Kit - a 3D printed 3 in 1 tool for the DIY archer
  • Includes rear rest that allows you to cut carbon to carbon measurement
  • Spin your arrows using our high quaility bearings

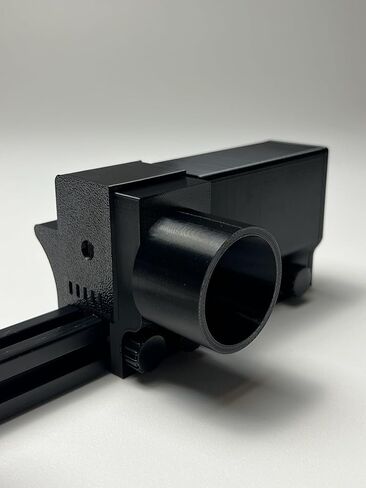

  • Suck up harmful carbon dust using the included vacuum attachment
  • Setup - 1. It is recommended to attach the saw to a workbench using the two screw holes on each end of the saw. 2. It is recommended to attach a vacuum to the vacuum attachment in order to collect the carbon dust.

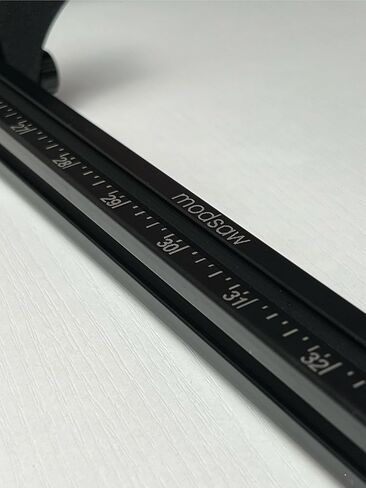

  • Saw - 1. Adjust the rear rest on the saw by sliding the measurement indicator to the desired length you need to cut your arrows. Tighten the thumbscrew. 2. Adjust the middle rest to be centered between the saw blade and the rear rest. Tighten the thumbscrew. 3. Turn on the saw and slowly roll the arrow into the blade. 4. After cutting the carbon arrow shaft, move the arrow to the other side of the saw and rest it on the bearings.

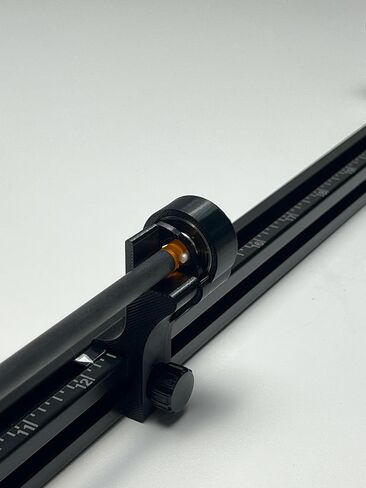

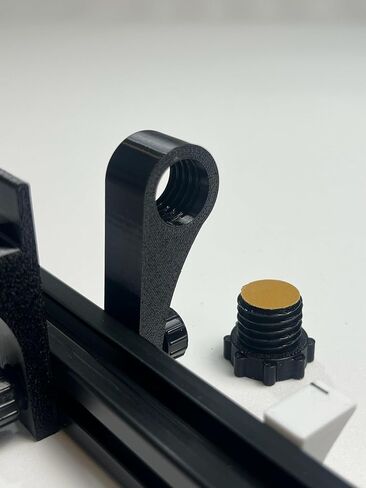

  • Square - 1. After placing the arrow on the bearings, use gentle downward and forward force, rotate the arrow in the bearings while pushing the cut end into the included sandpaper post. This will perfectly square the cut end of the arrow and remove any carbon burs or dust. 2. Dry fit your inserts and tips into the newly squared shaft.

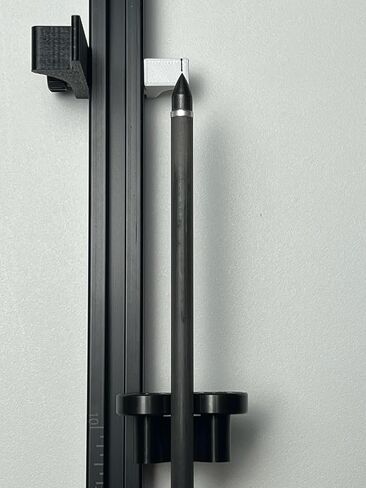

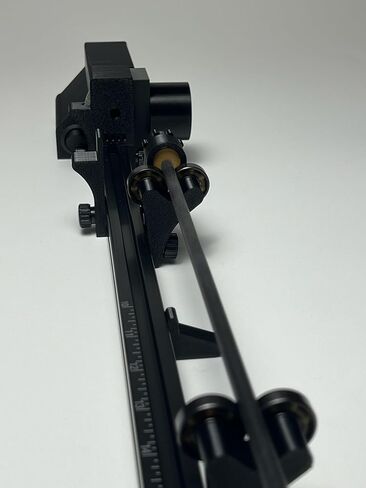

  • Spin - 1. Place your arrow back on the bearings after dry fitting your inserts and screwing in your tip 2. While the arrow is spinning, look down from the top of the arrow aligning the tip of your field point or broadhead with the spin indicator. 3. As the arrow spins, if there is any wobble remove the arrow from the spinner and rotate the insert slightly, continue doing this until you find the spine of the arrow, this is where the tip stays perfectly still while spinning.

Description

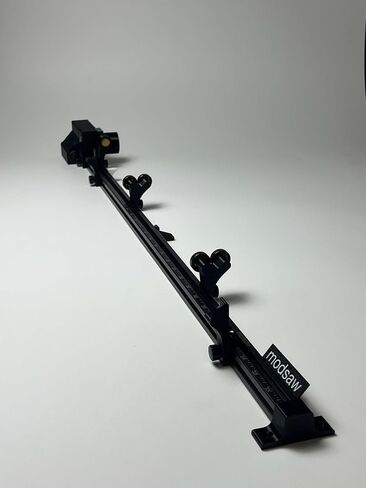

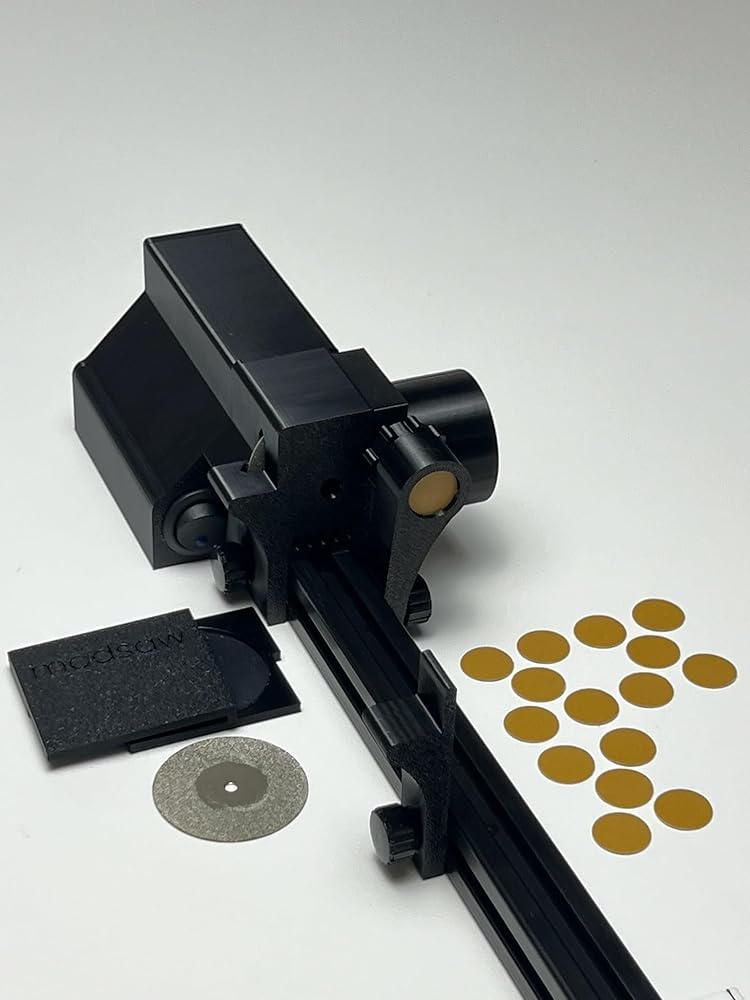

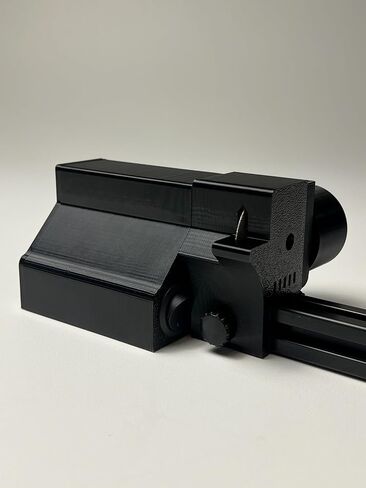

This is our base model hobbyist saw. It allows you to cut your arrows carbon to carbon by pulling your nock out and comes with standard steel ball bearings for spinning your arrows. - Motor unit with one installed diamond coated blade - Squaring post with one pre-installed sandpaper disc, with 5 additional sandpapers included in the box - A wobble indicator to test for broadhead wobble - A set of steel bearing posts to spin your arrow on - A stabilization leg to stabilize the saw while spinning your arrow - An anchor tab that can be placed anywhere along the rail to attach your saw to a workbench - A mid rest to keep your arrow from flexing while cutting - A carbon to carbon rear rest to accurately measure your arrow length while cutting - An endcap with mounting points to attach your saw to a workbench modsaw - An all-in-one solution for building carbon arrows yourself. This modular arrow saw is designed and built in Texas and is everything you need to build your own carbon arrows. Stop relying on others to build your arrows and be confident in what you are shooting! This single unit comes with everything you need to get started including a saw, a squaring post, a arrow spinner, a vacuum attachment, and mounting points to hold the saw to your workbench. Simply follow the steps below to get professional quality arrows at home or in your shop. If you have any questions about purchasing or operating, we are here and happy to help! Specs: Overall Length: (38 inches) Maximum Length you can cut an arrow: (33 3/8 inches) Motor Specs: 11,000rpm Overall Width: 3 1/2 inches Overall Height: 3 inches Vacuum Attachment Size: (1 1/4 inch) or (1 3/4 inch) Saw Blade: 1.5 inch Diamond Coated Cutoff Wheel Sandpaper Info: 400 grit (Each saw comes with 5 sandpaper pieces) Power Adapter is included
