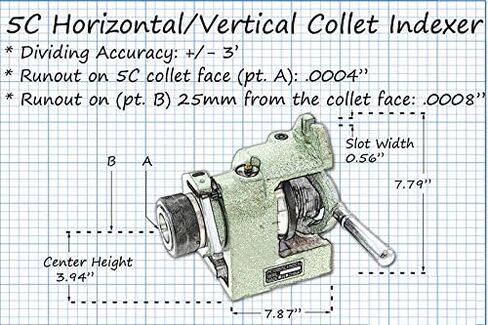

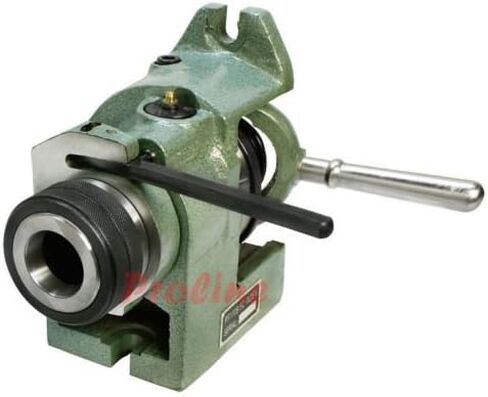

Proline Amazon Vertical Horizontal 5C Collet Spin Index Fixture Milling .0004" Spindle thread Chuck for Milling Machine

KWD 123
Weight
5.9 kg
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
– 1 +

Special Features

  • Vertical horizontal 5C collet spin index fixture milling
  • Spindle thread: 2-1/4 -8 TPI ; Spindle accuracy: .0004" TIR
  • Dividing spindle concentricity: .0004" ; Cylindrical center bore (per 1") concentricity: .0008"
  • Lateral offset of center slot of dividing spindle: .0008" ; Thread spindle is hardened and ground
  • Quantity: 1 ; Unit weight: 13 LBS

Description

-Center slot to dividing spindle concentricity: .0008"
-Spindle center line parallelism: .0008"
-Base to face Squareness: .0008"
-Convenient ratchet mounted on front of spindle provides rapid indexing
-Utilizes 5C Collets
-Single lever action activates the indexing mechanism
-Precision ground index plate has 24 indexing locations in 15
