Specification
Video and Audio
IP Video Input ：16-ch，Up to 32 MP resolution*: The NVR supports up to 8-ch 32 MP/24 MP IP video inputs.
Incoming Bandwidth： 256 Mbps
Outgoing Bandwidth： 256 Mbps
HDMI Output： 8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
VGA Output ：1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 ×768/60Hz
Video Output Mode： HDMI/VGA independent output
CVBS Output： 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
Audio Output： 1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio： 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
Decoding
Decoding Format： H.265+/H.265/H.264+/H.264
Recording Resolution：32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF *: The NVR supports up to 8-ch 32 MP/24 MP IP video inputs.
Synchronous Playback ：16-ch
Decoding Capability： 2-ch@32 MP (30 fps) + 2-ch@8 MP (30 fps)/10-ch@8 MP (30 fps)/20-ch@4 MP (30fps)/40-ch@1080p (30 fps)
Dual-Stream Recording： Support
Stream Type： Video, Video & Audio
Audio Compression ：G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2
Network
Remote Connection ：128
Network Protocol： TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP,UPnP, HTTP, HTTPS
Network Interface： 2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
Auxiliary Interface
SATA ：2 SATA interfaces，Capacity Up to 16 TB capacity for each HDD
Alarm In/Out： 4/1
USB Interface Front panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0
General
Power Supply： 12 VDC, 3.33 A
Consumption： ≤ 15 W (without HDD)
Working Temperature： -10 °C to 55 °C (14 °F to 131 °F)
Working Humidity： 10% to 90%

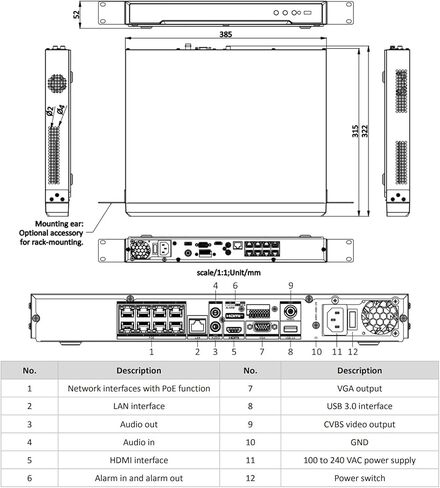

Dimension： (W × D × H) 385 × 315 × 52 mm
