Easy, convenient, safe, reliable, and fast
Specification:
Condition: 100% Brand New
Item Type: Lathe Chuck
Model Specification: K11 80
Chuck Type: Three-jaw chuck
Chuck Structure: Large hole chuck
Power Type: Manual
Chuck Diameter: Approx. 80mm / 3.15in
Chuck Aperture: Approx.16mm / 0.63in
Clamping Size Range: Approx. 2 ~ 22mm / 0.1 ~ 0.9in
Supporting Size Range: Approx. 25 - 70mm / 1 - 2.8in
Centering Accuracy: 0.07 (mm)
Applicable Machine Tool: Lathe
Material: Plate body cast iron, steel for jaw
Limit RPM: 4800r/min
Maximum Input torsion: 40N.m
Note:
When the chuck rotating bevel gear rotates the coil wire, it will be tighter, and the tight rotation is not a quality problem.
The jaws can be moved back and forth after installation, which is not a quality problem

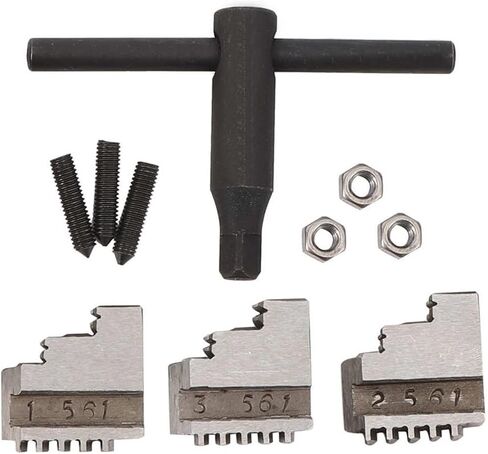

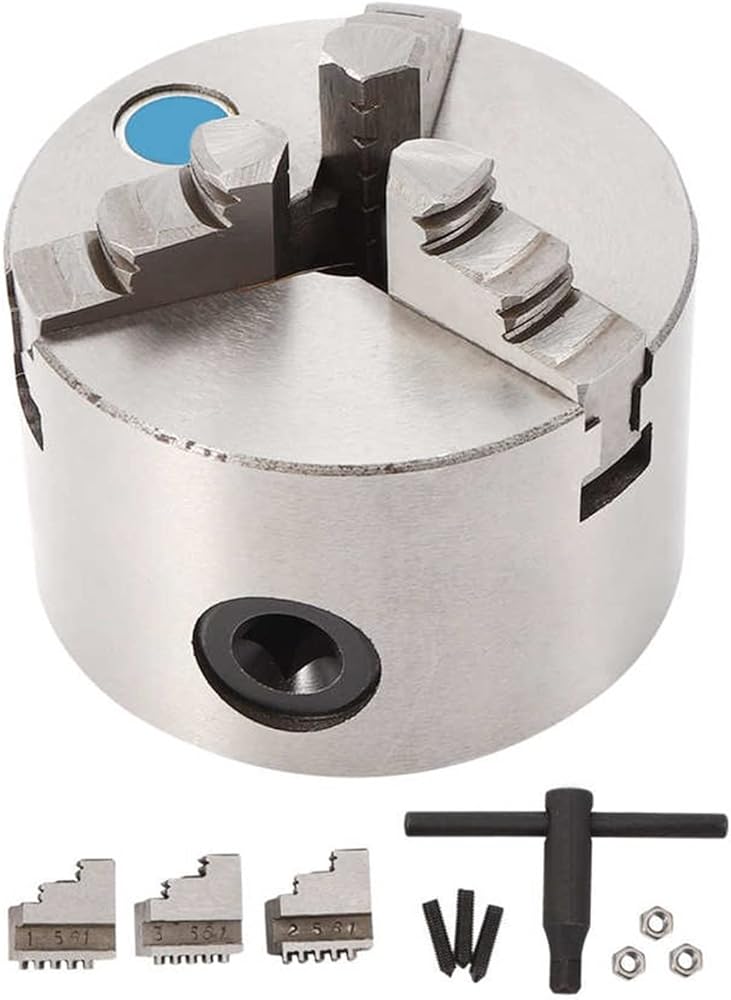

Package List:
1 x Lathe Chuck
3 x Jaw
1 x Chuck Wrench
3 x Set of Screw
Note:
1. Cleaning in the screw hole of the chuck before installation
2. Regular cleaning and lubrication should be performed during use to maintain the accuracy of the chuck and prolong its service life
3. After the chuck is clamped, for not hit the workpiece with a hammer to prevent the accuracy of the chuck from being affected and the parts from being damaged.
