Product Description:

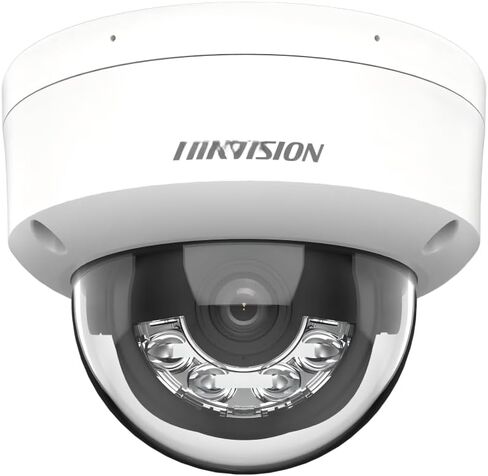

Upgrade your security system with the Ⲏikvision DS-2CD1183G2-LIUF 8MP Smart Hybrid Light Dome Camera. Designed for both indoor and outdoor use, this 4K surveillance camera combines cutting-edge technology with rugged reliability.

Why Choose This Camera?
4K Clarity: Monitor every detail with 8MP resolution, ideal for identifying faces, license plates, or critical incidents.
Smart Hybrid Light: Switch between color night vision and IR mode automatically for uninterrupted coverage.
AI-Powered Alerts: Focus on human and vehicle activity, minimizing false triggers from animals or shadows.
Cost-Efficient Storage: H.265+ compression reduces storage needs, while the SD card slot (up to 512GB) ensures local backup without cloud fees.
All-Weather Durability: With IP67 and IK08 ratings, this camera withstands rain, dust, and physical tampering.

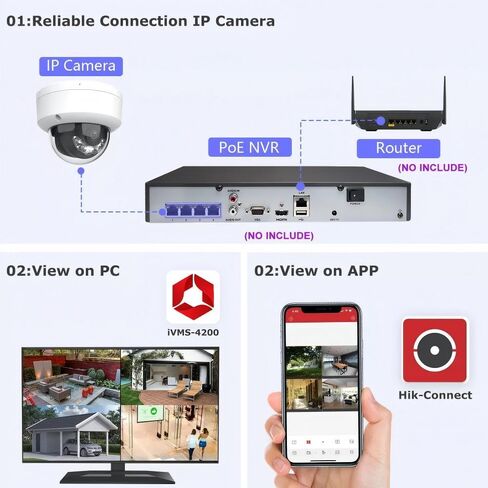

Easy Integration: Compatible with Hikvision NVRs and most third-party systems for seamless setup.

Ideal For:
Home security (driveways, gates, garages)
Retail stores, warehouses, and offices
Parking lots, perimeter monitoring, and public spaces

Technical Specifications:
Camera
Image Sensor: 1/2.7" Progressive Scan CMOS
Max. Resolution: 3840 × 2160
Min. Illumination: Color: 0.01 Lux @ (F2.0, AGC ON),B/W: 0 Lux with IR
Shutter Time: 1/3 s to 1/100,000 s
Day & Night: IR cut filter
Angle Adjustment: Pan: 0° to 355°,tilt: 0° to 75°,rotate: 0° to 355°

Lens
Lens Type: Fixed focal lens, 2.8 mm
Focal Length & FOV: 2.8 mm, horizontal FOV 113°, vertical FOV 62°, diagonal FOV 134°
Lens Mount: M12
Iris Type: Fixed
Aperture: F2.0

DORI
DORI: 2.8 mm, D: 79 m, O: 31 m, R: 15 m, I: 7 m

Illuminator
Supplement Light Type: IR,White Light
Supplement Light Range: Up to 30 m
Smart Supplement Light: Yes
IR Wavelength: 850 nm

Video
Main Stream
50 Hz: 12.5 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 15 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

Sub-Stream
50 Hz: 12.5 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 15 fps (1280 × 720, 640 × 480, 640 × 360)

Video Compression
Main stream: H.265+/H.265/H.264+/H.264,
Sub-stream: H.265/H.264/MJPEG

Video Bit Rate: 32 Kbps to 16 Mbps
H.264 Type: Baseline Profile,Main Profile,High Profile
H.265 Type: Main Profile
Bit Rate Control: CBR,VBR
Region of Interest (ROI): 1 fixed region for main stream
Scalable Video Coding (SVC): H.264 and H.265 encoding

Audio
Audio Type: Mono sound
Environment Noise Filtering: Yes
Audio Sampling Rate: 8 kHz/16 kHz
Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)

Network
Security: Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
Simultaneous Live View: Up to 6 channels
API: Open Network Video Interface (Profile S, Profile T, Profile G (only -F model supports)),ISAPI,SDK,Hik-Connect
Protocols: TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP, UPnP
User/Host: Up to 32 users
3 user levels: administrator, operator, and user
Client: iVMS-4200,Hik-Connect
Web Browser: Plug-in required live view: IE 10, IE 11,
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Wide Dynamic Range (WDR): 120 dB
SNR: ≥ 52 dB
Day/Night Switch: Day,Night,Auto,Schedule
Image Enhancement: BLC,HLC,3D DNR
Image Settings: Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Privacy Mask: 4 programmable polygon privacy masks

Interface
Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Built-in Microphone: Yes
Reset Key-F: Yes

Event
Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception Linkage: Upload to FTP/memory card (-F), send email, notify surveillance center, trigger recording (-F), trigger capture

General
Power: 12 VDC ± 25%, 0.5 A, max. 6 W,Ø5.5 mm coaxial power plug,reverse polarity protection,
PoE: IEEE 802.3af, Class 3, max. 7.5 W
Material: Metal & Plastic
Dimension: Ø121.5 mm × 97.6 mm (Ø4.78" × 3.84")
Package Dimension: 150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
Weight: Approx. 550 g (1.2 lb.)
With Package Weight: Approx. 800 g (1.8 lb.)
Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
General Function: Heartbeat,anti-banding,mirror,password protection,password reset via email
