1. CCTV Lens: With 6mm‑60mm F1.6 zoom CCTV lens, high resolution CCTV lens can all resolutions of megapixel cameras, IP cameras and high resolution cameras.
2. High Definition: Adopting 1080P HD CMOS sensor with 16 million pixels, the image effect is vivid and clear with high definition picture quality.
3. Application: Widely used in pattern recognition, industrial inspection, medical microscopy, traffic management and machine .
4. Multilingual: Support English, Chinese, Japanese, French, German, Italian, Korean, Turkish, Russian, and to meet your different needs.
5. Superior Video Output: The camera ensures excellent video output quality, making it suitable for professional photography and video recording.
Spec:
Item Type: HD Video Output Camera
Material: Aluminium alloy
Model: HY-5199-6-60 mm
Effective Pixels: 16 megapixel CMOS IMX sensor
Size: 2.85μm x 2.85μm
Video Output: Full HD 1080p (for High Definition Multimedia Interface)
Image Resolution: 5640x4232(for High Definition Multimedia Interface)
Video Recording: 1080p (suitable for High Definition Multimedia Interface)
Image format: jpeg
Lens: C/CS
Resolution: 1920x1080@60fps (for High Definition Multimedia Interface)
Memory Card Interface: Maximum 64G (without)
Digital Zoom: 4x digital zoom
AWB: WB Color correction/Auto/Manual
The R.G.B value is set independently
Exposure: Automatic/manual, AE value can be set
Reticle: 8, color, width and position can be set
Scale Marking Line: 2
Dotted Line: 2 lines. Color, width, position can be set
Sharpness Contrast Enhancement: Supported
Mono Negative: Supported
Mirroring: Horizontal and vertical mirroring
Languages: English, Chinese, Japanese, French, Germany, Italy, Korea, Turkey, Russia
6mm-60mmF1.6 lens specifications:
Length: 6-60mm/0.23in-2.36in
Image Format: 1/3in CCD
Angle of View: 51.5°-6°
Aperture: F1.6
Outer Diameter: Approx: 0./11.81in
Mounting Thread: CS
Rear Length: 12.526
Operating Temperature: -20° - +60°
Lens Size: Approx: 39x70mm/1.53x2.75in
Remote Control Battery Type: CR2032 x1 (without)
How to Use:
Use the HD Multimedia Interface cable to connect the product directly to the monitor (cannot connect to the computer)

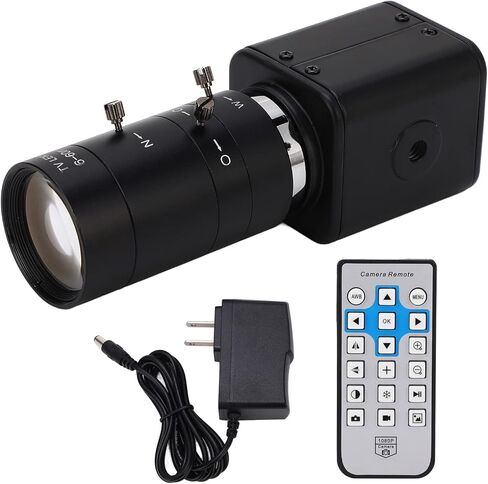

Package List:
1 xCamera
1 x Lens 1 x Switching

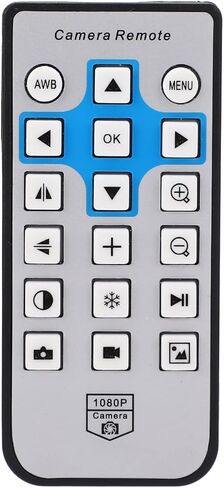

1 x Remote Control
1 x Power Adapter
1 x User Manual
