Drives

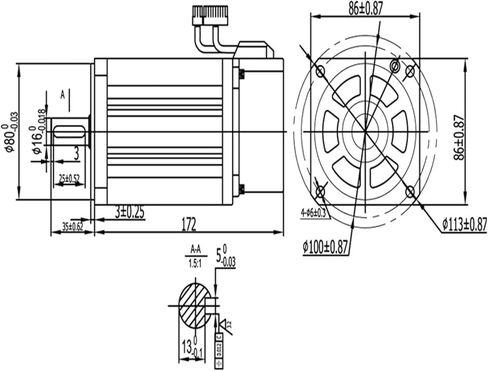

SZGH-09075BC is 90mm flange, 750W servo motor, 3.5NM, 2000RPM, 220VAC,

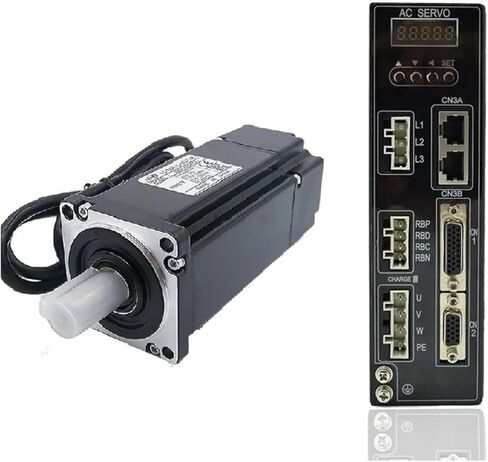

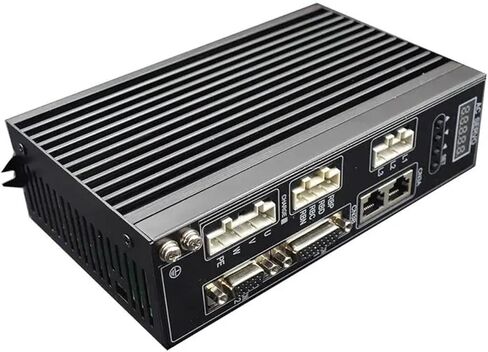

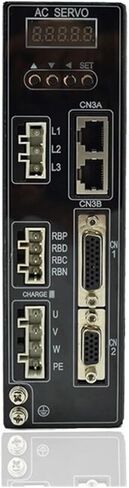

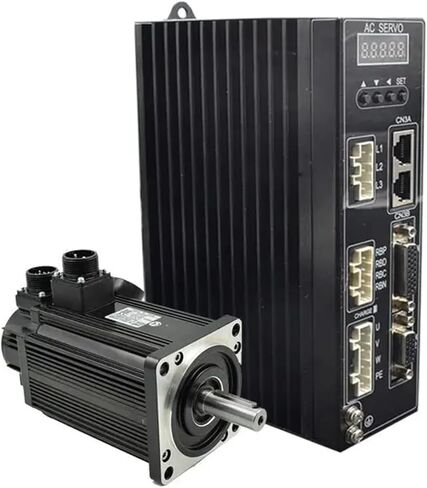

The matching servo driver is SZGH-SD2010, single-phase or three-phase 220VAC, and can support RS485 Modbus function.
Product Name

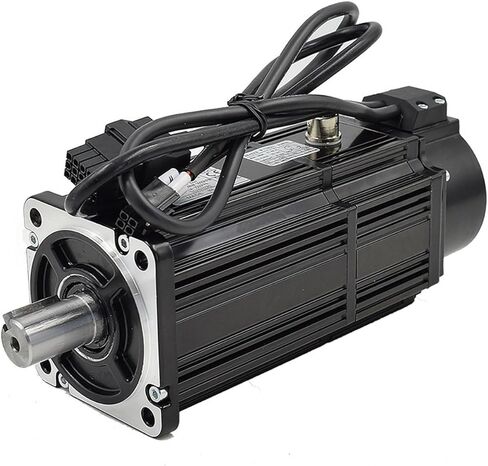

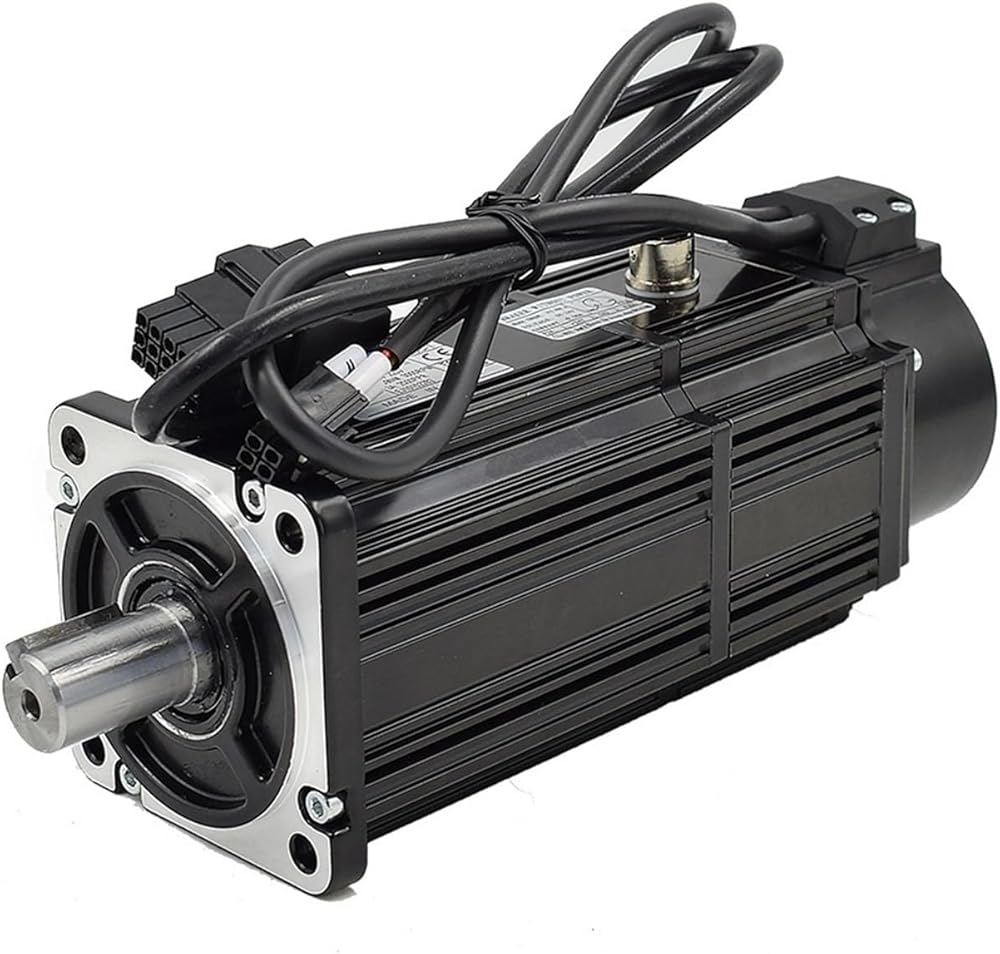

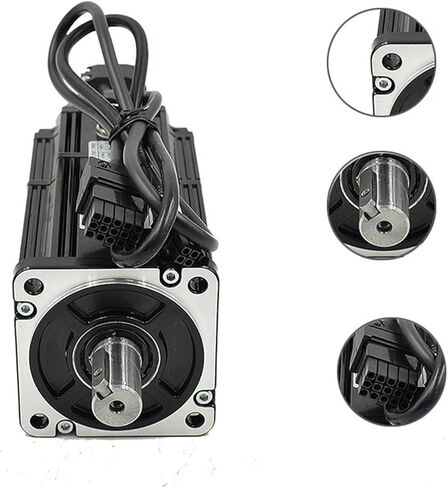

SZGH-09075BC 750W servo motor
Rated power 750W
Rated current 3A
Rated voltage 220V
Rated speed 2000 rpm
Encoder resolution 2500PPR
Rated torque 3.5 Nm
Peak torque 10.5 Nm
Rotor inertia 0.0034kg.m2
