Drives

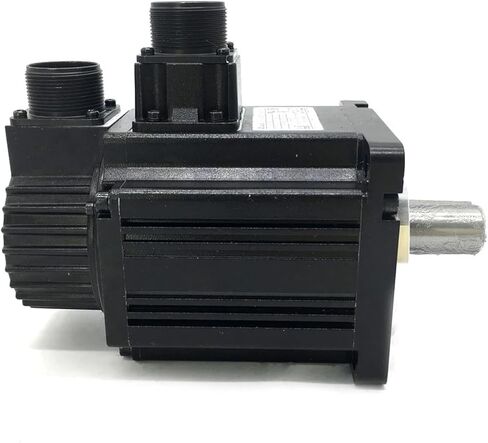

Motor specifications

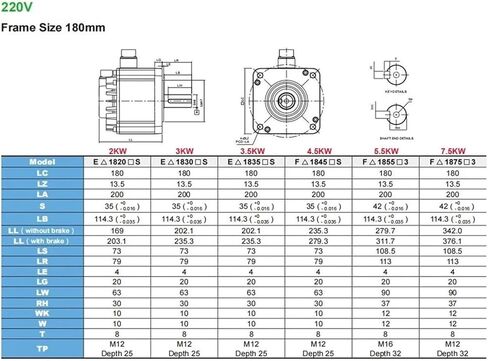

Model: ECMA-F11830RS Power: 3KW Motor flange: 180 mm
Rated torque: 19.1 Nm Maximum torque: 57.29 Nm Rated speed: 1500 r/min
Rated current: 19.4A Maximum current: 58.2A
Maximum radial shaft load: 1470N
Max. Thrust shaft load: 490 N Vibration tolerance: 2.5 G
